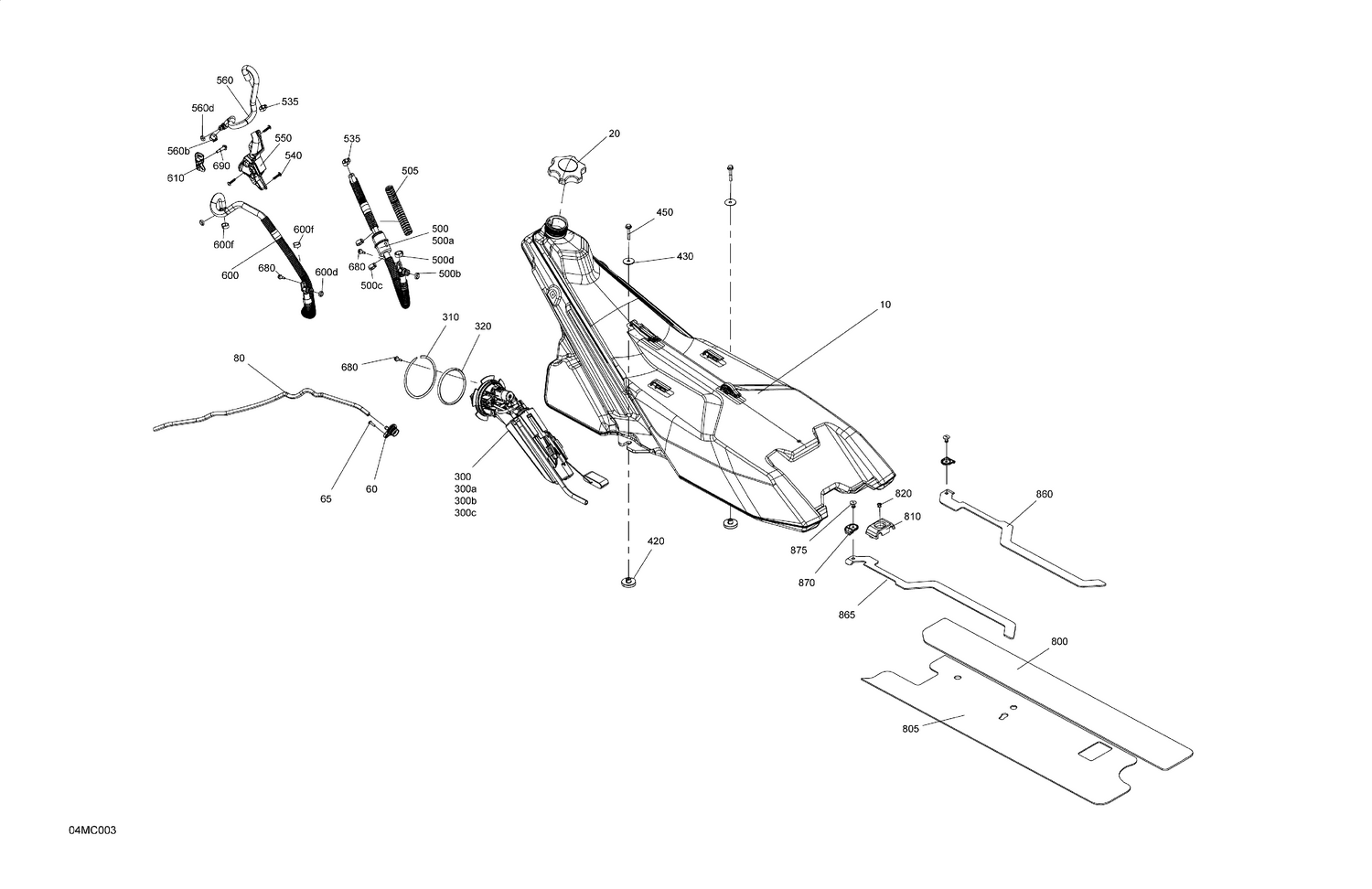

02- Engine - Fuel
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034078 | Fuel Tank |
| 20 | 513034170 | Fuel Tank Cap This part replaces 513033943. |
| 60 | 513033849 | Check Valve |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 300a | 415130508 | Filter This part replaces 415130069. |
| 300b | 415130726 | Fuel Level Sensor This part replaces 415130087. |
| 300c | 415130507 | Canister |
| 310 | 513033798 | Circlip |
| 320 | 513033862 | O-Ring |
| 420 | 513034085 | Bushing |
| 430 | 503193995 | Washer |
| 450 | 207663544 | Hex. Flange Screw M6 X 35 |
| 500a | 513034047 | Fuel Filter |
| 500b | 513033668 | O-Ring |
| 500c | 293650125 | Oetiker Clamp |
| 500d | 293650053 | Crimp Clamp |
| 505 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 535 | 293650047 | Crimp Clamp, 15.3-706R |
| 540 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 550 | 513034051 | Hose Guide |
| 560b | 293650053 | Crimp Clamp |
| 560d | 513033668 | O-Ring |
| 600d | 513033668 | O-Ring |
| 600f | 293650053 | Crimp Clamp |
| 610 | 513033903 | Bracket |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 690 | 250001018 | Hex. Flange Screw M5 X 28 S.Grip |
| 800 | 513033913 | Insulated Foam |
| 805 | 513033914 | Insulated Foam |
| 810 | 513033826 | Tank Guide |
| 820 | 390402200 | Pop Rivet 3/16" |
| 860 | 513033915 | Foam |
| 865 | 513033916 | Foam |
| 870 | 513033917 | Retainer Plate |
| 875 | 293150104 | Pop Rivet 3/16" |
