Home / BRP / EVINRUDE / 2000 / 200 / E200FCXSSC FFI, Elec Start, TNT, 25 IN shaft, wht, cntr rotate 2000 / 01- Cooling System

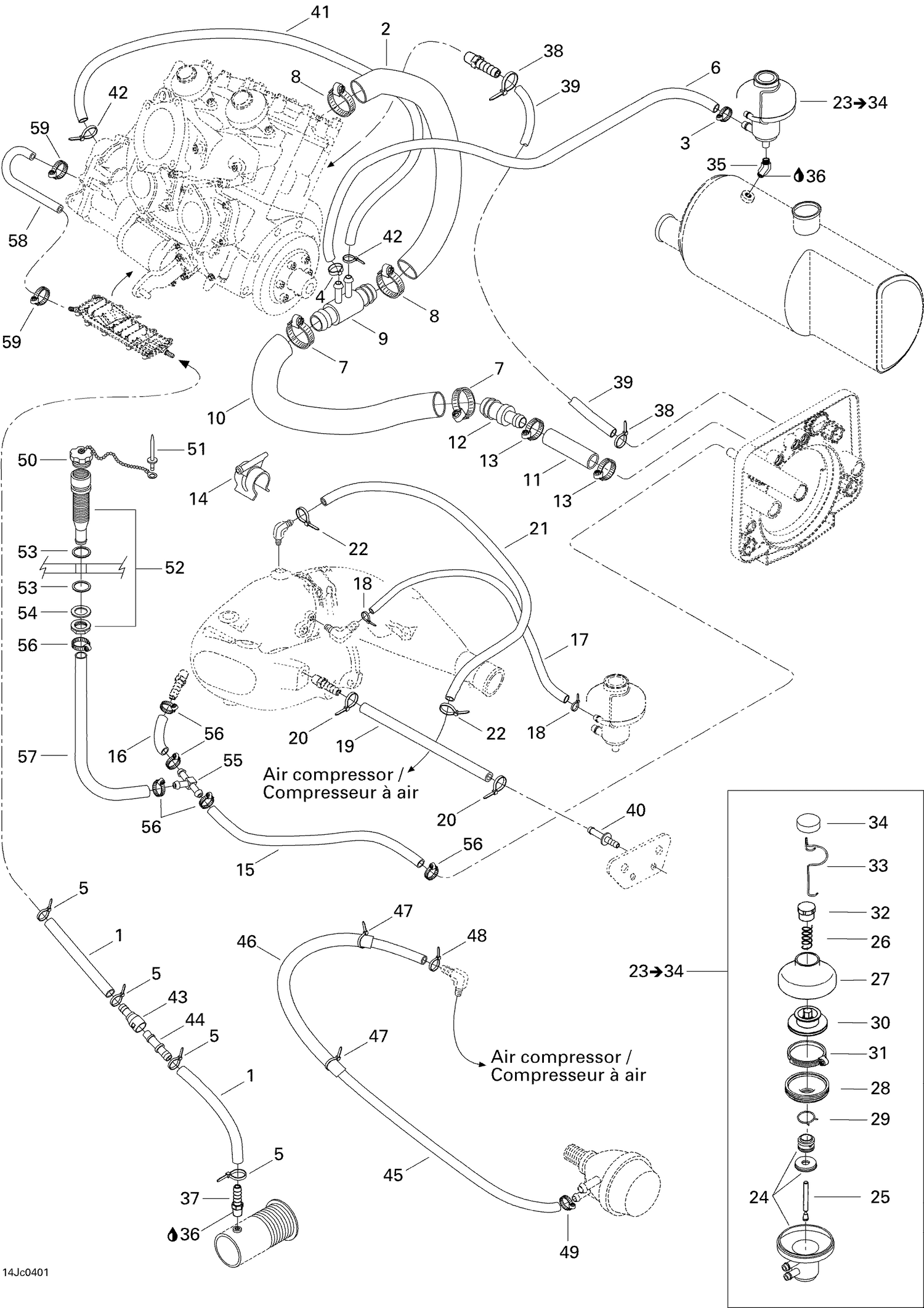

01- Cooling System

01- Cooling System

Parts (57)

RefPart NumberDescription
1 219704412 Polyurethane Hose, 8 Mm 3000Mm Long
2 276000098 FORMED HOSE - Call your local BRP dealership
3 293650171 Tridon Gear Clamp This part replaces 293650129.
4 293650025 Oetiker Gear Clamp
5 293750001 Tie Wrap 94 mm
6 275500548 HOSE 5/16 - Call your local BRP dealership
7 293650051 Tridon Gear Clamp
8 293650051 Tridon Gear Clamp
9 293710102 DOUBLE FITTING - Call your local BRP dealership
10 219704361 Hose 19.0Mm. 2000Mm Long
11 219704394 Was 276000001 Hose 12.5 mm
12 204130060 Reducer fitting
13 293650172 Tridon Gear Clamp This part replaces 293650130.
14 278000559 COLLAR SUPPORT - Call your local BRP dealership
15 219704394 Was 276000001 Hose 12.5 mm
16 219704394 Was 276000001 Hose 12.5 mm
17 219704360 Hose 6 Mm 15000Mm Long
18 293750001 Tie Wrap 94 mm
19 219704360 Hose 6 Mm 15000Mm Long
20 293750001 Tie Wrap 94 mm
21 219704412 Polyurethane Hose, 8 Mm 3000Mm Long
22 293750001 Tie Wrap 94 mm
24 Not Available As Spare Part - Gauge housing
25 274000423 FEEDING ROD - Call your local BRP dealership
26 274000382 SPRING 44 MM - Call your local BRP dealership
27 420911552 Valve Cover
28 420260721 Bellow
29 420838190 SPRING CLAMP - Call your local BRP dealership
30 Not Available As Spare Part - Exhaust valve
31 293650065 Rivalair Clamp
32 420241221 Adjuster Screw
33 420838083 SPRING CLIP - Call your local BRP dealership
34 274000903 Cover Screw
35 293700033 MALE CONNECTOR - Call your local BRP dealership
36 219704454 Was 293800013 Loctite 56765
37 293710017 MALE CONNECTOR - Call your local BRP dealership
38 293750001 Tie Wrap 94 mm
39 219704412 Polyurethane Hose, 8 Mm 3000Mm Long
40 291000306 BLEED FITTING - Call your local BRP dealership
41 219704412 Polyurethane Hose, 8 Mm 3000Mm Long
42 293750001 Tie Wrap 94 mm
43 275500436 QUICK FEMALE FITTING - Call your local BRP dealership
44 275500435 QUICK MALE FITTING - Call your local BRP dealership
45 219704412 Polyurethane Hose, 8 Mm 3000Mm Long
46 219704407 Tubing 10 MM 1000MM Long
47 293750001 Tie Wrap 94 mm
48 293750002 Tie Wrap 142 mm
49 293650170 Tridon Gear Clamp This part replaces 293650128.
50 293000055 PLUG - Call your local BRP dealership
51 293150023 RIVET_POP 1/8 X ,625 - Call your local BRP dealership
52 293710081 FITTING - Call your local BRP dealership
53 293250028 GASKET - Call your local BRP dealership
54 293050003 WASHER - Call your local BRP dealership
55 293710053 T-FITTING - Call your local BRP dealership
56 293650172 Tridon Gear Clamp This part replaces 293650130.
57 219704394 Was 276000001 Hose 12.5 mm
58 275500548 HOSE 5/16 - Call your local BRP dealership
