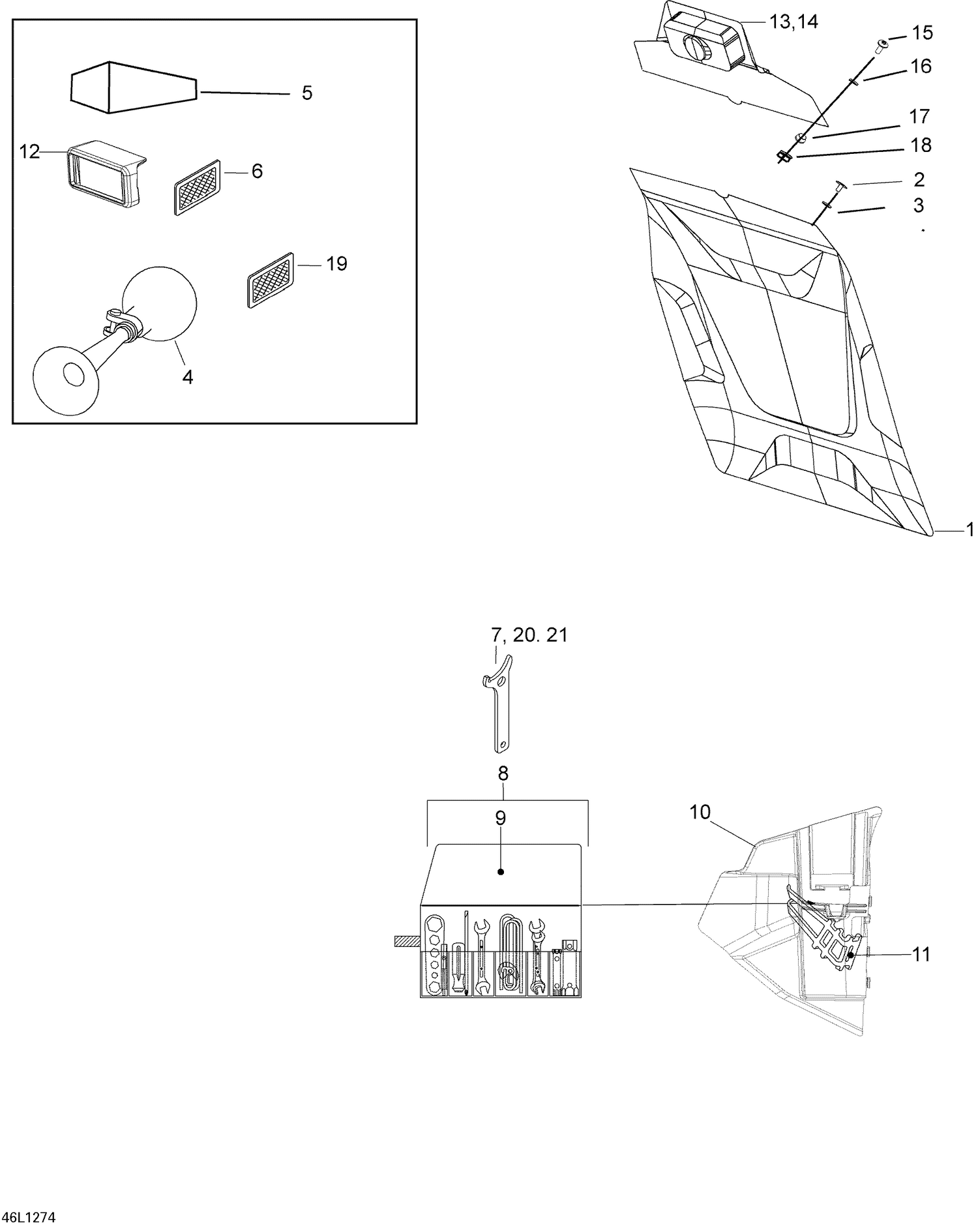

09- Utilities
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000919 | Snow guard |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 234052600 | Flat Washer 5 mm, Stainless |
| 4 | 549011291 | Horn |
| 5 | 520000718 | RH Front Reflector |
| 5 | 520000719 | LH Front Reflector |
| 6 | 21118 | Reflector (Bright) |
| 7 | 529000035 | Adjustement Wrench |
| 9 | Not | Available As Spare Part - Tool box |
| 10 | 520000842 | Tool Kit Rack |
| 11 | 570069700 | LATCH - Call your local BRP dealership |
| 12 | 520000871 | Reflector Support |
| 13 | 520000920 | Rear light cover |
| 14 | 520000921 | Light cover pad |
| 15 | 250000762 | Torx-Truss Screw M5 x 25 This part replaces 250000300. |
| 16 | 234052490 | WASHER M5 - Call your local BRP dealership |
| 17 | 705014429 | Stopper_Rubber This part replaces 705003666. |
| 18 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 19 | 21126 | Reflector red |
| 20 | 417127044 | Belt Installation Tool |
