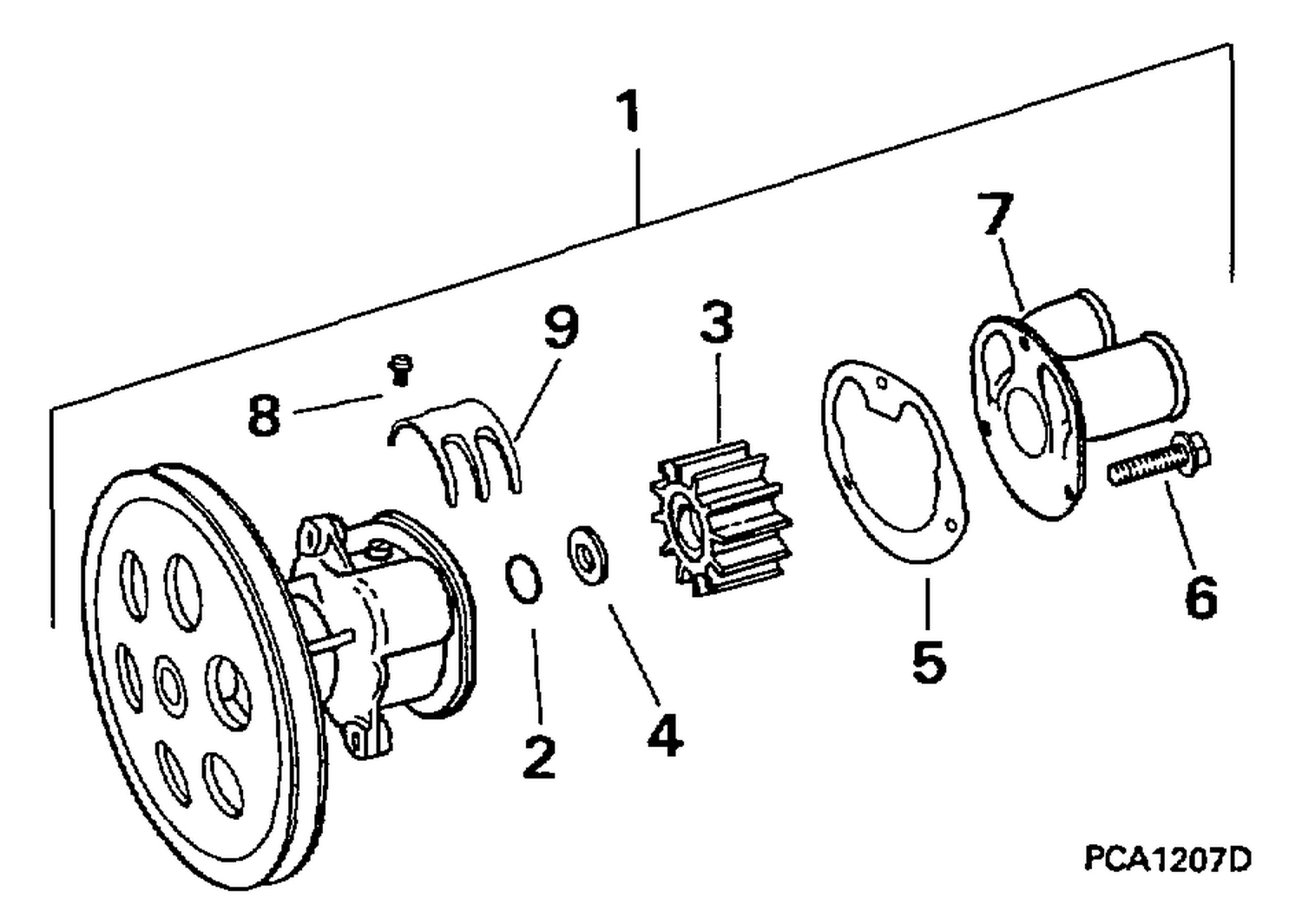

WATER PUMP — Parts Catalog

Ref	Part Number	Description
1	3857794	WATER PUMP This part replaces 3851982.
2	0955976	O-RING
3	3862281	Impeller This part replaces 3856039.
4	0827247	SEAL, Driveshaft
5	3855782	GASKET, Plate to body
6	0841693	SCREW, Body to housing
7	3851697	END COVER
8	0841694	SCREW, Cam
