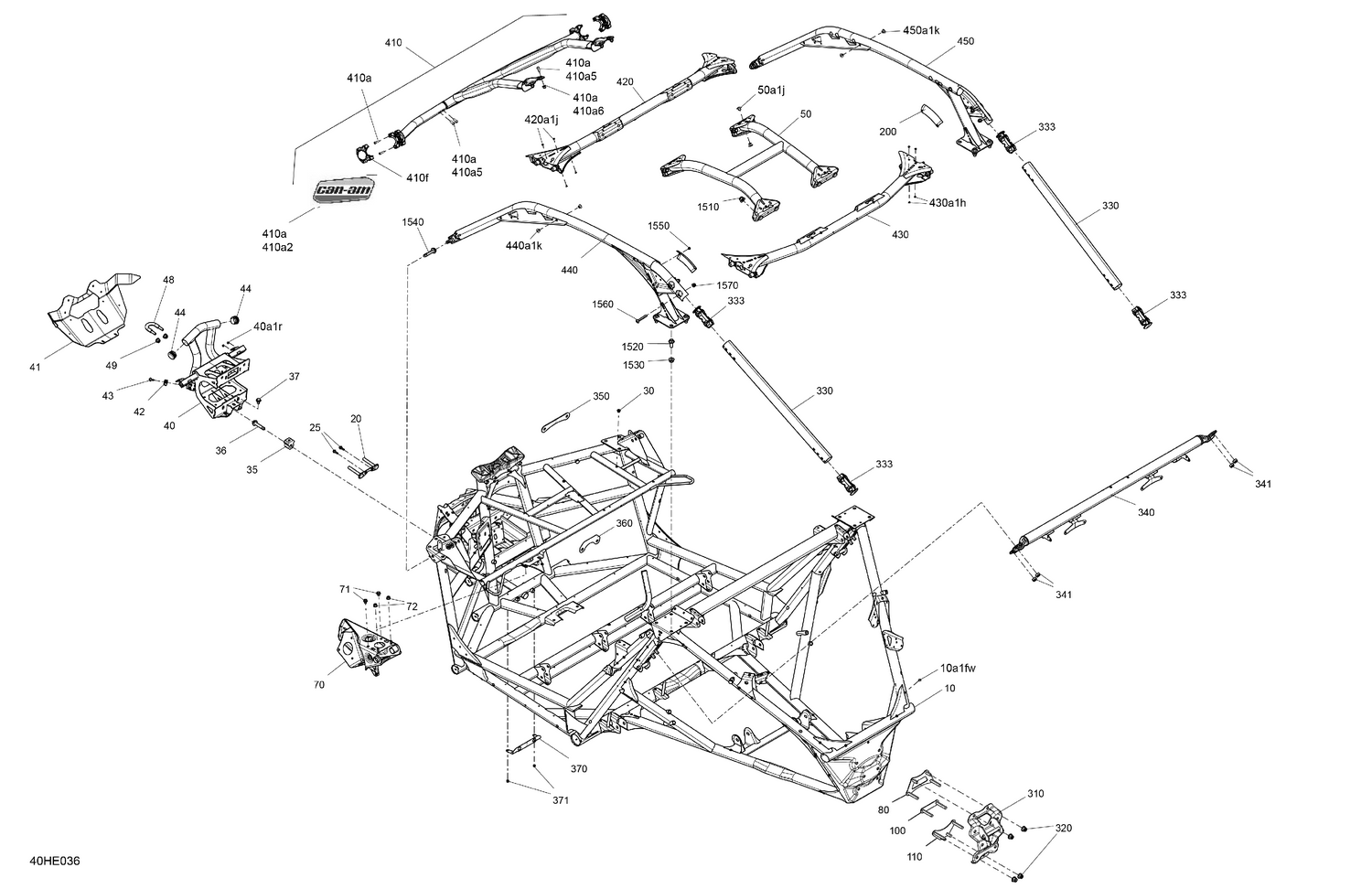

| Ref | Part Number | Description |
|---|
| 10 |
715008510 |
Black, Frame Ass'y |
| 10a1fw |
293150293 |
Pop Rivet 3/16 X ,425 |
| 20 |
705211898 |
Front Plate |
| 25 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 30 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 35 |
705206992 |
Bumper Link |
| 36 |
250000857 |
Flange Screw M12 X 60 |
| 37 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 40 |
715009854 |
Legion Red, Front Bumper Ass'y |
| 40a1r |
293150293 |
Pop Rivet 3/16 X ,425 |
| 41 |
715006996 |
Front Master Plate |
| 42 |
250100198 |
Panel Nut M6 X 1.0 |
| 43 |
250000722 |
Torx Screw M6 X 20 |
| 44 |
705202455 |
Cap |
| 48 |
705212138 |
Deep Black, Flange |
| 49 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 50a1j |
293150293 |
Pop Rivet 3/16 X ,425 |
| 70 |
705206924 |
DPS Support |
| 71 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 80 |
705211557 |
Rear Upper Plate |
| 100 |
705211558 |
Rear Central Plate |
| 110 |
705211556 |
Rear Lower Plate |
| 200 |
705211614 |
Legion Red, Upper Plate Kit |
| 310 |
715008517 |
Junction Plate Ass'y |
| 320 |
250001195 |
Elastic Flange Nut M12 |
| 330 |
705211512 |
Legion Red, Rear Pillar |
| 333 |
705210648 |
Sleeve |
| 340 |
705212141 |
Safety Belt Anchorage |
| 341 |
232521416 |
Elastic Stop Nut M12 |
| 350 |
705211552 |
Connecting Plate |
| 360 |
705210249 |
Retaining Plate |
| 370 |
705211560 |
Support |
| 371 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 410a2 |
704904566 |
Decal "Can-Am" |
| 410a5 |
229000057 |
Torx Truss M/S M8 X 20 |
| 410a6 |
229000122 |
Hex. Elastic Flange Nut M8 |
| 410f |
705205709 |
Black, Clamp |
| 420a1j |
293150293 |
Pop Rivet 3/16 X ,425 |
| 430a1h |
293150293 |
Pop Rivet 3/16 X ,425 |
| 440 |
715009810 |
Legion Red, LH Cage Ass'y |
| 440a1k |
293150293 |
Pop Rivet 3/16 X ,425 |
| 450 |
715009821 |
Legion Red, RH Cage Ass'y |
| 450a1k |
293150293 |
Pop Rivet 3/16 X ,425 |
| 1510 |
250001195 |
Elastic Flange Nut M12 |
| 1520 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
| 1530 |
250001195 |
Elastic Flange Nut M12 |
| 1540 |
250000857 |
Flange Screw M12 X 60 |
| 1550 |
293150300 |
Black, Pop Rivet 3/16 X ,425 |
| 1560 |
250000901 |
Torx Truss M8 X 65 |
