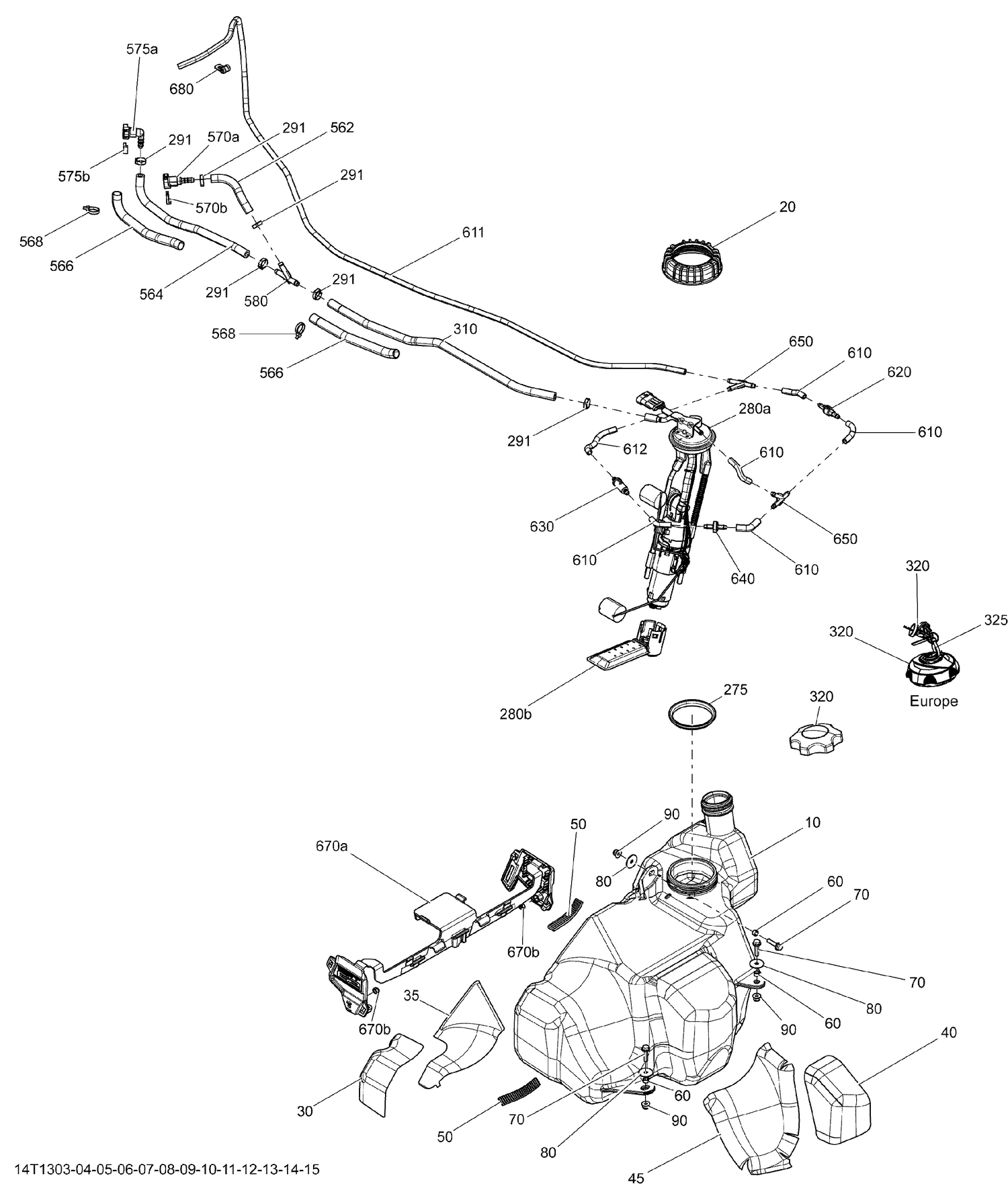

02- Fuel System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 709000328 | Fuel Pump Module Nut |
| 30 | 709000381 | Heat Reflective Sheet |
| 35 | 709000387 | Heat Reflective Sheet |
| 40 | 709001071 | Heat Reflective Sheet This part replaces 709000382. |
| 45 | 709000388 | Heat Reflective Sheet |
| 50 | 293830129 | RUBBER PAD - Call your local BRP dealership |
| 60 | 293900104 | Bushing |
| 70 | 207662544 | Hex. Flange Screw M6 X 25 |
| 80 | 224060251 | Washer |
| 90 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 275 | 709000208 | Seal |
| 280b | 709000389 | Fuel Pre-Filter Kit |
| 291 | 293650046 | Oetiker Clamp |
| 310 | 219704440 | Was 709000163 Fuel Line |
| 320 | 513033025 | Fuel Tank Cap |
| 562 | 219704440 | Was 709000163 Fuel Line |
| 564 | 219704440 | Was 709000163 Fuel Line |
| 566 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 568 | 293750002 | Tie Wrap 142 mm |
| 570b | 513033135 | Locking Clip |
| 575b | 513033135 | Locking Clip |
| 580 | 293710136 | Y-Fitting, 5/16'' |
| 610 | 219704410 | Polyurethane Hose 10000Mm Long |
| 611 | 219704410 | Polyurethane Hose 10000Mm Long |
| 612 | 219704410 | Polyurethane Hose 10000Mm Long |
| 620 | 513033469 | Check Valve |
| 630 | 709000330 | Filter |
| 640 | 275500398 | Check Valve |
| 650 | 293710059 | Y-Fitting |
| 670b | 232561600 | Hex. Elastic Stop Nut M6 |
