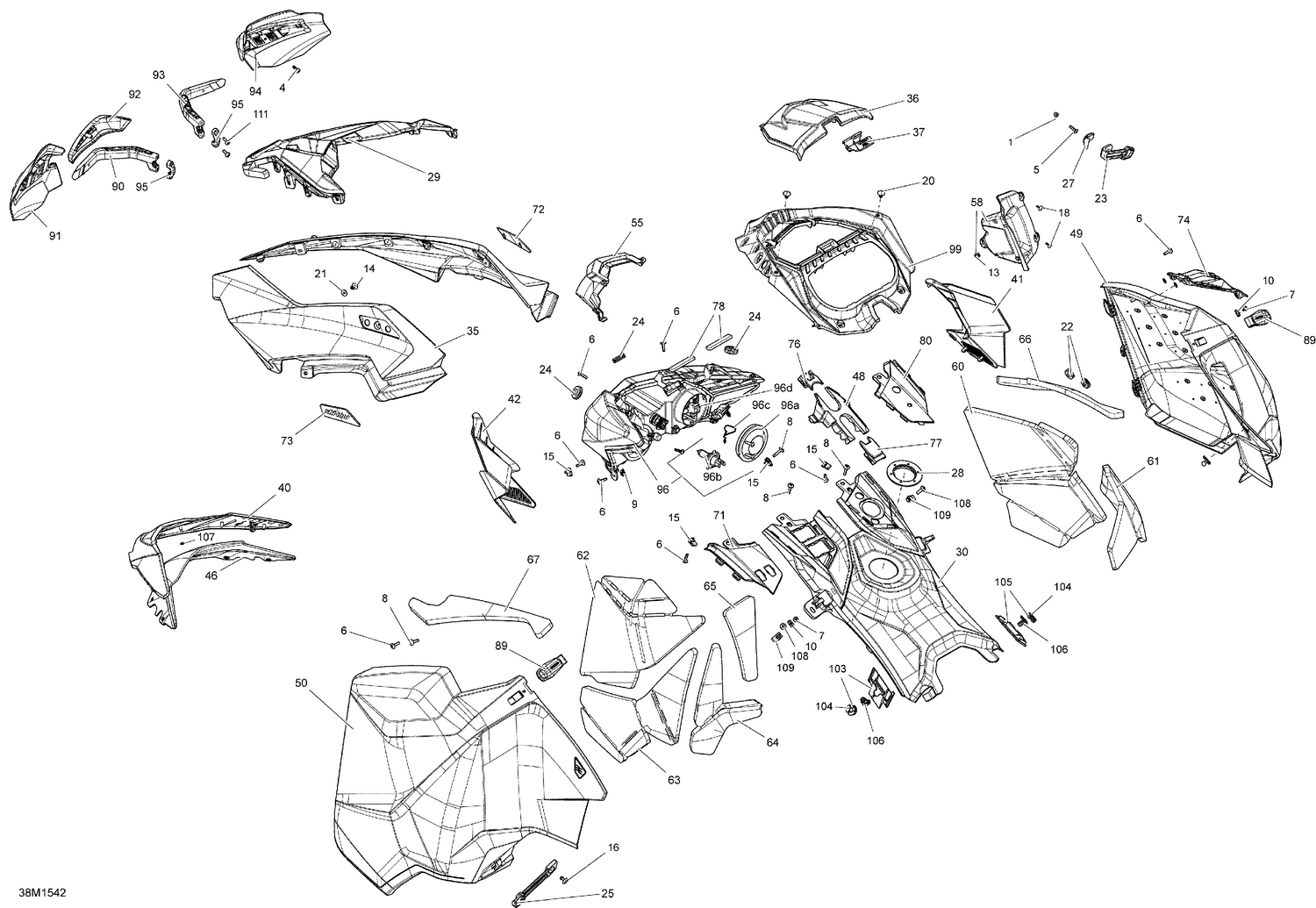

| Ref | Part Number | Description |
|---|
| 1 |
233251434 |
Flange Elastic Nut M5 |
| 4 |
250000297 |
Truss Head Torx Screw K50 X 20 |
| 5 |
250000792 |
Torx Screw M5 X 20 This part replaces 250000465. |
| 6 |
250000528 |
Torx Screw M5 X 20 |
| 7 |
250000565 |
Hexalob Screw M4 X 10 |
| 8 |
250000587 |
Torx Screw M5 X 26 |
| 9 |
250100035 |
Jack Nut M5 |
| 10 |
250100156 |
Weld Nut M4 |
| 13 |
275500241 |
Black, Cap |
| 14 |
293150104 |
Pop Rivet 3/16" |
| 15 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 16 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 18 |
293150170 |
Pop Rivet 5/32" |
| 20 |
414644300 |
Black, Dart |
| 21 |
517124300 |
Washer |
| 22 |
517307161 |
Grommet This part replaces 517302841. |
| 23 |
517303612 |
RH Panel Latch |
| 24 |
517303756 |
Grommet |
| 25 |
517303808 |
LH Panel Latch |
| 27 |
517304221 |
Latch Support |
| 28 |
517304518 |
Console Nut |
| 29 |
517304796 |
Deep Black, Center Hood |
| 30 |
517305641 |
Deep Black, Rear Console |
| 35 |
517305575 |
HOOD RH B-354 - Call your local BRP dealership |
| 35 |
517305576 |
HOOD LH B-354 - Call your local BRP dealership |
| 36 |
517304912 |
Deep Black, Upper Storage Access Cover |
| 37 |
517304917 |
Cover Latch |
| 40 |
860200937 |
Enjo Pare-Brise*Windshield Tri This part replaces 517304922. |
| 41 |
517304923 |
RH Air Deflec.Console, Black 63% Transm. |
| 42 |
517304924 |
LH Air Deflec.Console, Black 63% Transm. |
| 48 |
517304970 |
Deep Black, Console Support |
| 49 |
517305508 |
Deep Black - RH Panel |
| 50 |
517305510 |
Deep Black LH Panel |
| 55 |
517305010 |
Headlight Trim Cap |
| 58 |
517305060 |
Deep Black RH Console |
| 60 |
517305082 |
RH Upper Panel Foam |
| 61 |
517305085 |
RH Rear Panel Foam |
| 62 |
517305086 |
LH Upper Panel Foam |
| 63 |
517305087 |
LH CENTER PANEL FOAM - Call your local BRP dealership |
| 64 |
517305088 |
LH Lower Panel Foam |
| 65 |
517305089 |
LH REAR PANEL FOAM - Call your local BRP dealership |
| 66 |
517305090 |
RH Rear Hood Foam |
| 67 |
517305091 |
LH Rear Hood Foam |
| 71 |
517305128 |
Deep Black, LH Front Console |
| 72 |
517305137 |
RH Hood Filler Plate, SKI-DOO |
| 73 |
517305138 |
LH Hood Filler Plate, SKI-DOO |
| 74 |
517305140 |
RH Panel Vent Grid Deep Black |
| 76 |
517305147 |
Deep Black, Support Console Cap |
| 77 |
517305148 |
Deep Black, Support Console Cap |
| 78 |
517305157 |
Seal Joint |
| 80 |
517305183 |
DEEP BLACK RH FRONT CONSOLE - Call your local BRP dealership |
| 89 |
517305279 |
Panel Latch |
| 90 |
517305290 |
Deep Black, LH Arm |
| 91 |
517305291 |
LH Deflector, Smoked 60% |
| 92 |
517305588 |
Sunburst Yellow, RH Cap, SKI-DOO |
| 92 |
517305589 |
Sunburst Yellow, LH Cap, SKI-DOO |
| 93 |
517305293 |
Deep Black, RH Arm |
| 94 |
517305294 |
RH Deflector, Smoked 60% |
| 95 |
517305296 |
Clamp |
| 96a |
219400070 |
Cap |
| 96b |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 96c |
219800282 |
Holder Bracket |
| 96d |
219800281 |
Spring |
| 99 |
517305512 |
Deep Black, Indicator Support |
| 103 |
517305722 |
LH Panel Clip Ass'y, Black |
| 104 |
517305723 |
Ring |
| 105 |
517305724 |
RH Panel Clip Ass'y, Black |
| 106 |
517305734 |
Pin |
| 107 |
250100158 |
Push Nut |
| 108 |
250000705 |
Torx Truss Screw M6 X 20 |
| 109 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
