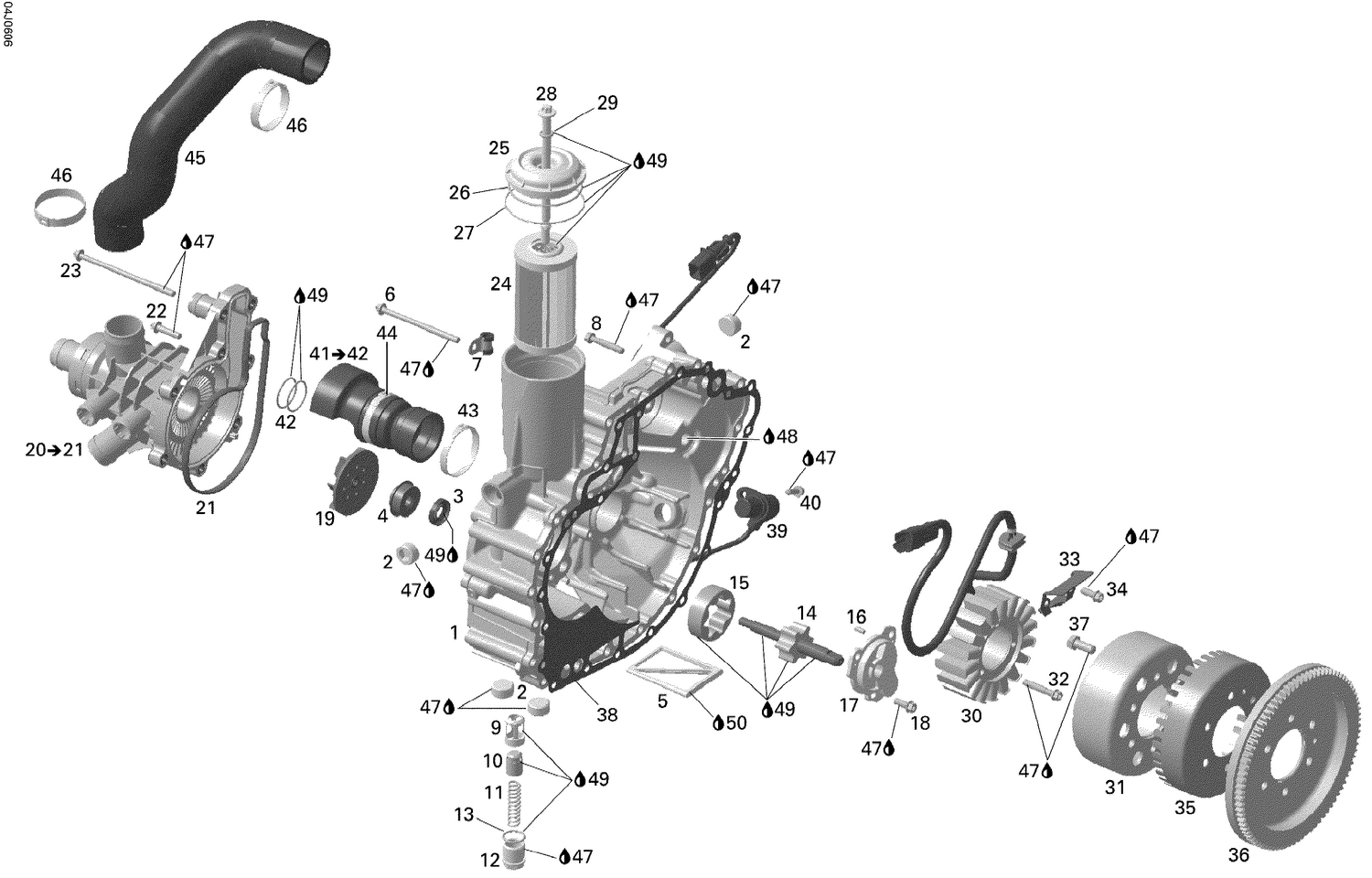

| Ref | Part Number | Description |
|---|
| 1 |
420481447 |
TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership This part replaces 420812624. |
| 2 |
420641317 |
Plug Screw M20 X 1.5 |
| 3 |
420650315 |
Oil Seal This part replaces 420650310. |
| 4 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 5 |
420956950 |
Oil Sieve |
| 6 |
420641228 |
Torx Flange Screw M6 X 85 This part replaces 420440347. |
| 7 |
420853414 |
Clamp |
| 8 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440277. |
| 9 |
420256606 |
Valve Seat Sleeve This part replaces 420256605. |
| 10 |
420256638 |
Piston Valve This part replaces 420256630. |
| 11 |
420939410 |
Compression Spring |
| 12 |
420641052 |
Plug Screw M20 X 1.5 This part replaces 420641051. |
| 13 |
420230890 |
O-Ring |
| 14 |
420837472 |
Pump Shaft Ass'y |
| 15 |
420956675 |
Oil Pump Rotor 16 mm |
| 16 |
420929070 |
Needle Pin |
| 17 |
420811591 |
Oil Pump Cover This part replaces 420811590. |
| 18 |
420641048 |
Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 19 |
420922801 |
Impeller |
| 21 |
420950840 |
Water Pump Housing Gasket |
| 22 |
420641238 |
Torx Flange Screw M6 X 25 |
| 23 |
420641338 |
Torx Flange Screw M6 X 105 |
| 24 |
420956741 |
Oil Filter |
| 25 |
420610329 |
Oil Filter Cover This part replaces 420610328. |
| 26 |
420230923 |
O-Ring This part replaces 420230920. |
| 27 |
420850500 |
O-Ring |
| 28 |
295501207 |
Oil Filter Screw Kit This part replaces 420641105. |
| 29 |
420950860 |
O-Ring |
| 30 |
420889726 |
Stator Plate This part replaces 420889721. |
| 31 |
420296900 |
Magneto Flywheel This part replaces 420889711. |
| 32 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440277. |
| 33 |
420926300 |
Retaining Plate |
| 34 |
420641048 |
Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 35 |
420966851 |
Trigger Wheel This part replaces 420664082. |
| 36 |
420835163 |
Starter Gear, 86 Teeth This part replaces 420834484. |
| 37 |
295501162 |
Hex Screw This part replaces 420641016. |
| 38 |
420931130 |
Timing Drive Cover Gasket (1603 NA) |
| 39 |
420966570 |
Crankshaft Position Sensor Ass'y |
| 40 |
420641048 |
Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 42 |
420631612 |
O-Ring This part replaces 420631610. |
| 43 |
420851653 |
Gear Clamp |
| 44 |
420853023 |
Gear Clamp 46.8-50.0MM |
| 45 |
420922822 |
Formed Hose This part replaces 420922821. |
| 46 |
420851687 |
Oetiker Clamp |
| 47 |
293800060 |
Loctite 243, 10 ml |
| 48 |
413707000 |
Dow Corning 111, 150 g |
| 49 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 219700346. |
