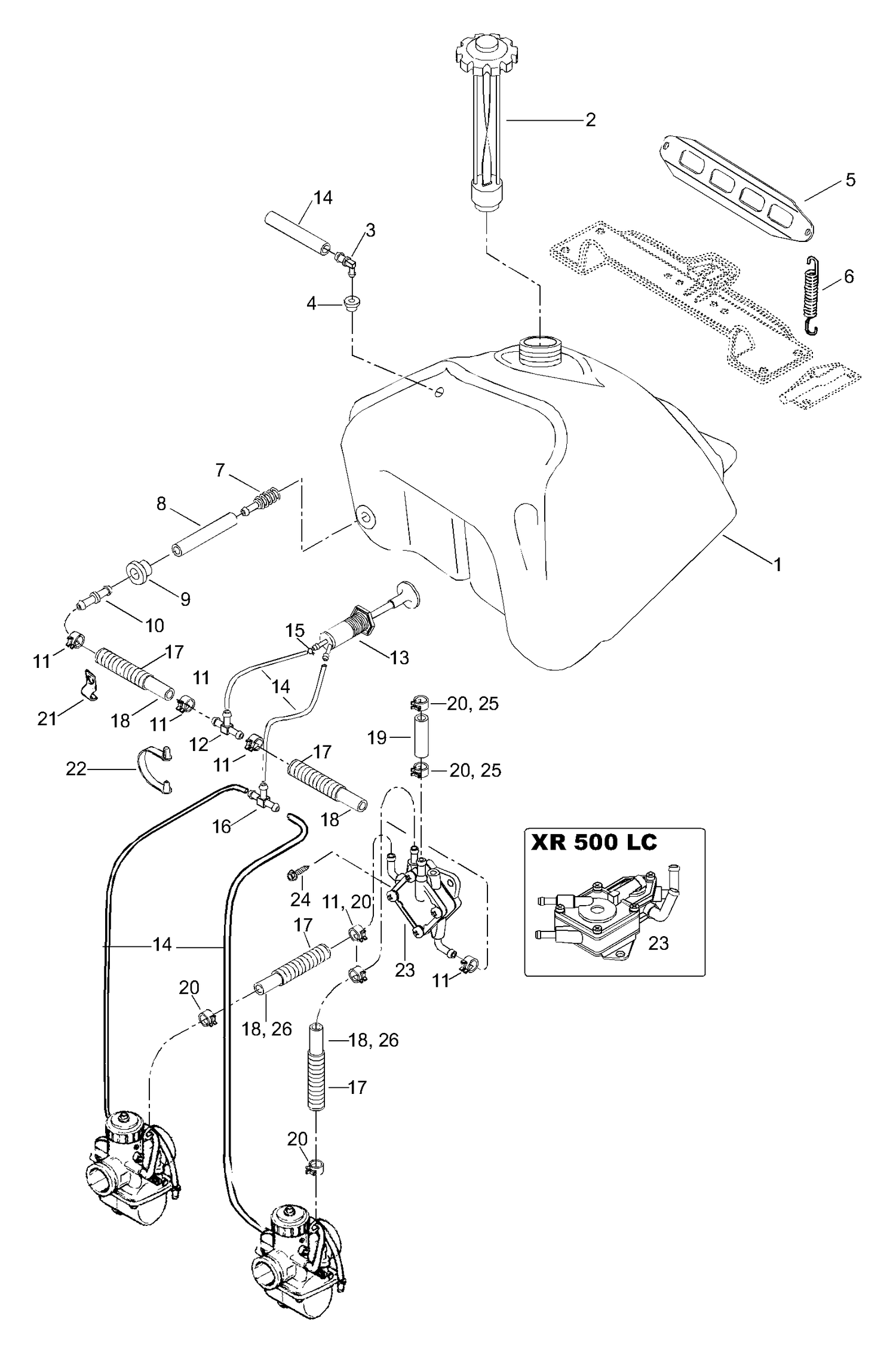

02- Fuel Tank
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572108900 | Fuel tank |
| 2 | 572161200 | Fuel tank cap |
| 3 | 414814100 | Male connector |
| 4 | 513032908 | Grommet |
| 5 | 517249200 | Fuel tank support |
| 6 | 517182100 | SPRING - Call your local BRP dealership |
| 7 | 414865700 | Fuel filter |
| 8 | 39030 | Fuel line 8/5 |
| 9 | 570045500 | Grommet |
| 10 | 414518500 | Male connector |
| 11 | 414554800 | Clamp |
| 12 | 21067 | T-fitting |
| 13 | 415060500 | Primer |
| 14 | 39035 | Hose 5/3 |
| 15 | Not | Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
| 16 | 21062 | T-fitting |
| 17 | 28012 | Tubing |
| 18 | 39004 | Fuel line 8/5 |
| 19 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 20 | 414420700 | Universal Spring Clamp |
| 21 | 415018200 | CLIP - Call your local BRP dealership |
| 22 | Not | Available As Spare Part - Cable clip - DOES NOT APPLY TO THIS MODEL |
| 23 | 403801100 | FUEL PUMP ASS'Y - Call your local BRP dealership |
| 24 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 25 | 414415200 | Clamp |
