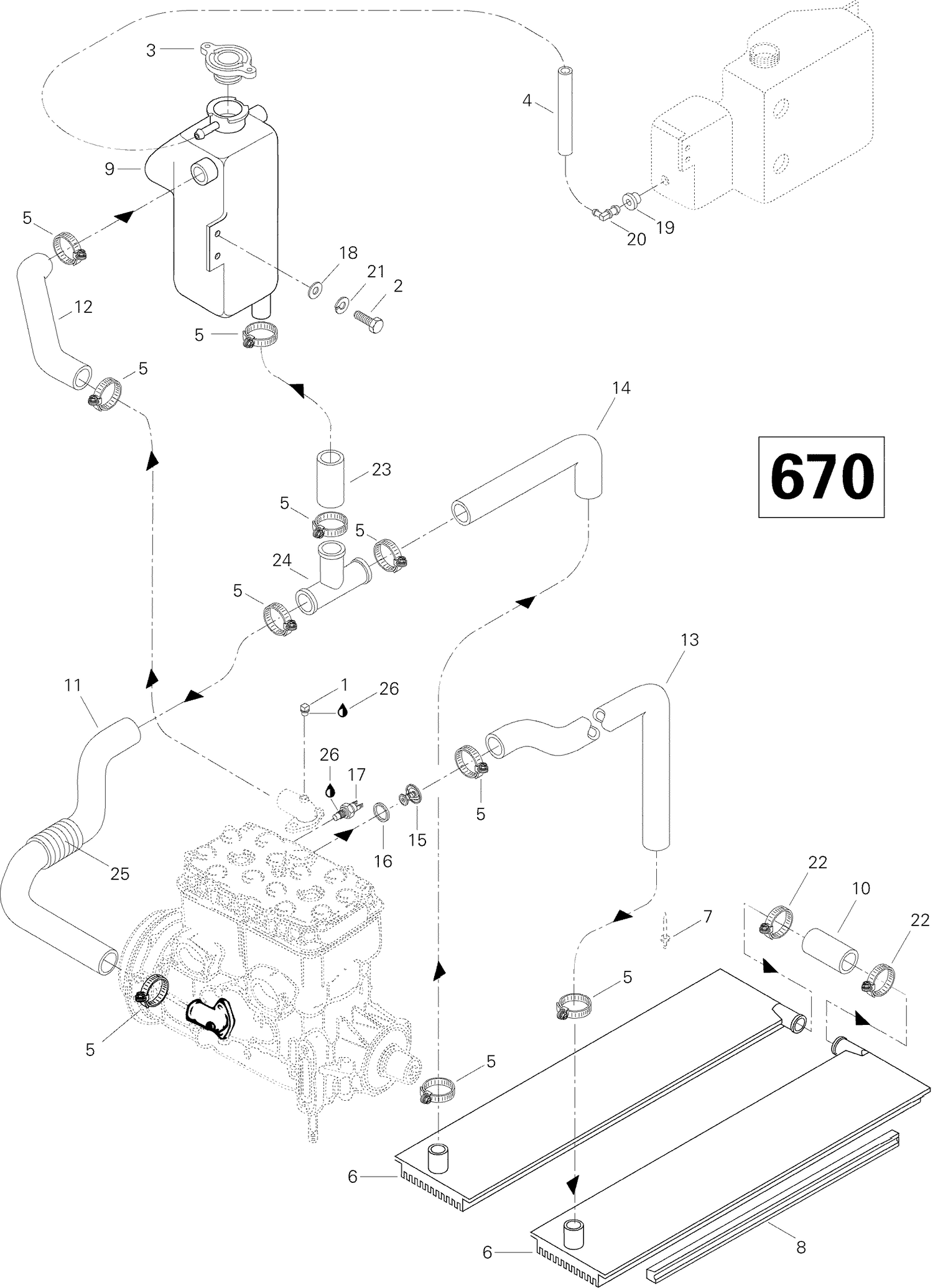

01- Cooling System MACH 1
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414184400 | Plug |
| 2 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 3 | 509000187 | Pressure Cap This part replaces 414684700. |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 6 | 517280500 | RH Radiator |
| 6 | 517280501 | LH Radiator |
| 7 | 390402200 | Pop Rivet 3/16" |
| 8 | 517248900 | Radiator Protector |
| 9 | 572071700 | Coolant Tank |
| 10 | 414795800 | Radiator Hose |
| 11 | 414986500 | Engine Inlet Hose |
| 12 | 414859600 | Engine Outlet Hose |
| 13 | 414859700 | Radiator Inlet Hose |
| 14 | 414986600 | Radiator Outlet Hose |
| 15 | 420922519 | Thermostat This part replaces 420922510. |
| 16 | 420931270 | SEALING RING - Call your local BRP dealership |
| 17 | 414728700 | Temperature Sensor |
| 18 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 19 | 709200285 | Grommet This part replaces 570135100. |
| 20 | 414580600 | Elbow Male Connector |
| 21 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 22 | 408803400 | Clamp Tridon |
| 23 | 414986700 | Hose-Junction |
| 24 | 509000219 | T-Fitting This part replaces 414619900. |
| 25 | 414991800 | TUBING - Call your local BRP dealership |
