Parts Catalog

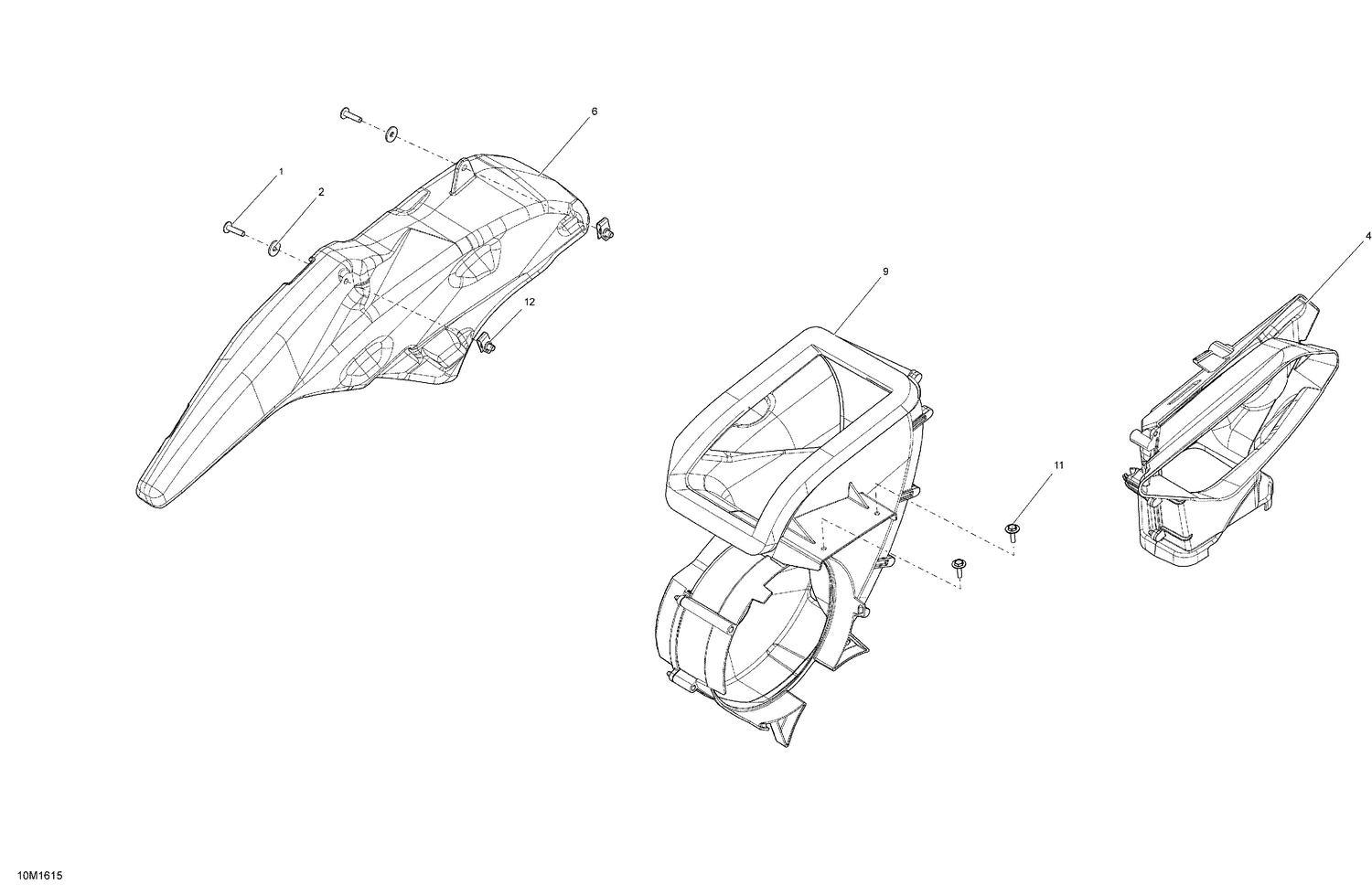

01- Cooling System

Parts (6)

Ref	Part Number	Description
1	250000724	Torx Screw M5 X 20
2	391301600	Washer
4	509000540	Outlet Duct Ass.
6	509000543	Air Chamber Ass'y
9	509000840	Inlet Duct
11	250000725	Screw M4 X 16
