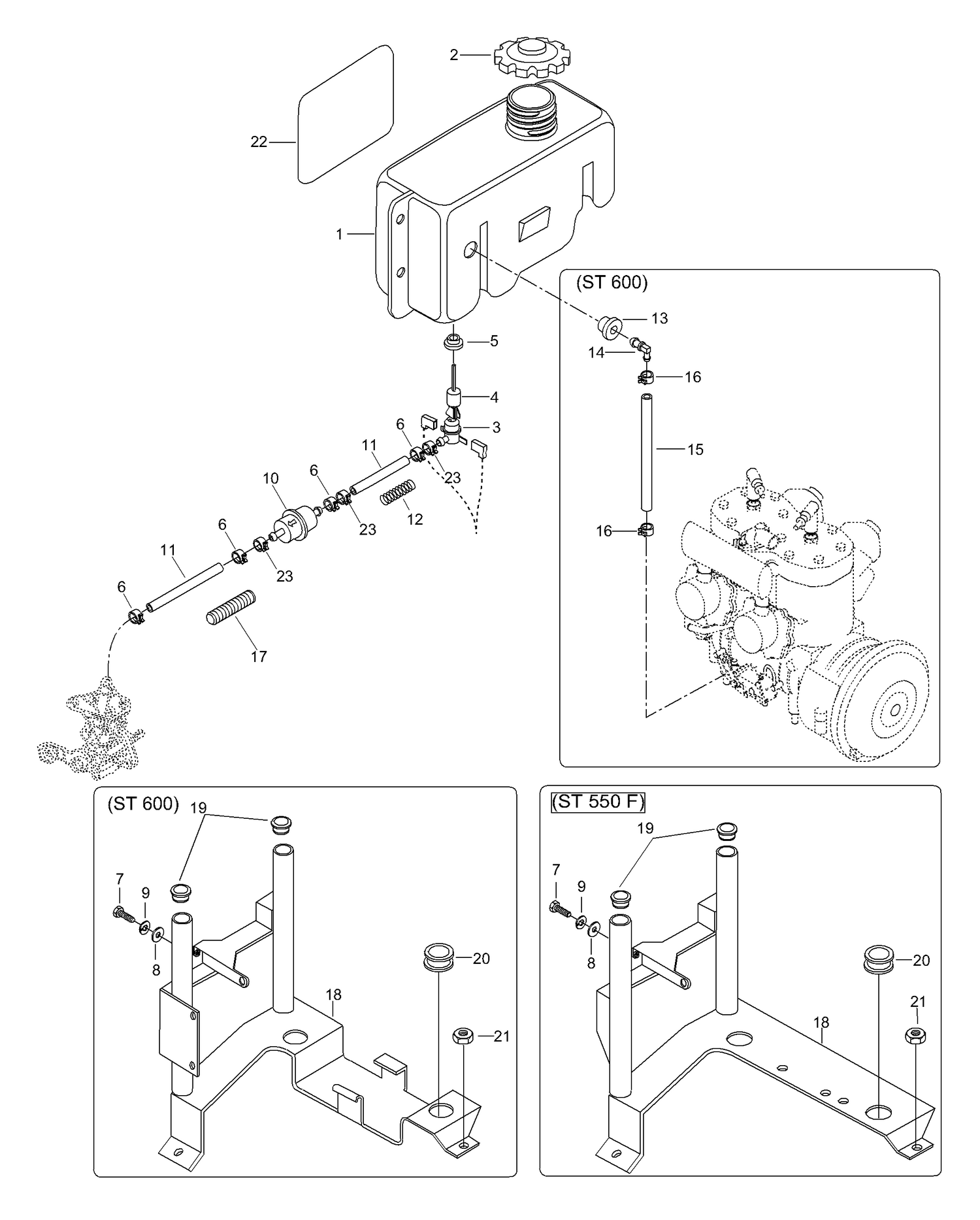

| Ref | Part Number | Description |
|---|
| 1 |
5142700 |
Oil tank |
| 2 |
519000044 |
CAP - Call your local BRP dealership |
| 3 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 4 |
414681900 |
Float |
| 5 |
570023000 |
Grommet |
| 6 |
414420700 |
Universal Spring Clamp |
| 7 |
40029 |
Screw M6x16 |
| 8 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 9 |
20052 |
Lock washer |
| 10 |
414536500 |
Oil filter |
| 11 |
39046 |
Oil line |
| 12 |
250001 |
Spring |
| 13 |
Not |
Available As Spare Part - Grommet - DOES NOT APPLY TO THIS MODEL |
| 14 |
Not |
Available As Spare Part - Elbow fitting 90 degr. - DOES NOT APPLY TO THIS MODEL |
| 15 |
Not |
Available As Spare Part - Hose 5/8 - DOES NOT APPLY TO THIS MODEL |
| 16 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
| 17 |
28015 |
Tube |
| 18 |
5243133 |
Support |
| 19 |
28136 |
Plug |
| 20 |
28022 |
Grommet |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 |
5443578 |
AL-cover - Call your local BRP dealership |
