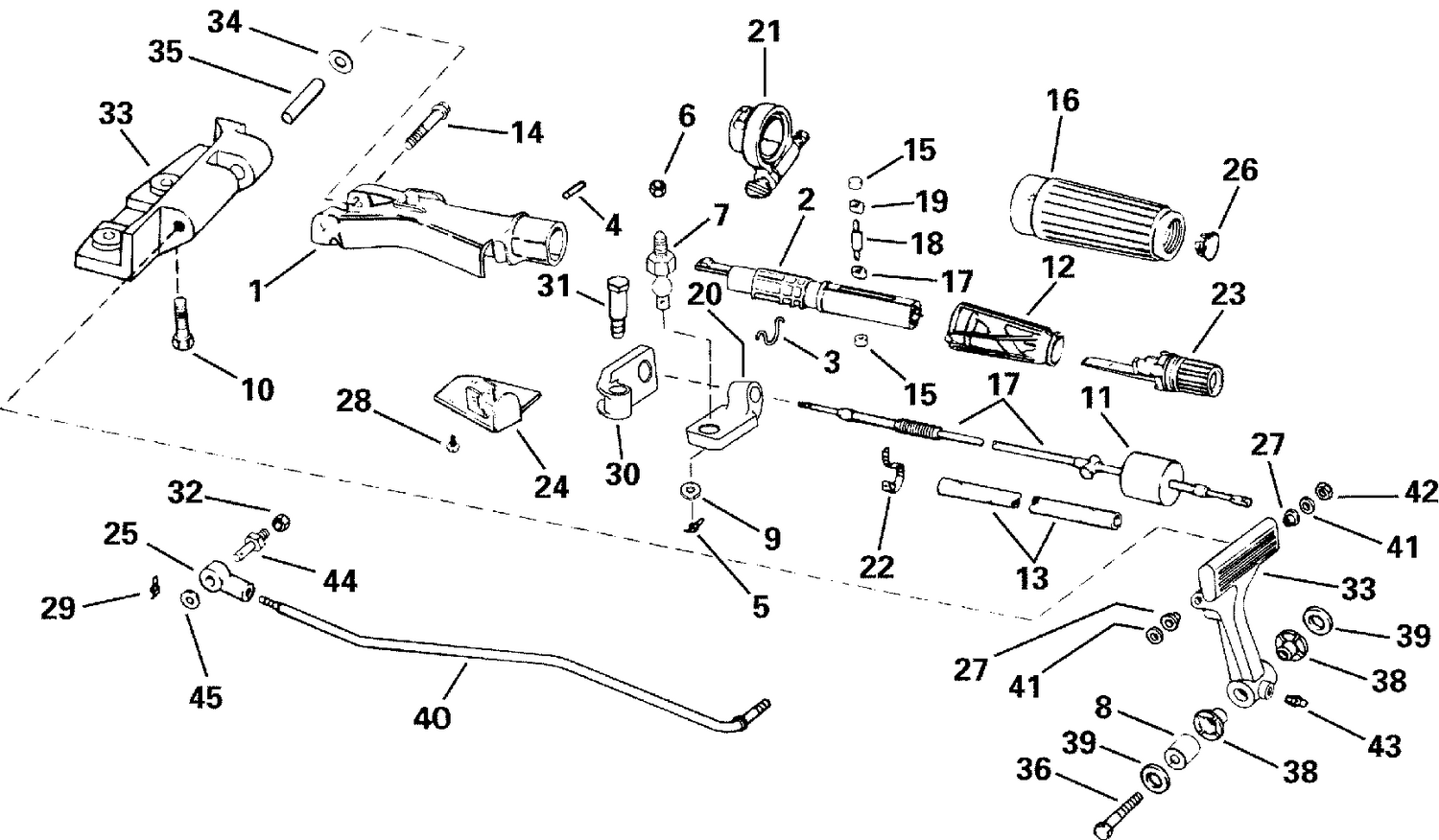

STEERING & SHIFT HANDLE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0434094 | BARRE |
| 7 | 0335683 | BALL JOINT |
| 8 | 0335605 | BUSHING |
| 10 | 0328333 | SCREW |
| 14 | 0324602 | VIS, barre |
| 16 | 0436544 | TWIST GRIP |
| 17 | 5000581 | THROTTLE CABLE Assy |
| 20 | 0345851 | CONNECTOR, Throttle cable |
| 22 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 25 | 0339271 | CONNECTOR |
| 30 | 0332947 | CONNECTOR, Throttle cable |
| 31 | 0329332 | SCREW, Anchor |
| 33 | 5000759 | BRACKET, Shift & steering |
| 36 | 0316109 | VIS, levier vers support |
| 37 | 0341384 | LEVER, Shift |
| 39 | 0309543 | RONDELLE |
| 40 | 0335283 | SHIFT ROD |
| 41 | 0329241 | RONDELLE |
| 44 | 0339272 | PIN |
