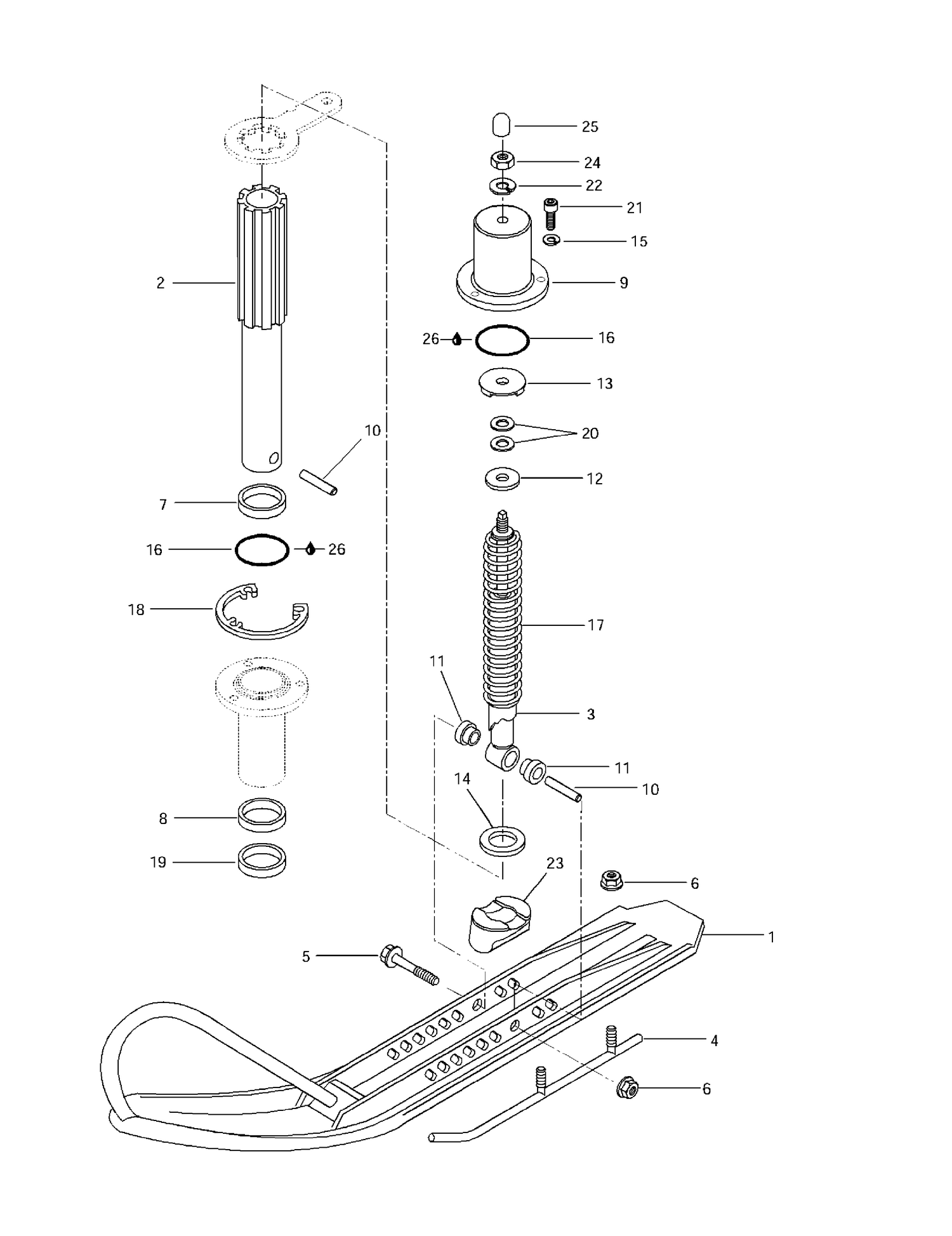

07- Front Suspension And Ski
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505065300 | Ski |
| 2 | 506121700 | Ski Leg |
| 3 | 414803600 | SHOCK - Call your local BRP dealership |
| 4 | 505056200 | Runner |
| 5 | 222009065 | Hex. Screw M10 x 90 |
| 6 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 7 | 414803100 | Upper Cushion |
| 8 | 414803200 | Lower Cushion |
| 9 | 518203200 | Paint Cover |
| 10 | 503156400 | Bushing |
| 11 | 572034500 | Cushion |
| 12 | 518203400 | Washer |
| 13 | 570025800 | Stopper |
| 14 | 518204700 | Washer |
| 15 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 16 | 414811400 | O-Ring |
| 17 | 414803000 | Spring |
| 18 | 503145600 | SPACER - Call your local BRP dealership |
| 19 | 505072696 | Seal Oil This part replaces 414808900. |
| 20 | 234001410 | Flat Washer 10 mm This part replaces 224001211. |
| 21 | 205082044 | Socket Head Screw M8 X 20 This part replaces 222982065. |
| 22 | 224701170 | Lock Washer 10 mm |
| 23 | 570027000 | Stopper |
| 24 | 232006414 | Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 25 | 414877100 | Cap |
| 505064820 | Carbide | Runner 505064820 |
