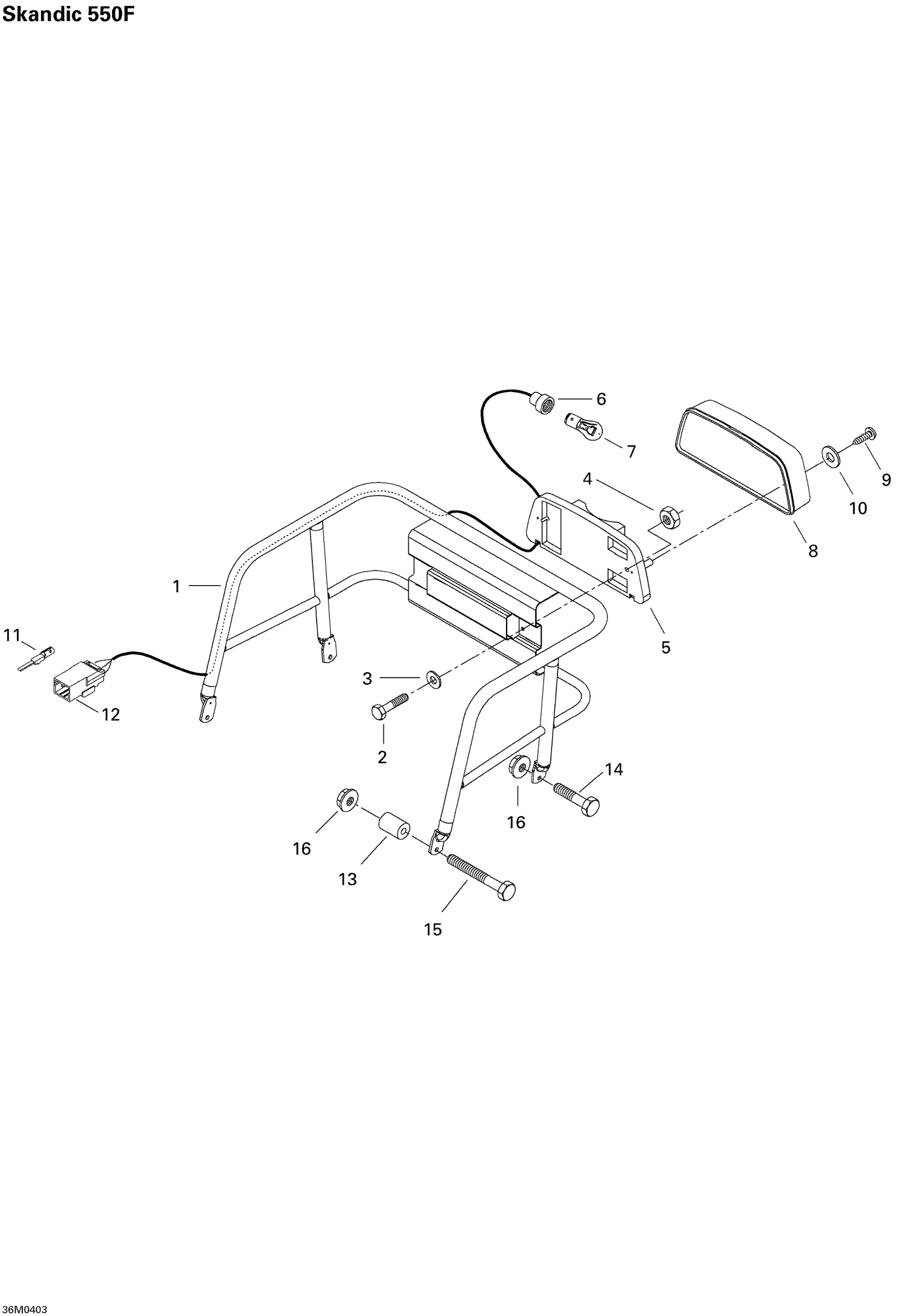

09- Luggage Rack SKANDIC 550F
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517273100 | Rack |
| 2 | 207053044 | Hex. Screw M5 X 30 |
| 3 | 517297900 | WASHER - Call your local BRP dealership |
| 4 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 5 | 515175397 | LAMP HOUSING - Call your local BRP dealership |
| 6 | Not | Available As Spare Part - Adapter |
| 7 | 520000758 | Bulb This part replaces 410504100. |
| 8 | 414513700 | Lens |
| 9 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 10 | 414516400 | Washer - Call your local BRP dealership |
| 11 | 515175232 | Male Terminal |
| 12 | 515175494 | Male Housing, 3 Circuits |
| 13 | 517185600 | Spacer |
| 14 | 207162044 | Hex. Screw M6 X 20 |
| 15 | 207064044 | Hex. Screw M6 X 40 |
