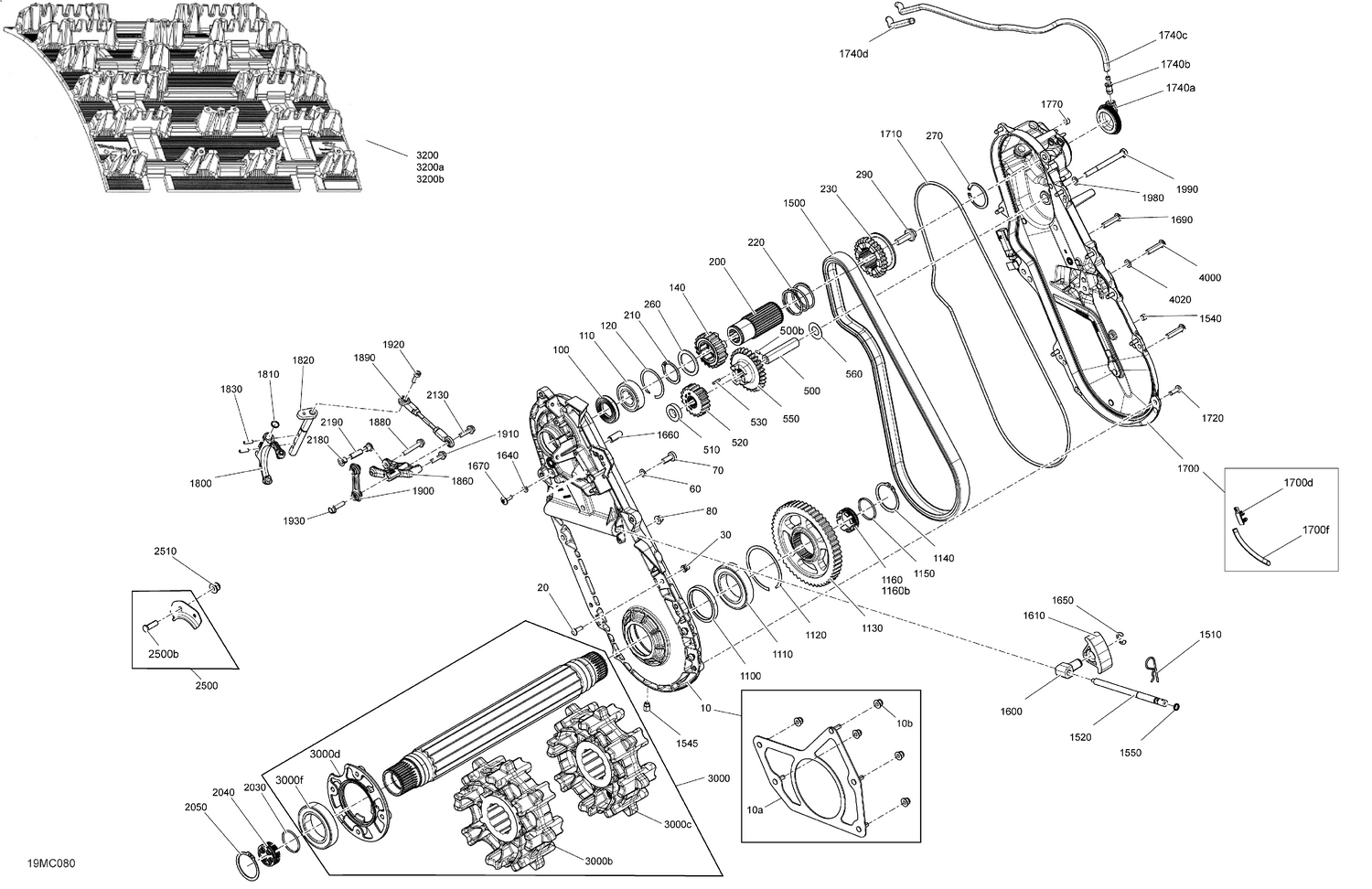

04- Drive - System
Parts (81)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 861805514 | Kit Plate Ass'y |
| 10b | 233261434 | Flange Elastic Nut M6 |
| 20 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 30 | 293150149 | Collar Huck Magna-Grip 6.4 |
| 60 | 504082900 | Washer |
| 70 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 80 | 233261434 | Flange Elastic Nut M6 |
| 100 | 293200168 | Oil Seal |
| 110 | 293350153 | Ball Bearing |
| 120 | 504152576 | Circlip |
| 140 | 504154085 | Sprocket 27 Teeth Ass'y |
| 200 | 504153500 | Connecting Shaft Ass'y |
| 210 | 293370183 | External Retaining Ring |
| 220 | 504153179 | Spring Release |
| 230 | 504153502 | Sliding Gear 27 Teeth Machined |
| 260 | 504152689 | Washer |
| 270 | 293370055 | Circlip |
| 290 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 500b | 250400010 | Rolled Pin M3 X 10 |
| 510 | 504078700 | Ring |
| 520 | 504154086 | Sprocket 19 Teeth Ass'y |
| 530 | 570048600 | Alignement Rod |
| 550 | 504154087 | Gear Straight 29 Teeth Ass'y |
| 560 | 504077300 | Spacer |
| 1100 | 293200159 | Oil Seal |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1130 | 504153995 | Sprocket 45 Teeth |
| 1140 | 504152572 | Circlip |
| 1150 | 293300201 | O-Ring |
| 1160b | 504154043 | Cap |
| 1500 | 504153266 | Drive Chain, 110 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153760 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug |
| 1545 | 504153704 | Magnetic Plug |
| 1550 | 293300202 | O-Ring |
| 1600 | 504154577 | Chain Tensioner |
| 1610 | 504153312 | Slider Chain |
| 1640 | 250200185 | Copper Washer |
| 1650 | 293370105 | Circlip |
| 1660 | 504153531 | Slide Chain |
| 1670 | 250000717 | Torx Head Screw M6 X 16 |
| 1690 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 1700d | 515178223 | Clip Connector |
| 1700f | 415130141 | Braided Sleeve |
| 1710 | 293300214 | O Ring |
| 1720 | 250001153 | Hex. Flange Screw M6X20 |
| 1740a | 504152930 | Cap This part replaces 504154304. |
| 1740b | 293710180 | Straight Pipe Fitting |
| 1740c | 219704410 | Polyurethane Hose 10000Mm Long |
| 1740d | 515179201 | Heat Shield |
| 1770 | 250500013 | Hex. Countersunk Drain Plug |
| 1800 | 504154097 | Fork Ass'y |
| 1810 | 293300202 | O-Ring |
| 1820 | 504154096 | Reverse Axle |
| 1830 | 250400045 | Spring Pin M5 X 16 |
| 1860 | 504153532 | Machined Lever |
| 1880 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 1890 | 504153657 | Rod Actuating Adjustable Ass'y |
| 1900 | 504153707 | Rod Actuating Ass'y |
| 1910 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1920 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 1930 | 233261434 | Flange Elastic Nut M6 |
| 1980 | 504082900 | Washer |
| 1990 | 207089044 | Hex. Screw M8 X 90 |
| 2030 | 293300201 | O-Ring |
| 2040 | 504154043 | Cap |
| 2050 | 504152572 | Circlip |
| 2130 | 207562544 | Hex. Flange Screw M6 X 25 |
| 2180 | 504153735 | Bushing |
| 2190 | 504153648 | Spacer |
| 2500b | 250300028 | Clinch Stud, M8 X 25 |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000b | XXXX | Sold With Drive Axle |
| 3000c | XXXX | Sold With Drive Axle |
| 3000d | 504154417 | Retaining Ring |
| 3000f | 293350059 | Ball Bearing |
| 3200a | 415129528 | Track Guide |
| 3200b | 504152651 | Cleat |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
