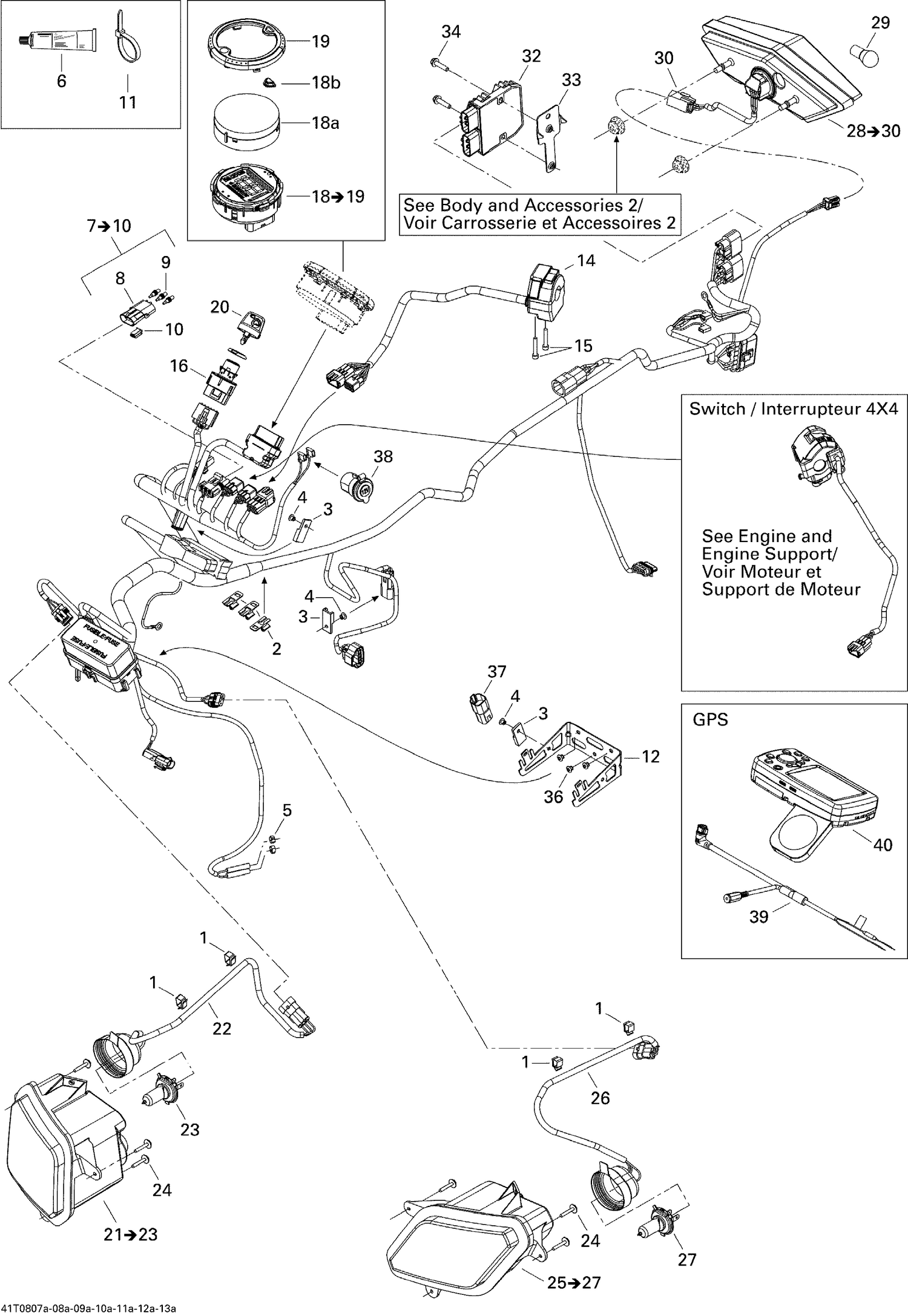

10- Electrical Accessories 1, STD

Ref	Part Number	Description
1	414227300	Clip
2	515175283	Housing Support
3	270000141	Clip
4	390402400	Pop Rivet 3/16"
5	293650100	Oetiker Clamp
6	219704453	Was 293550004 Dielectric Grease, 150 g
11	293750001	Tie Wrap 94 mm
11	293750008	Tie Wrap 368 mm
11	293750009	Tie-Rap 173 mm
11	293750041	Tie-rap 627 mm
11	414115200	Tie-Rap 180 mm
12	710002176	FUSE SUPPORT - Call your local BRP dealership This part replaces 710001263.
14	710000791	Multi-Fonction Handle
15	205053588	Socket Head Screw M5 X 35
16	710002324	Ignition Switch This part replaces 710000728.
18a	415129320	Lens
18b	710001473	Button This part replaces 710001417.
19	710001416	Trim Ring
19a	704904615	BRP Logo13 mm This part replaces 704901270.
20	710000817	Black, Electronic Key
22	710000828	LIGHT HARNESS - Call your local BRP dealership
23	710000871	Bulb, 12V 35/35W
24	250000101	Plastite Screw Type K-40, M4 X 25
26	710000828	LIGHT HARNESS - Call your local BRP dealership
27	710000871	Bulb, 12V 35/35W
29	520000758	Bulb This part replaces 410504100.
30	515175494	Male Housing, 3 Circuits
32	710001103	Voltage Regulator
33	710001262	RECTIFIER SUPPORT - Call your local BRP dealership
34	210262550	Hex. Flange Forming Screw M6 X 25 This part replaces 210262580.
36	390402400	Pop Rivet 3/16"
37	278002704	Diagnostic Connector This part replaces 278002148.
38	861507200	Outlet Power Kit, 12 Volts
39	Not	Available As Spare Part - Not available for this vehicule
