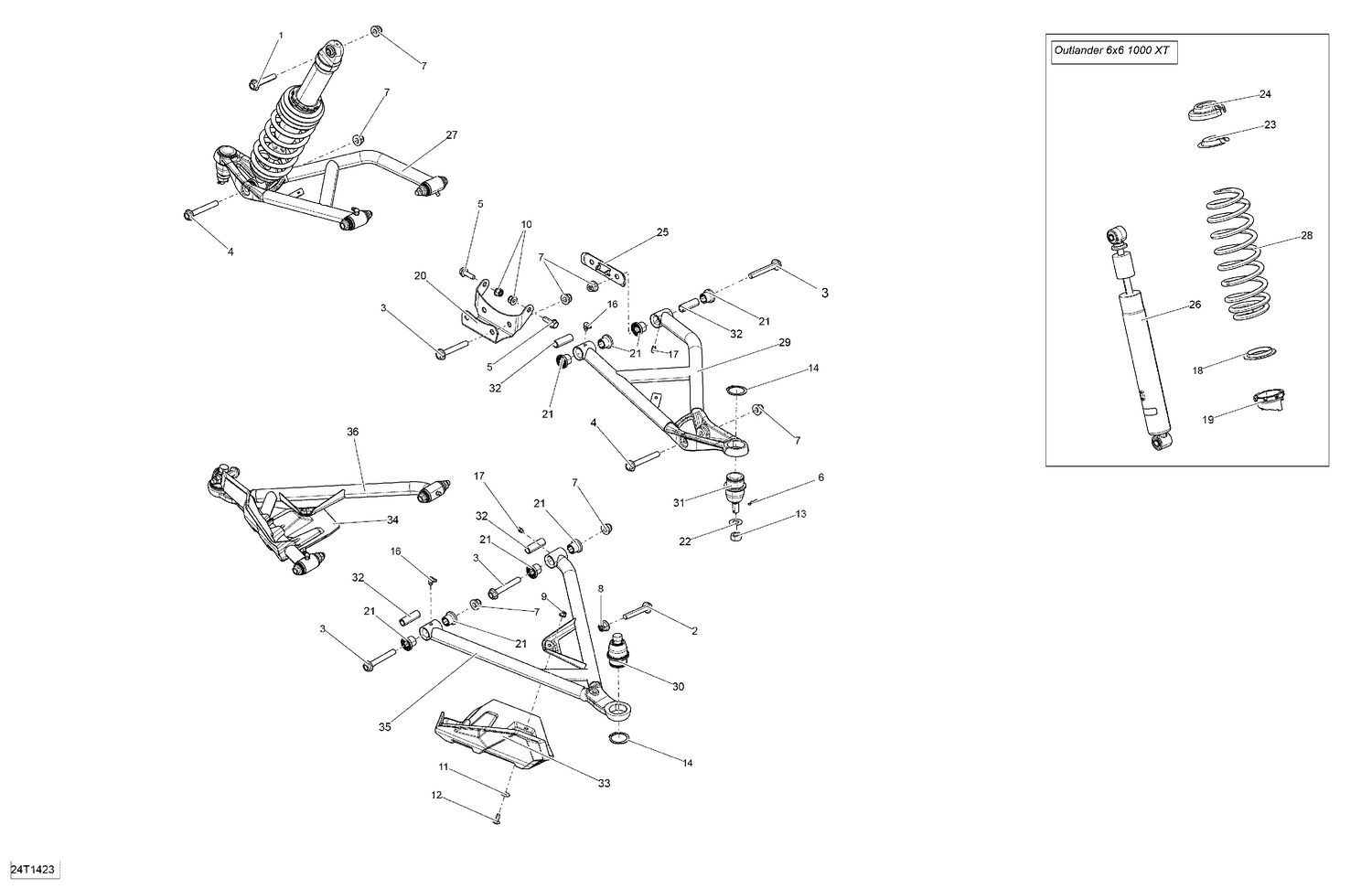

07- Front Suspension _24T1423
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207605546 | Hex. Flange Screw M10 X 55 |
| 2 | 207606044 | Hex. Flange Screw M10 X 60 |
| 3 | 207607046 | Hex. Flange Screw M10 X 70 |
| 4 | 250001038 | Hex. Flange Screw M10 X 75 This part replaces 207607587. |
| 5 | 207682544 | Hex. Flange Screw M8 X 25 |
| 6 | 211400017 | Cotter Pin |
| 7 | 233201436 | Hex. Flange Elastic Nut M10 |
| 8 | 233201434 | Hex. Flange Elastic Nut M10 |
| 9 | 233261494 | Hex. Flange Elastic Nut M6 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 234062670 | Stainless Steel Flat Washer |
| 12 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 13 | 250100099 | Nut M12 |
| 14 | 293370035 | Circlip |
| 16 | 293550056 | Grease Fitting 90° |
| 17 | 408200700 | Grease Fitting |
| 20 | 705203247 | Upper Front Holder |
| 21 | 706200181 | Bushing |
| 22 | 706200281 | Hardened Washer This part replaces 250200086. |
| 25 | 706200998 | Front Suspension Cross Plate |
| 27 | 706201797 | Black RH Upper Arm |
| 29 | 706201796 | Black LH Upper Arm |
| 30 | 706202045 | Ball Joint This part replaces 706201393. |
| 31 | 706202044 | Ball Joint This part replaces 706201394. |
| 32 | 706201587 | Sleeve |
| 33 | 706202808 | LH Joint Protector This part replaces 706201829. |
| 34 | 706202809 | RH Joint Protector This part replaces 706201830. |
| 35 | 706204639 | LH Lower Suspension Arm This part replaces 706201874. |
