Parts Catalog

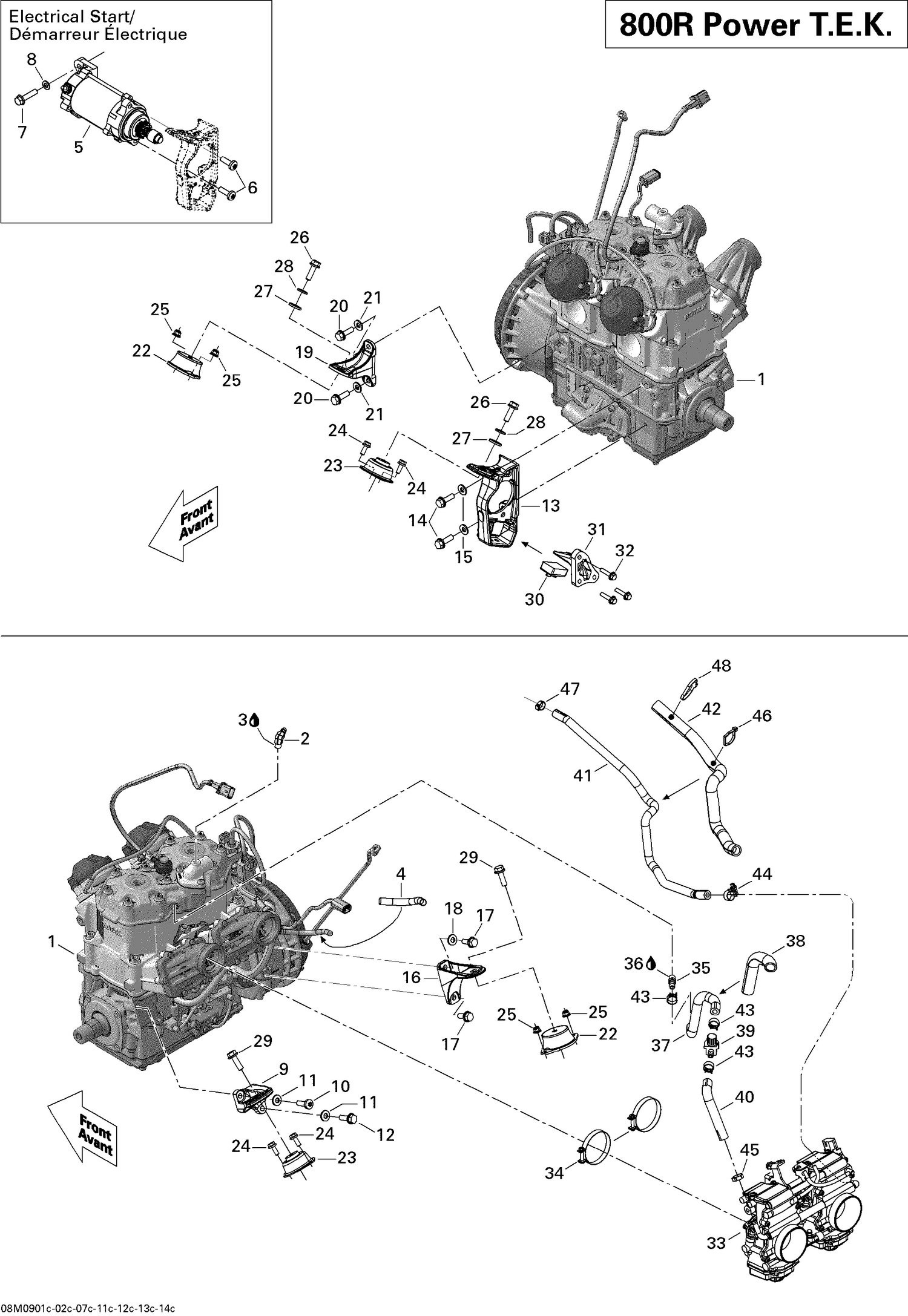

01- Engine 1_800R

Parts (42)

Ref	Part Number	Description
1	861805566	Short Block 797 Ptek This part replaces 400800318.
2	293700045	ELBOW FITTING 90 - Call your local BRP dealership
3	219704455	Was 293800018 Loctite 592, 50 ml
4	219704407	Tubing 10 MM 1000MM Long
9	512060478	Rear Support, PTO
10	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
11	234281474	Conical Spring Washer M8
12	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
14	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
15	234281474	Conical Spring Washer M8
16	512060470	REAR MAG SUPPORT - Call your local BRP dealership
17	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
18	234281474	Conical Spring Washer M8
19	512060469	Front Support, MAG
20	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
21	234281474	Conical Spring Washer M8
22	512060729	Rubber Mount This part replaces 512060457.
23	512061507	Vibration Damper This part replaces 512060387.
24	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
25	233261414	Hex. Flange Elastic Nut M6 x 1.0
26	207583086	Hex. Flange Screw M8 X 30, Scotch Grip
27	503183200	Yellow, Washer
28	234281474	Conical Spring Washer M8
29	250000796	Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361.
30	512060488	STOPPER - Call your local BRP dealership
31	512060576	Stopper Support This part replaces 512060489.
32	207562544	Hex. Flange Screw M6 X 25
33	403138806	CARBURATOR KIT, TM40-B400 - Call your local BRP dealership
34	512059835	Gemi Clamp
35	512060196	Male Connector 1/8"-27 NPT
36	219704455	Was 293800018 Loctite 592, 50 ml
37	512060357	HOSE FORMED ENGINE OUTLET - Call your local BRP dealership
38	219704408	Tubing 16 Mm 1000Mm Long
39	512059324	Valve 5/16”
40	512060353	Hose Formed
41	512060347	Hose Formed
42	219704408	Tubing 16 Mm 1000Mm Long
43	414655700	Spring Clamp
44	293650084	Norma Clamp
45	293650125	Oetiker Clamp
46	414115200	Tie-Rap 180 mm
47	293650046	Oetiker Clamp
