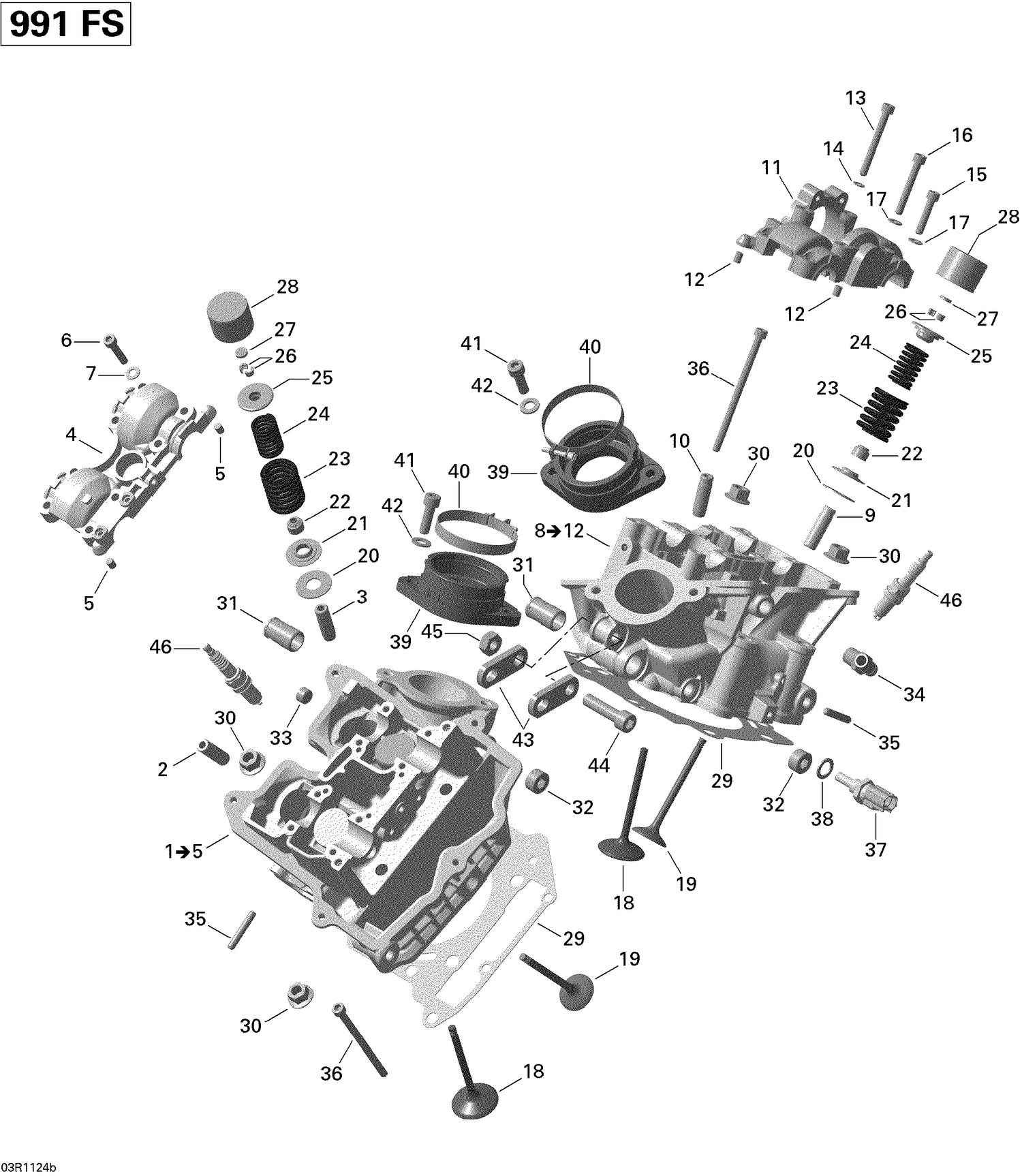

01- Cylinder Head

01- Cylinder Head

Parts (73)

RefPart NumberDescription
2 420253926 VALVE GUIDE, EXHAUST - Call your local BRP dealership
3 420253921 VALVE GUIDE, INTAKE - Call your local BRP dealership
4 Not Available As Spare Part - Camshaft Bearing Cap
5 420232210 Center Pin
6 205063044 Socket Head Screw M6 X 30
7 420927945 FLAT WASHER - Call your local BRP dealership
9 420253926 VALVE GUIDE, EXHAUST - Call your local BRP dealership
10 420253921 VALVE GUIDE, INTAKE - Call your local BRP dealership
11 Not Available As Spare Part - Camshaft Bearing Cap
12 420232210 Center Pin
13 420240332 Allen Screw M6 X 55 This part replaces 420240331.
14 420927863 SHIM - Call your local BRP dealership
15 205063044 Socket Head Screw M6 X 30
16 205064544 SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership
17 420927945 FLAT WASHER - Call your local BRP dealership
18 420254027 Exhaust Valve 31 mm
19 420254295 Intake Valve, 38 mm
20 420227980 THRUST WASHER - Call your local BRP dealership
21 420253967 Valve Spring Shim This part replaces 420253965.
22 420230510 Seal
23 420238211 VALVE SPRING, OUTER - Call your local BRP dealership
24 420238201 Valve Spring, Inner
25 420253957 Valve Spring Retainer
26 420253645 Valve Cotter
27 420253974 SHIM 2.3 - Call your local BRP dealership
27 420253975 Shim 2.35
27 420253976 SHIM 2.4 - Call your local BRP dealership
27 420253977 SHIM 2.45 - Call your local BRP dealership
27 420253978 SHIM 2.5 - Call your local BRP dealership
27 420253979 SHIM 2.55 - Call your local BRP dealership
27 420253980 SHIM 2.6 - Call your local BRP dealership
27 420253981 SHIM 2.65 - Call your local BRP dealership
27 420253982 SHIM 2.7 - Call your local BRP dealership
27 420253983 SHIM 2.75 - Call your local BRP dealership
27 420253984 SHIM 2.8 - Call your local BRP dealership
27 420253985 SHIM 2.85 - Call your local BRP dealership
27 420253986 SHIM 2.9 - Call your local BRP dealership
27 420253987 SHIM 2.95 - Call your local BRP dealership
27 420253988 SHIM 3.0 - Call your local BRP dealership
27 420253989 SHIM 3.05 - Call your local BRP dealership
27 420254030 SHIM 2.325 - Call your local BRP dealership
27 420254031 SHIM 2.375 - Call your local BRP dealership
27 420254032 SHIM 2.425 - Call your local BRP dealership
27 420254033 SHIM 2.475 - Call your local BRP dealership
27 420254034 SHIM 2.525 - Call your local BRP dealership
27 420254035 SHIM 2.575 - Call your local BRP dealership
27 420254036 Shim 2.625
27 420254037 Shim 2.675
27 420254038 SHIM 2.725 - Call your local BRP dealership
27 420254039 SHIM 2.775 - Call your local BRP dealership
27 420254040 SHIM 2.825 - Call your local BRP dealership
27 420254041 SHIM 2.875 - Call your local BRP dealership
27 420254042 SHIM 2.925 - Call your local BRP dealership
27 420254043 SHIM 2.975 - Call your local BRP dealership
27 420254044 SHIM 3.025 - Call your local BRP dealership
28 420253990 Tappet Valve
29 420650210 Cylinder Head Gasket
30 233101414 Hex. Flange Nut M10
31 420224090 Elbow Fitting
32 420240170 Plug Screw M18 X 1.5 - Call your local BRP dealership
33 420840658 Plug Screw M12x1,5 This part replaces 420840657.
34 420922242 Angular Tube
35 420440131 Stud, M6 X 19/16
36 420241602 Socket Head Screw M6 X 100 This part replaces 420241601.
37 420274040 Temperature Sensor
38 420250640 Copper Washer
39 420267151 Intake Flange This part replaces 420267150.
40 420251830 Hose Clamp
41 205082544 Socket Head Screw M8 X 25
42 420250315 Flat Washer 8.4 mm This part replaces 420250311.
43 420251100 SUPPORT BRACKET - Call your local BRP dealership
44 420640581 SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership
45 232006414 Hex. Nut M10 X 1.5
