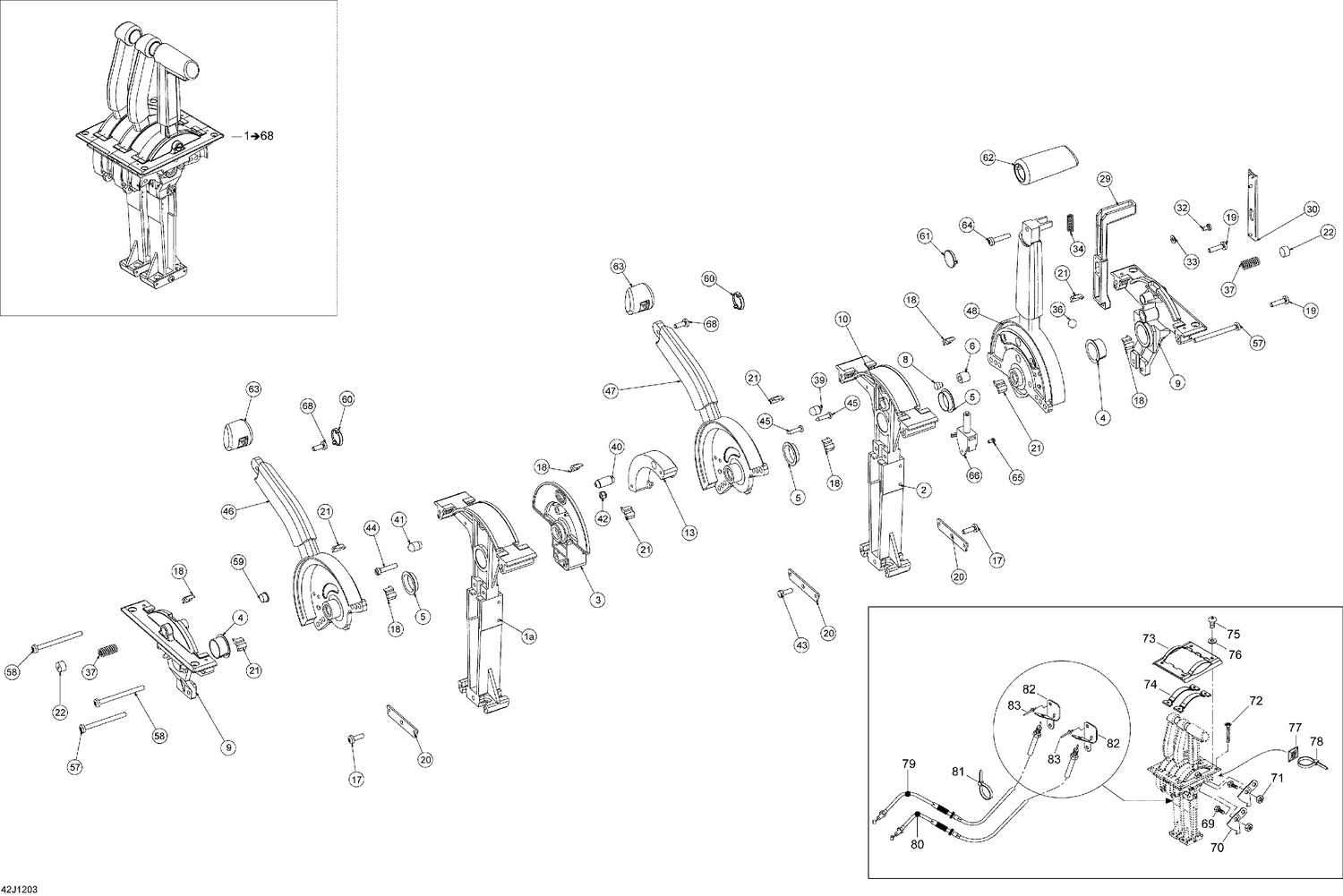

| Ref | Part Number | Description |
|---|
| 1a |
204390611 |
RH Frame |
| 2 |
204390612 |
LH Frame |
| 3 |
204390613 |
Spacer |
| 4 |
277000397 |
BUSHING - Call your local BRP dealership |
| 5 |
277000398 |
BUSHING - Call your local BRP dealership |
| 6 |
204390614 |
Screw M12 |
| 8 |
204390615 |
Friction Pin |
| 9 |
277001815 |
Half Cover |
| 10 |
204390617 |
Bushing |
| 13 |
204390618 |
Throttle Lever Selector |
| 17 |
277001850 |
Screw M5 X 16 |
| 18 |
Not |
Available As Spare Part - RH Water Seal |
| 19 |
204100016 |
SCREW M5 X 20 - Call your local BRP dealership |
| 20 |
204390227 |
RETAINING PLATE - Call your local BRP dealership |
| 21 |
Not |
Available As Spare Part - LH Water Seal |
| 22 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 29 |
277001825 |
LOCK - Call your local BRP dealership |
| 30 |
277001826 |
LOCK COVER - Call your local BRP dealership |
| 32 |
277001828 |
SCREW M4 X 8 - Call your local BRP dealership |
| 33 |
277001829 |
WASHER - Call your local BRP dealership |
| 34 |
277001830 |
SPRING - Call your local BRP dealership |
| 36 |
277000399 |
BALL - Call your local BRP dealership |
| 37 |
277001832 |
DETENT SPRING - Call your local BRP dealership |
| 39 |
204390619 |
Shift Lever Pin |
| 40 |
204390620 |
Throttle Lever Pin |
| 41 |
204390621 |
Throttle Lever External Pin |
| 42 |
204390622 |
Nut M5 |
| 43 |
204390623 |
Screw M5 X 14 |
| 44 |
204390624 |
Screw M5 X 25 |
| 45 |
204390625 |
Screw |
| 46 |
204390626 |
THROTTLE LEVER - Call your local BRP dealership |
| 47 |
204390627 |
THROTTLE LEVER - Call your local BRP dealership |
| 48 |
Not |
Available As Spare Part - Molded Lever |
| 57 |
204390628 |
Screw M5 X 60 |
| 58 |
204390629 |
Screw M5 X 65 |
| 59 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 60 |
204390630 |
RED KNOB CAP - Call your local BRP dealership |
| 61 |
204390631 |
BLACK KNOB CAP - Call your local BRP dealership |
| 62 |
204390632 |
CONTROL HANDLE - Call your local BRP dealership |
| 63 |
204390633 |
THROTTLE HANDGRIP - Call your local BRP dealership |
| 64 |
204390634 |
SCREW M5 X 25 - Call your local BRP dealership |
| 65 |
204390635 |
Screw M3 X 6 |
| 66 |
204390636 |
MICROSWITCH - Call your local BRP dealership |
| 68 |
Not |
Available As Spare Part - Screw M5 X 14 |
| 69 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 70 |
204390045 |
THROTTLE LINK - Call your local BRP dealership |
| 71 |
232551600 |
Hex. Elastic Nut M5 |
| 72 |
205353060 |
SCREW M5 X 30 - Call your local BRP dealership |
| 73 |
277001756 |
CONTROL PLATE - Call your local BRP dealership |
| 74 |
277001760 |
CONTROL PLATE INSERT - Call your local BRP dealership |
| 75 |
208641060 |
Phillips Screw M4 X 10 |
| 76 |
234040600 |
Flat Washer 4 mm |
| 77 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 78 |
293750001 |
Tie Wrap 94 mm |
| 79 |
204390572 |
LH THROTTLE CABLE - Call your local BRP dealership |
| 80 |
204390576 |
RH THROTTLE CABLE - Call your local BRP dealership |
| 81 |
414115200 |
Tie-Rap 180 mm |
| 82 |
277000504 |
CABLE SUPPORT - Call your local BRP dealership |
