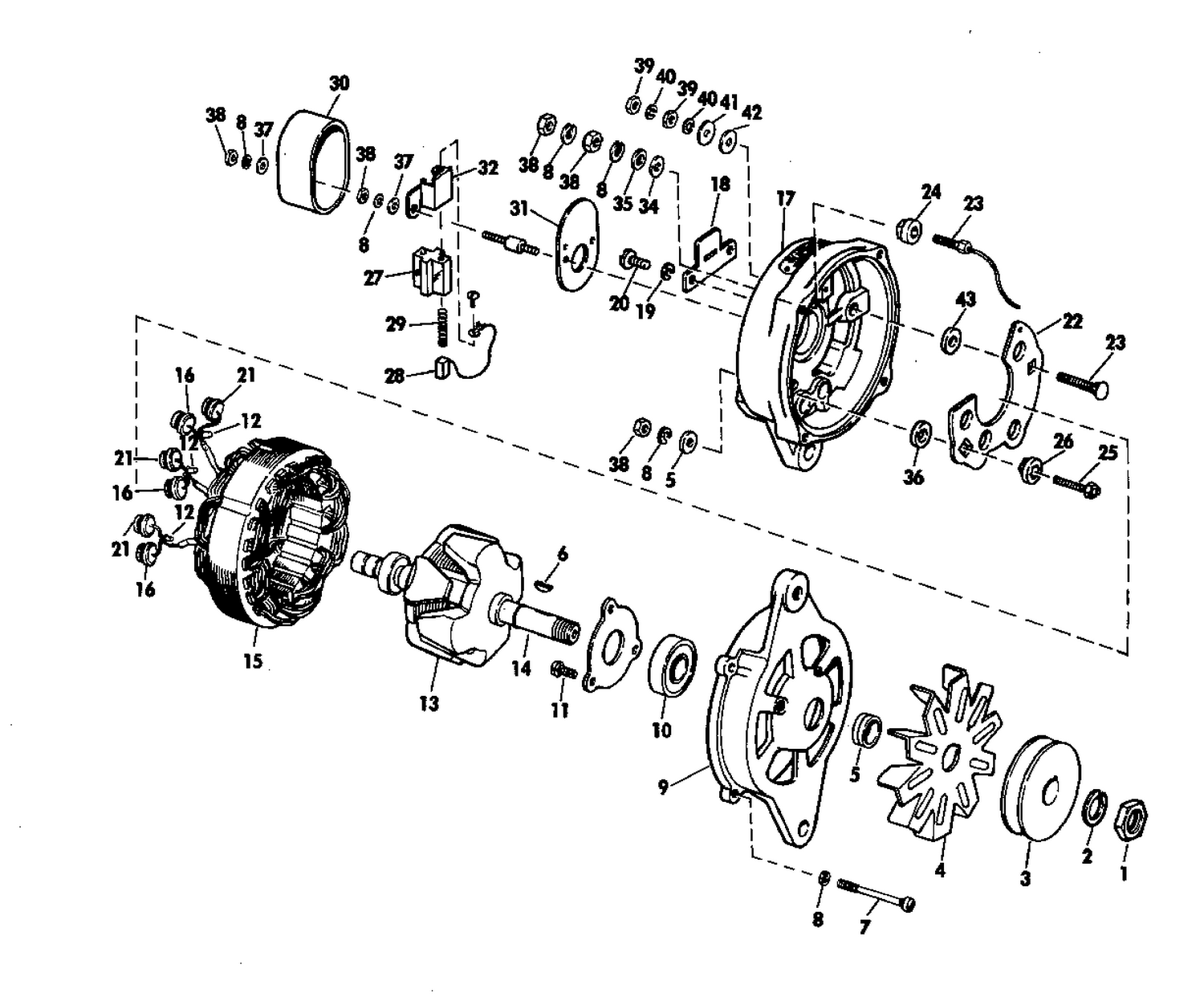

| Ref | Part Number | Description |
|---|
| 1 |
0982275 |
NUT & L'WASHER ASSY This part replaces 0311311. |
| 2 |
0982275 |
NUT & L'WASHER ASSY This part replaces 0311316. |
| 3 |
0311312 |
PULLEY, Drive |
| 4 |
0312485 |
FAN, Ventilating |
| 5 |
0312487 |
RETAINER, Felt washer |
| 6 |
0311315 |
KEY, Rotor shaft |
| 7 |
0312488 |
THRU BOLT PACKAGE |
| 9 |
0381468 |
HD ASSY, Drive end |
| 12 |
0382009 |
EVELET PACKAGE |
| 13 |
0382004 |
ROTOR & BEARING ASSEMBLY |
| 14 |
0311306 |
SNAP RING |
| 15 |
0382003 |
RECTIFIER,Positive |
| 16 |
0380204 |
RECITIFIER,Positive |
| 17 |
0382007 |
HEAD ASSEMBLY,Slip ring end |
| 20 |
SCREW,Insulation,#10-32 |
Ref: 21 0380205 RECITIFER,Negative 0380205 |
| 22 |
0383897 |
PL & RECT ASSY, Pos This part replaces 0313045. |
| 27 |
0382005 |
BR HLDRS ASSY |
| 30 |
0981188 |
COVER & STUD ASSY This part replaces 0313046. |
| 31 |
0313047 |
PL, Back-up, br bldr |
| 38 |
0132520 |
NUT |
| 0381519 |
0381519 |
ALTERNATOR ASSEMBLY |
