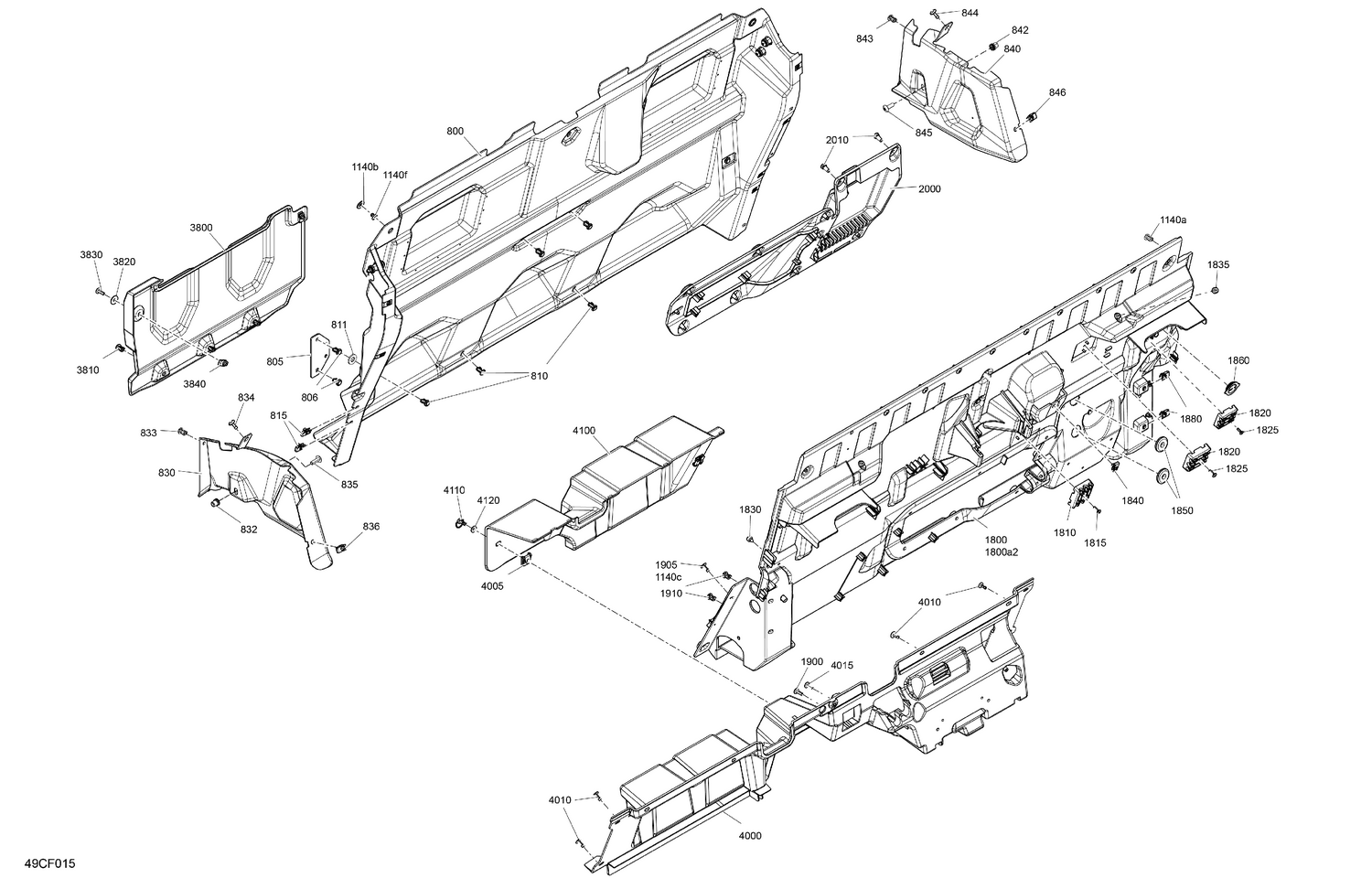

| Ref | Part Number | Description |
|---|
| 800 |
715008394 |
Central Rear Body Panel Deflector Kit |
| 805 |
707900469 |
Plate |
| 806 |
293150230 |
Tuflok Plastic Rivet |
| 810 |
293150230 |
Tuflok Plastic Rivet |
| 811 |
503192494 |
Washer |
| 815 |
250100198 |
Panel Nut M6 X 1.0 |
| 830 |
707900994 |
LH Lower Panel |
| 832 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 833 |
293150230 |
Tuflok Plastic Rivet |
| 834 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 835 |
250000874 |
Torx Truss M8 X 25 |
| 836 |
250100198 |
Panel Nut M6 X 1.0 |
| 840 |
707900995 |
RH Lower Panel |
| 842 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 843 |
293150230 |
Tuflok Plastic Rivet |
| 844 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 845 |
250000874 |
Torx Truss M8 X 25 |
| 846 |
250100198 |
Panel Nut M6 X 1.0 |
| 1140a |
293150230 |
Tuflok Plastic Rivet |
| 1140b |
292001663 |
Flat Washer 8 mm, Nylon |
| 1140c |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 1800a2 |
707901101 |
Rear Upper Cab Panel |
| 1810 |
707900788 |
Hose Support |
| 1815 |
250000720 |
Torx Screw K50 X 16 |
| 1820 |
707900788 |
Hose Support |
| 1825 |
250000720 |
Torx Screw K50 X 16 |
| 1830 |
293830005 |
Rubber Bumper |
| 1835 |
293830005 |
Rubber Bumper |
| 1840 |
250100198 |
Panel Nut M6 X 1.0 |
| 1850 |
293720119 |
Grommet |
| 1860 |
293000125 |
Plug |
| 1880 |
250100198 |
Panel Nut M6 X 1.0 |
| 1900 |
250000722 |
Torx Screw M6 X 20 |
| 1905 |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 1910 |
293150230 |
Tuflok Plastic Rivet |
| 2000 |
707900742 |
Rear Access Cover |
| 2010 |
250000712 |
Torx Screw M6 X 20 |
| 3800 |
707900996 |
Rear Panel |
| 3810 |
293150230 |
Tuflok Plastic Rivet |
| 3820 |
250200162 |
Flat Washer M6.6 X 22 |
| 3830 |
250000722 |
Torx Screw M6 X 20 |
| 3840 |
250100198 |
Panel Nut M6 X 1.0 |
| 4000 |
707901242 |
Lower Rear Cab Panel |
| 4005 |
705002651 |
Quarter Turn Nut |
| 4010 |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 4015 |
250000722 |
Torx Screw M6 X 20 |
| 4100 |
707900743 |
Battery Cover |
| 4110 |
705002649 |
Quarter Turn Screw |
| 4120 |
708400286 |
Washer |
