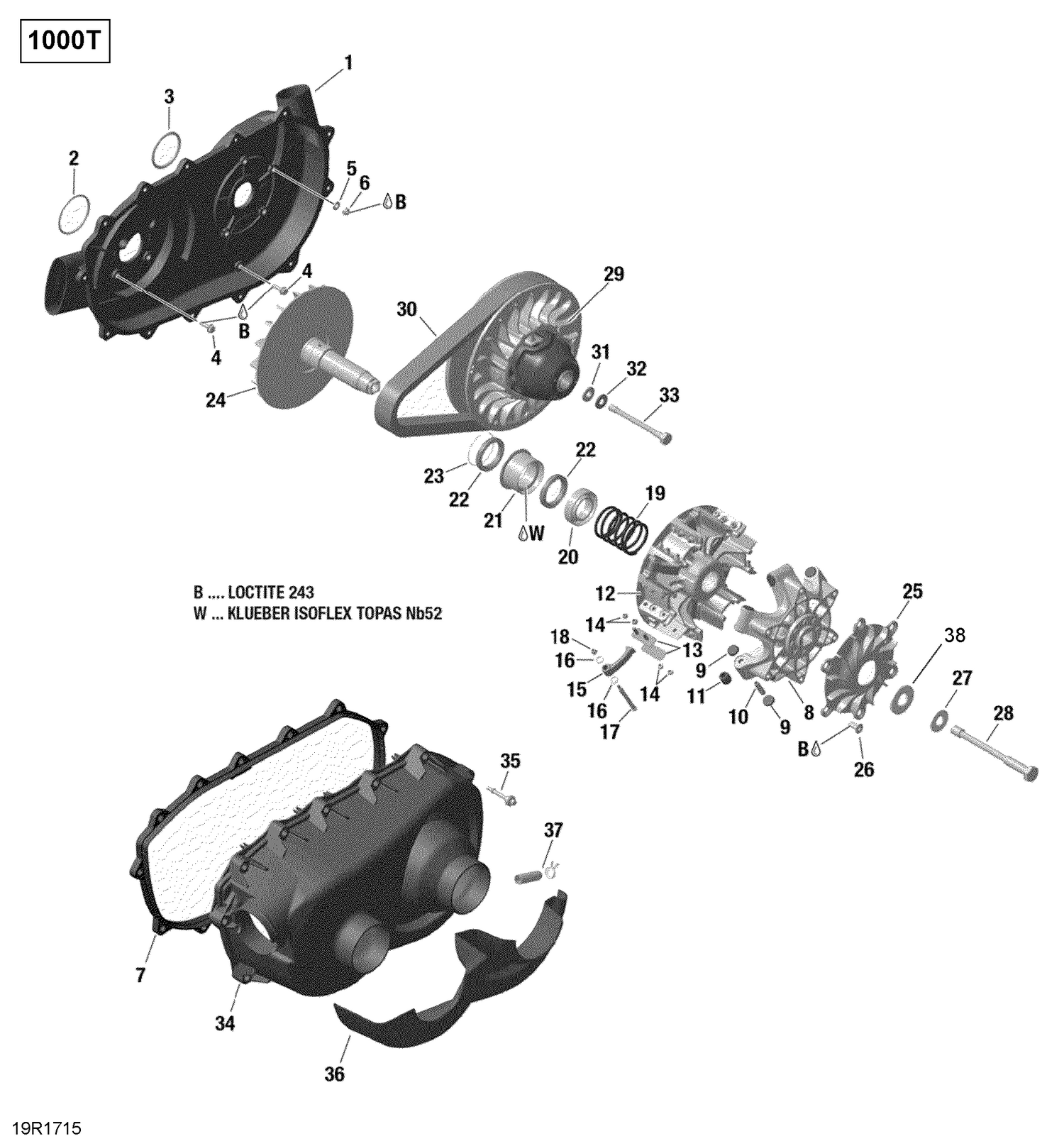

05- Transmission - Turbo
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420612304 | CVT Air Guide This part replaces 420611409. |
| 2 | 420430409 | O-Ring This part replaces 420430408. |
| 3 | 420631089 | O-Ring This part replaces 420631088. |
| 4 | 420441311 | Hex.Screw M6 X 20 |
| 5 | 224061121 | Flat Washer |
| 6 | 232561434 | Elastic Stop Nut M6 |
| 7 | 420430126 | Gasket |
| 9 | 420281296 | Slider Shoe Set |
| 10 | Not | Available As Spare Part - Roller Axle |
| 11 | Not | Available As Spare Part - Roller |
| 13 | 420651763 | Slide Plate |
| 14 | 232551414 | Elastic Stop Nut M5 |
| 15b | Not | Available As Spare Part - Lever |
| 16 | Not | Available As Spare Part - Thrust Washer |
| 17 | Not | Available As Spare Part - Screw |
| 18 | Not | Available As Spare Part - Lock Nut M5 |
| 19 | 420238615 | Compression Spring, Drive Pulley |
| 20 | 420627578 | Seat Spring This part replaces 420627577. |
| 21 | 420257191 | Drive Pulley Clutch |
| 22 | 420632377 | Ball Bearing |
| 23 | 420245951 | Retaining Ring |
| 24 | 420280579 | Inner Half |
| 25 | 420864910 | Fan |
| 26 | 420641407 | Flat Head Screw M8 X 20 |
| 27 | 420245690 | Washer |
| 28 | 420841091 | Hex. Screw M14 X 1.5 X 153.5 |
| 30 | 422280367 | V Belt This part replaces 715900212. |
| 31 | 420427770 | Rondelle De Butée |
| 32 | 420445441 | Spring Washer |
| 33 | 420441485 | Hex. Screw M10 X 110 |
| 35 | 420440568 | Hex Screw M6 X 30 This part replaces 420440567. |
| 36 | 715900358 | Heat Protection Mat |
| 37 | 707001179 | Drain Plug Kit |
