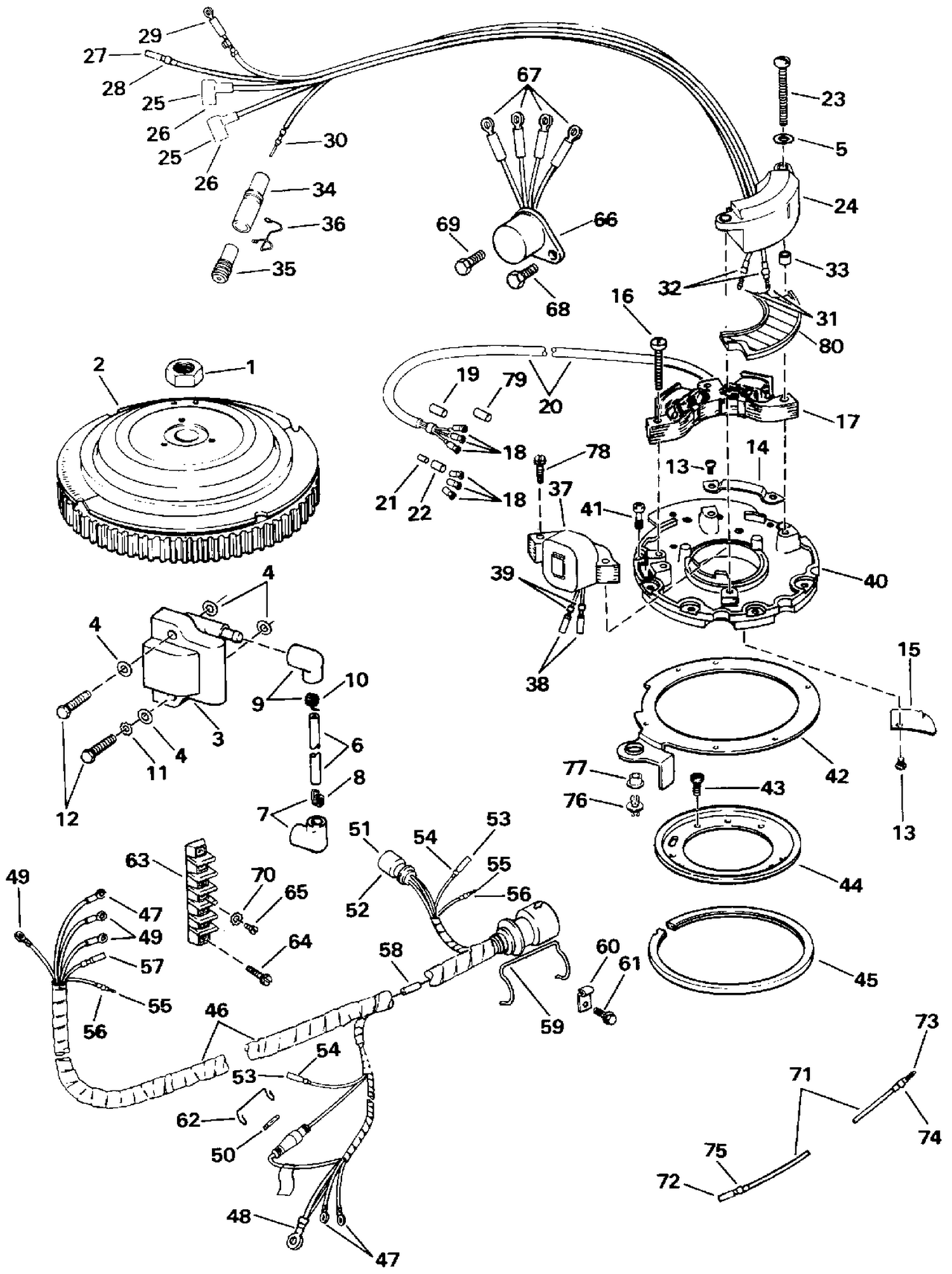

| Ref | Part Number | Description |
|---|
| 1 |
0326111 |
NUT |
| 2 |
0583696 |
FLYWHEEL ASSEMBLY |
| 3 |
0582508 |
COIL ASSY |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 12 |
0328726 |
SCREW (Use existing coil screw) |
| 13 |
0303212 |
VIS, collier & capot |
| 14 |
0511458 |
COLLIER, fils |
| 15 |
0511459 |
CACHE, fils |
| 17 |
0584341 |
STATOR ASSEMBLY |
| 20 |
0511601 |
SLEEVE, Leads |
| 23 |
0330184 |
VIS, montage pompe This part replaces 0306259. |
| 24 |
0584489 |
IGNITION MODULE This part replaces 0584329. |
| 33 |
0513029 |
SPACER |
| 36 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 37 |
0584333 |
CHARGE COIL & LAM. ASSY. |
| 40 |
0583285 |
PLAT & SLEEVE ASSY. |
| 41 |
0511460 |
VIS, dispositif de retenue |
| 42 |
0334193 |
RETAINER, Ign. plate assy. |
| 43 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 44 |
0332063 |
PLATE, Support |
| 45 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 46 |
0584386 |
MOTOR CABLE ASSY. This part replaces 0584227. |
| 61 |
0313117 |
SCR,Clamp,eng cable |
| 63 |
0511563 |
TERMINAL BLOCK |
| 65 |
0329182 |
VIS, borne |
| 66 |
0581778 |
REDRESSEUR |
| 68 |
0328731 |
VIS, câble de verrouillage |
| 69 |
0314576 |
SCREW This part replaces 0328720. |
| 71 |
0583675 |
LEAD ASSY., Module to temp. switch |
| 76 |
0330368 |
BUSHING, Timber base |
| 77 |
0329168 |
SOCKET |
| 78 |
0320504 |
SCREW, Bracket to carburetor |
| 79 |
0328074 |
CACHE, cosse prise |
