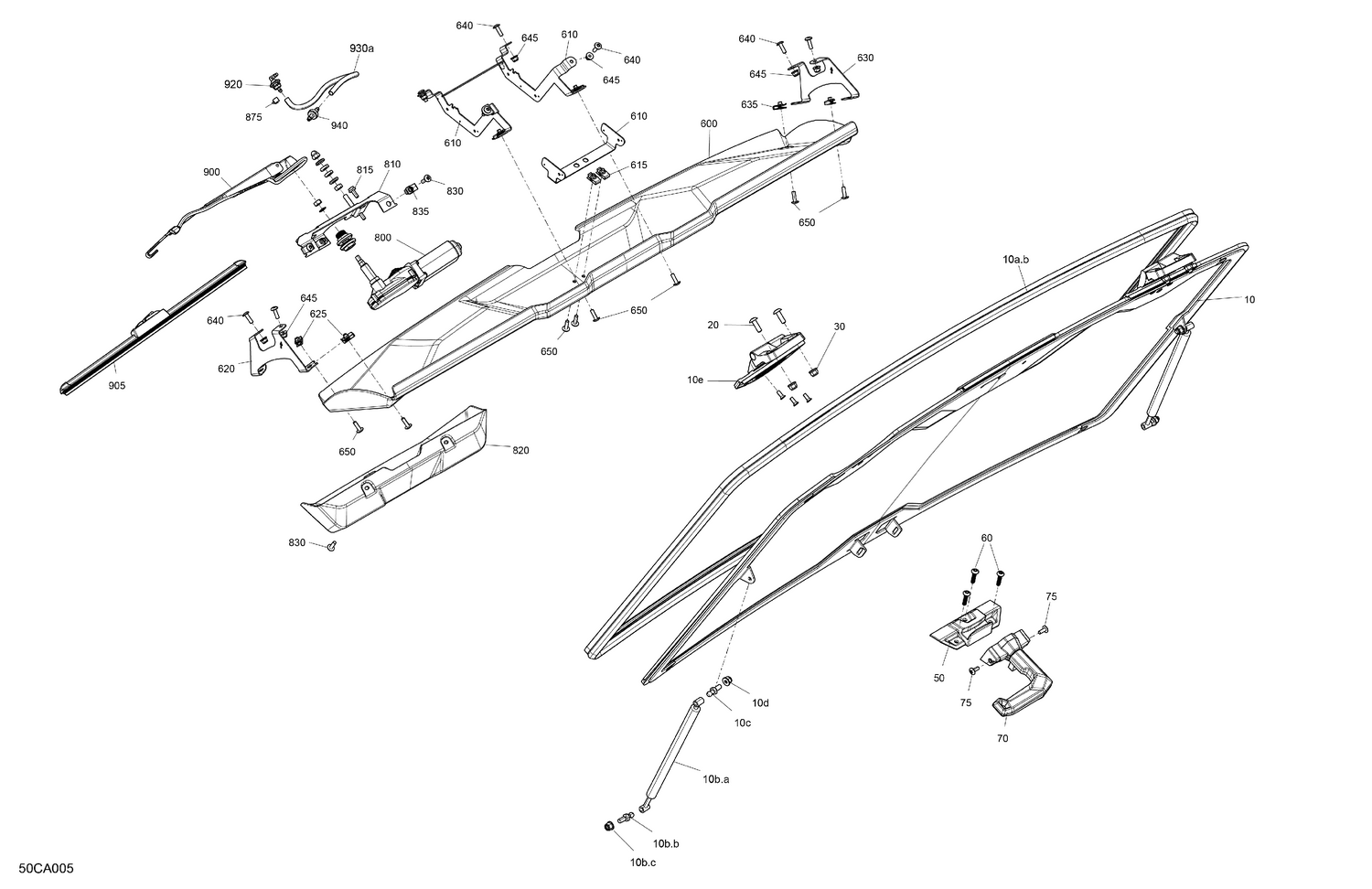

07- Body - Windshield
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002942 | Windshield Ass'y |
| 10c | 250300039 | Ball Head Stud |
| 10d | 233281414 | Hex. Flange Elastic Nut M8 |
| 10e | 705800082 | Windshield Hinges |
| 20 | 250000874 | Torx Truss M8 X 25 |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 50 | 705800008 | Handle Anchor |
| 60 | 250001007 | Screw Torx M6.81 X 30 |
| 70 | 705800085 | Mobile Handle Ass'y |
| 75 | 250000881 | Torx Truss M8 X 16 |
| 600 | 715006526 | Radio Support Kit |
| 610 | 705800060 | Support |
| 615 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 620 | 705800108 | LH Support |
| 625 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 630 | 705800109 | RH Support |
| 635 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 640 | 250000722 | Torx Screw M6 X 20 |
| 645 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 650 | 250000722 | Torx Screw M6 X 20 |
| 800 | 705010657 | Wiper Motor |
| 810 | 705800073 | Cover Support Ass'y |
| 815 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 820 | 705800805 | Wiper Motor Trim This part replaces 705800072. |
| 830 | 250000722 | Torx Screw M6 X 20 |
| 835 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 875 | 414554800 | Spring Clamp |
| 900 | 705010656 | Wiper Arm |
| 905 | 705011443 | Winshield Wiper |
| 920 | 705800103 | Connecteur Coudé 90° |
| 930a | 219704389 | Polyurethane Hose 4000MM Long |
