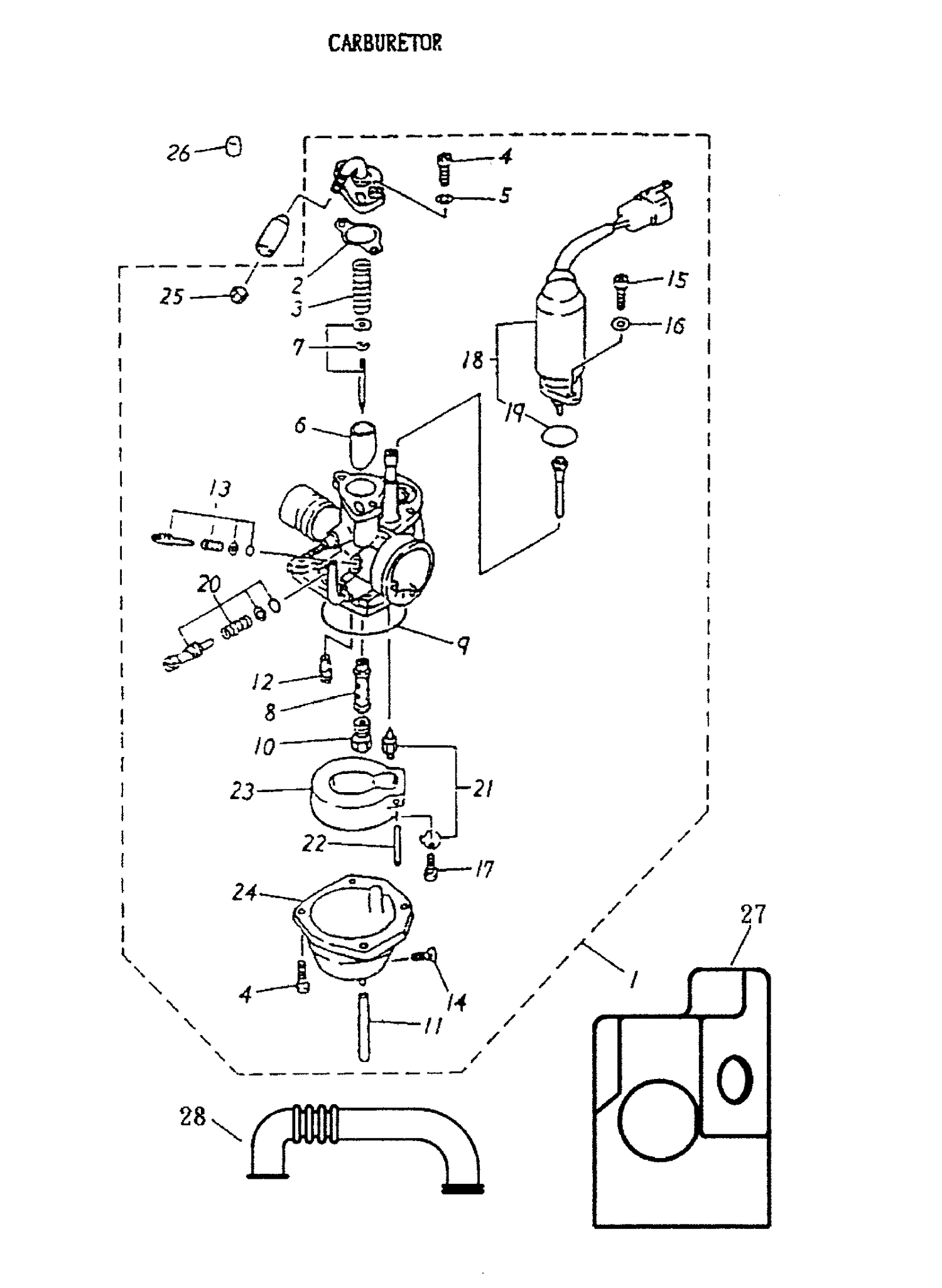

02- Carburetor
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A1610011600A | Carburetor Ass'y |
| 2 | A16101116000 | Carburetor Gasket |
| 3 | A16102116000 | Throttle Valve Spring |
| 4 | A9350004014 | PAN PHILLIPS BOLT M4 X 14 - Call your local BRP dealership |
| 5 | A941110407010 | Spring Washer |
| 6 | A16103116000 | THROTTLE VALVE - Call your local BRP dealership |
| 7 | A16104116000 | NEEDLE SET - Call your local BRP dealership |
| 8 | A16105116000 | NEEDLE NOZZLE - Call your local BRP dealership |
| 9 | A16106116000 | FLOAT CHAMBER SEAL - Call your local BRP dealership |
| 10 | A16108116000 | Main Nozzle, 75 |
| 11 | A16109116000 | Over Flow Tube |
| 12 | A16110116000 | PILOT JET - Call your local BRP dealership |
| 13 | A16115116000 | AIR ADJUST SCREW SET - Call your local BRP dealership |
| 14 | A16111116000 | Drain Plug |
| 15 | 208640860 | PHILLIPS SCREW M4 X 8 - Call your local BRP dealership This part replaces A9350004008. |
| 16 | A941110406510 | Spring Washer |
| 17 | A9350003008 | Pan Phillips Bolt M3 X 6 |
| 18 | A17215116000 | PLUNGER STARTER - Call your local BRP dealership |
| 19 | A91314116000 | OIL RING - Call your local BRP dealership |
| 20 | A16114116000 | Throttle Screw Set |
| 21 | A1611711600A | NEEDLE VALVE ASS'Y - Call your local BRP dealership |
| 22 | A16119116000 | Float Pin |
| 23 | A16118116000 | FLOAT - Call your local BRP dealership |
| 24 | A16107116000 | Float Chamber |
| 25 | A16113116000 | Cable Adjust Nut |
| 26 | A42615145001 | PURGE HOLE PLUG - Call your local BRP dealership |
| 27 | A16140116000 | CARBURETOR SHROUD - Call your local BRP dealership |
