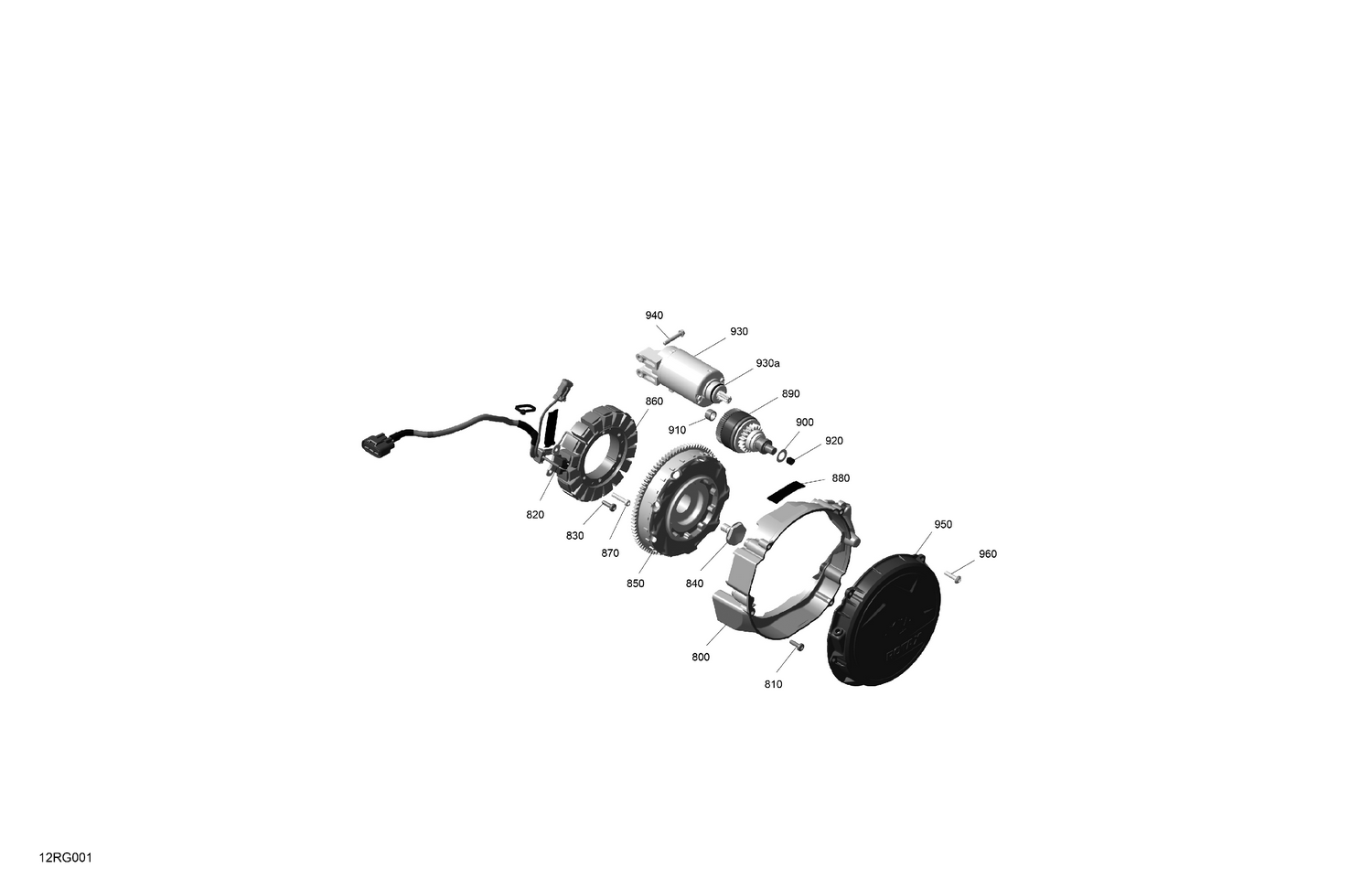

01- ROTAX - Magneto and Electric Starter
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 420911854 | Ignition Housing |
| 810 | 420441386 | Flanged Torx Screw M6 X 20 |
| 820 | 420966844 | Pickup Ass'y |
| 830 | 420441386 | Flanged Torx Screw M6 X 20 |
| 840 | 420840851 | Collar Hex Screw M12 X 25 |
| 850 | 420866052 | Magneto Flywheel |
| 860 | 420864425 | Stator Plate Ass'y 12V/580W |
| 870 | 420540001 | Allen Screw M6 X 30 |
| 880 | 420201360 | Adhesive Pad, 1.6 mm X 20 mm X 60 mm |
| 890 | 420888044 | E-Starter Drive Ass'y |
| 900 | 420827261 | Thrust Washer 12,5/21,5/1 |
| 910 | 420232482 | Needle Bushing |
| 920 | 420938204 | Spring |
| 930a | 420250141 | O-Ring |
| 940 | 420440274 | Flanged Torx Screw M6 X 35 |
| 950 | 420912125 | Starter Housing |
