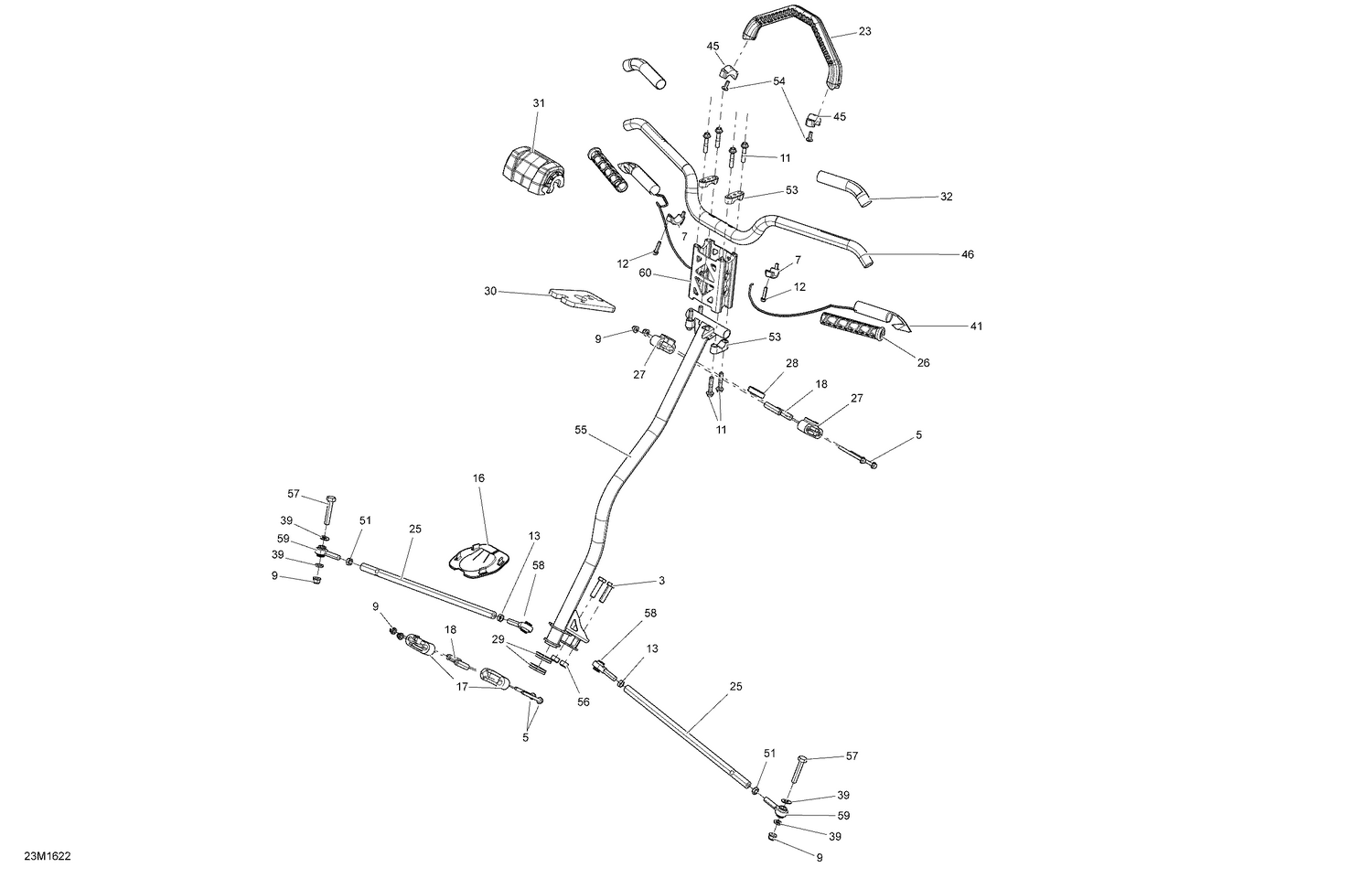

07- Steering - 800R PTEK
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 3 | Not | Available As Spare Part - Hex. Screw M10 X 1.5 X 40 |
| 5 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 7 | 719000049 | Clamps |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 11 | 250000352 | Hex. Flange Screw M8 X 40 |
| 12 | 250000447 | Hex. Flange Screw M6 X 25 |
| 13 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 16 | 506152163 | Plate |
| 17 | 506152217 | Lower Half-Housing |
| 18 | 506152297 | Housing Bushing |
| 23 | 506152460 | Moulding Strap |
| 25 | 506152482 | Tie-Rod |
| 26 | 506152486 | Grip |
| 27 | 506152508 | Upper Half-Housing |
| 28 | 506152509 | Upper Anti-Vibration Gasket |
| 29 | 506152518 | Lower Vibration Ring |
| 30 | 506152521 | Bushing |
| 31 | 506152541 | Deep Black, Steering Pad |
| 32 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 39 | 506152582 | Washer |
| 41 | 506152603 | Heating Element 28 WATT This part replaces 506152602. |
| 45 | 506152703 | Black Support Plate |
| 46 | 506152709 | Handle Bar, Non Dyed Clear Anodizing |
| 51 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 53 | 506152555 | Steering Support |
| 53 | 506152751 | Steering Support |
| 54 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 55 | 506152962 | Steering Column This part replaces 506152839. |
| 56 | 233601466 | Elastic Locking Nut M10 |
| 57 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 58 | 506152081 | LH Thread Ball Joint |
| 59 | 506152019 | RH Threaded Ball Joint |
