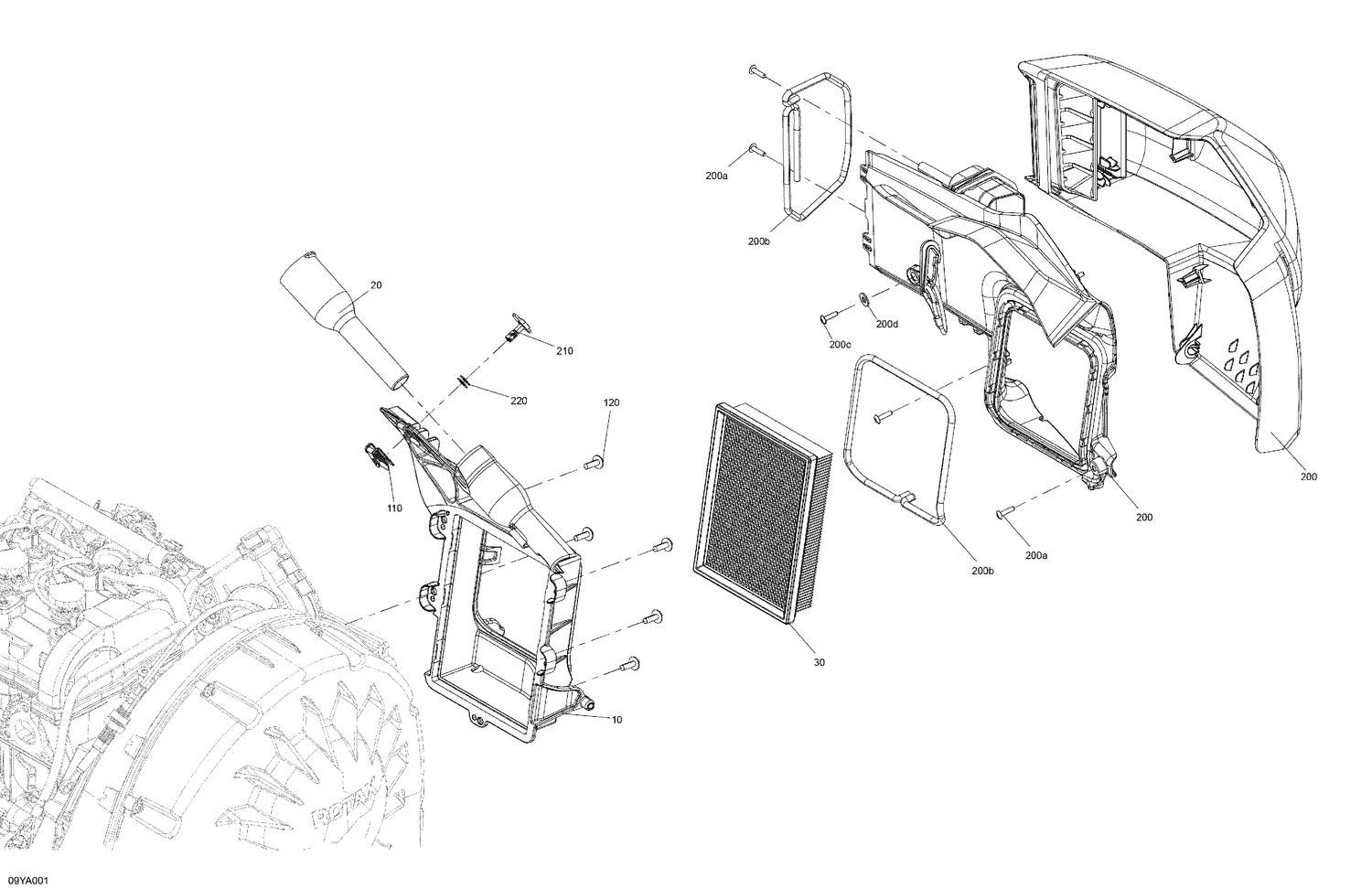

02- Engine - RH Air Intake
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706600370 | Baseplate |
| 20 | 709001045 | Gaz Filler Neck |
| 30 | 707800306 | Air Filter |
| 110 | 705002651 | Quarter Turn Nut |
| 120 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 200a | 250000759 | Torx Truss Pt K40 X 16 |
| 200b | 707800817 | Neoprene Seal |
| 200c | 250000759 | Torx Truss Pt K40 X 16 |
| 200d | 224061121 | Flat Washer |
| 210 | 705013609 | Quarter-Turn Screw |
