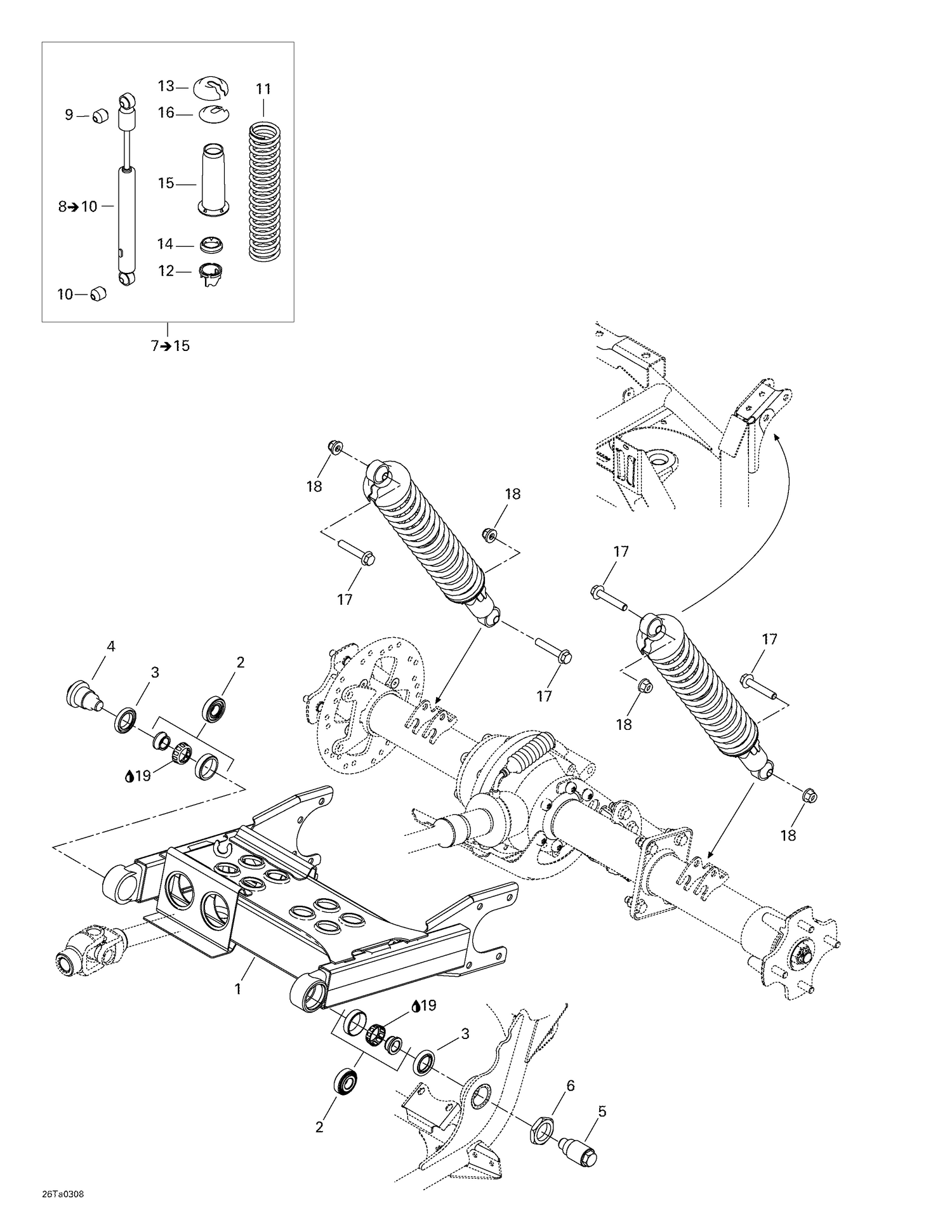

08- Rear Suspension
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706000217 | Swing arm |
| 2 | 706000169 | CONE BEARING - Call your local BRP dealership |
| 3 | 706000010 | OIL SEAL - Call your local BRP dealership |
| 4 | 706000092 | RH Pivot Bolt |
| 5 | 706000093 | LH PIVOT BOLT - Call your local BRP dealership |
| 6 | 706000006 | HEX. JAM NUT - Call your local BRP dealership |
| 9 | 706000146 | UPPER BUSHING - Call your local BRP dealership |
| 10 | 706000147 | Lower Bushing |
| 11 | 706000236 | Yellow Rear spring |
| 12 | 706000073 | ADJUSTER RING - Call your local BRP dealership |
| 13 | 706200881 | Spring Stopper This part replaces 503140600. |
| 14 | 706000197 | Spring Seat |
| 15 | 706000032 | Protector |
| 16 | 706200785 | Cap This part replaces 503141600. |
| 17 | 207605544 | Hex. Flange Screw M10 X 55 |
| 18 | 233201414 | Hex. Flange Elastic Nut M10 |
