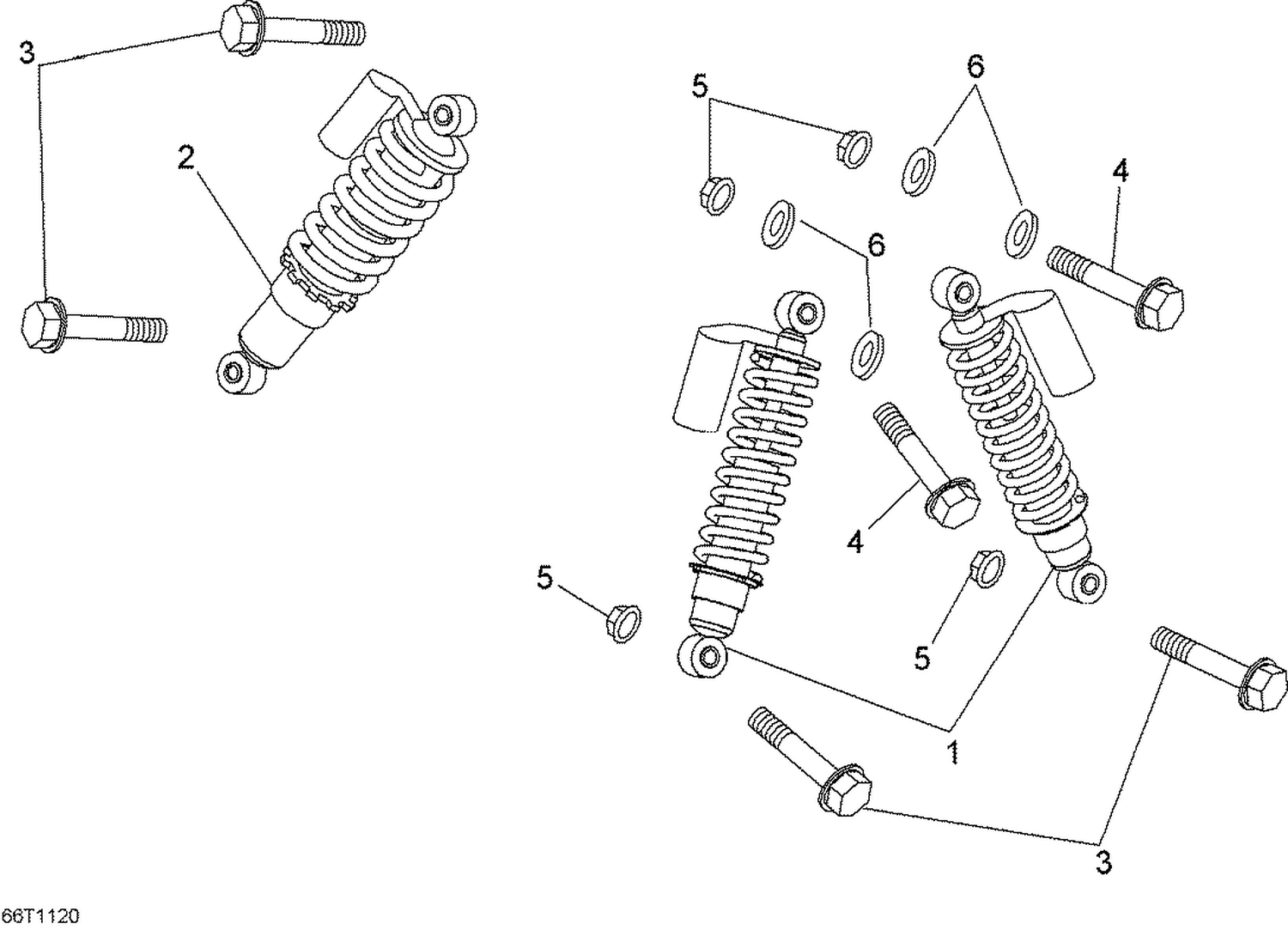

07- Shocks
Parts (5)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V52500DGF02HLL | SHOCK ABSORBER FRONT - Call your local BRP dealership |
| 2 | V52400DGF04HLL | Shock Absorber Rear This part replaces V52400DGF03HLL. |
| 3 | V9600010040LL | Hex. Flange Bolt |
| 4 | 207605544 | Hex. Flange Screw M10 X 55 |
| 5 | 232501416 | Elastic Flange Nut M10 |
