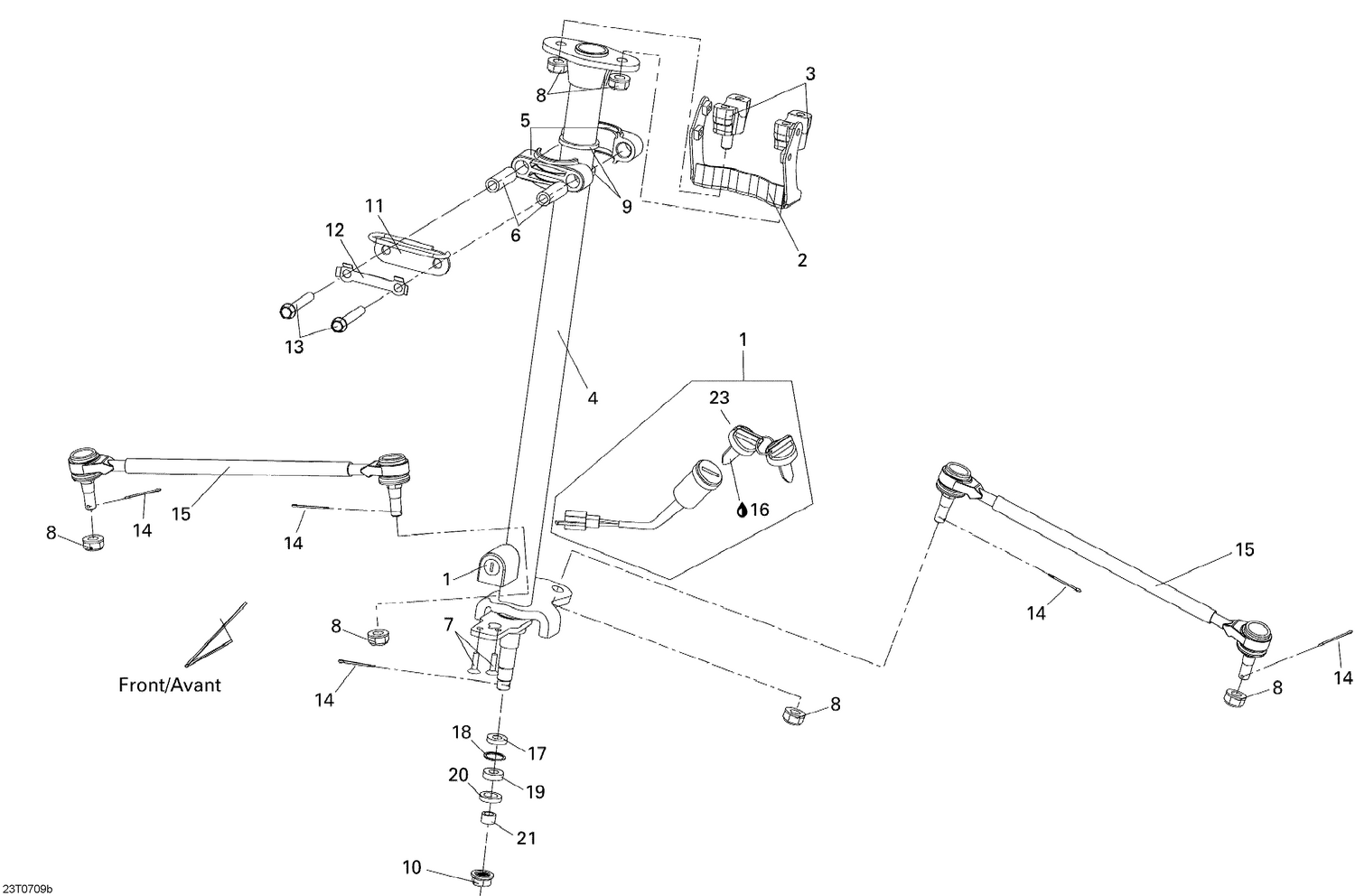

07- Steering Linkage
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S35010RCA000 | IGNITION SWITCH AND KEY SET - Call your local BRP dealership |
| 2 | S53106RCA000 | SPEEDOMETER BRACKET - Call your local BRP dealership |
| 3 | S53121RCA000 | HANDLE BAR BOTTOM CLAMP - Call your local BRP dealership |
| 4 | S53200RCA000 | Steering Column |
| 5 | S53202RCA000 | Half Bushing |
| 6 | S53203RCA000 | Bushing |
| 7 | S90164X01000 | Flat Lock Screw M6 X 12 |
| 8 | S90304M9Q000 | FLANGE U NUT - Call your local BRP dealership |
| 9 | S91208RCA000 | Oil Seal |
| 10 | S90305GW0901A | SELF LOCK NUT 14 MM - Call your local BRP dealership |
| 11 | S53204RCA000 | Steering Column Holder Plate |
| 12 | S53206RCA000 | Lock Tab |
| 13 | S958010806007 | Flanged Bolt M8 X 60 |
| 14 | S9420125250 | Split Pin |
| 15 | S50258RCA000 | Tie-rod Ass'y |
| 16 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 17 | S91210RCA000 | Oil Seal |
| 18 | S9452032000 | Circlip |
| 19 | S961306002310 | Ball Bearing |
| 20 | S91211RCA000 | Oil Seal |
| 21 | S53207RCA000 | Steering Column Collar |
| 23 | S35115RCA0000A | BLANK IGNITION KEY A - Call your local BRP dealership |
| 23 | S35115RCA0000B | BLANK IGNITION KEY B - Call your local BRP dealership |
| 23 | S35115RCA0000C | BLANK IGNITION KEY C - Call your local BRP dealership |
