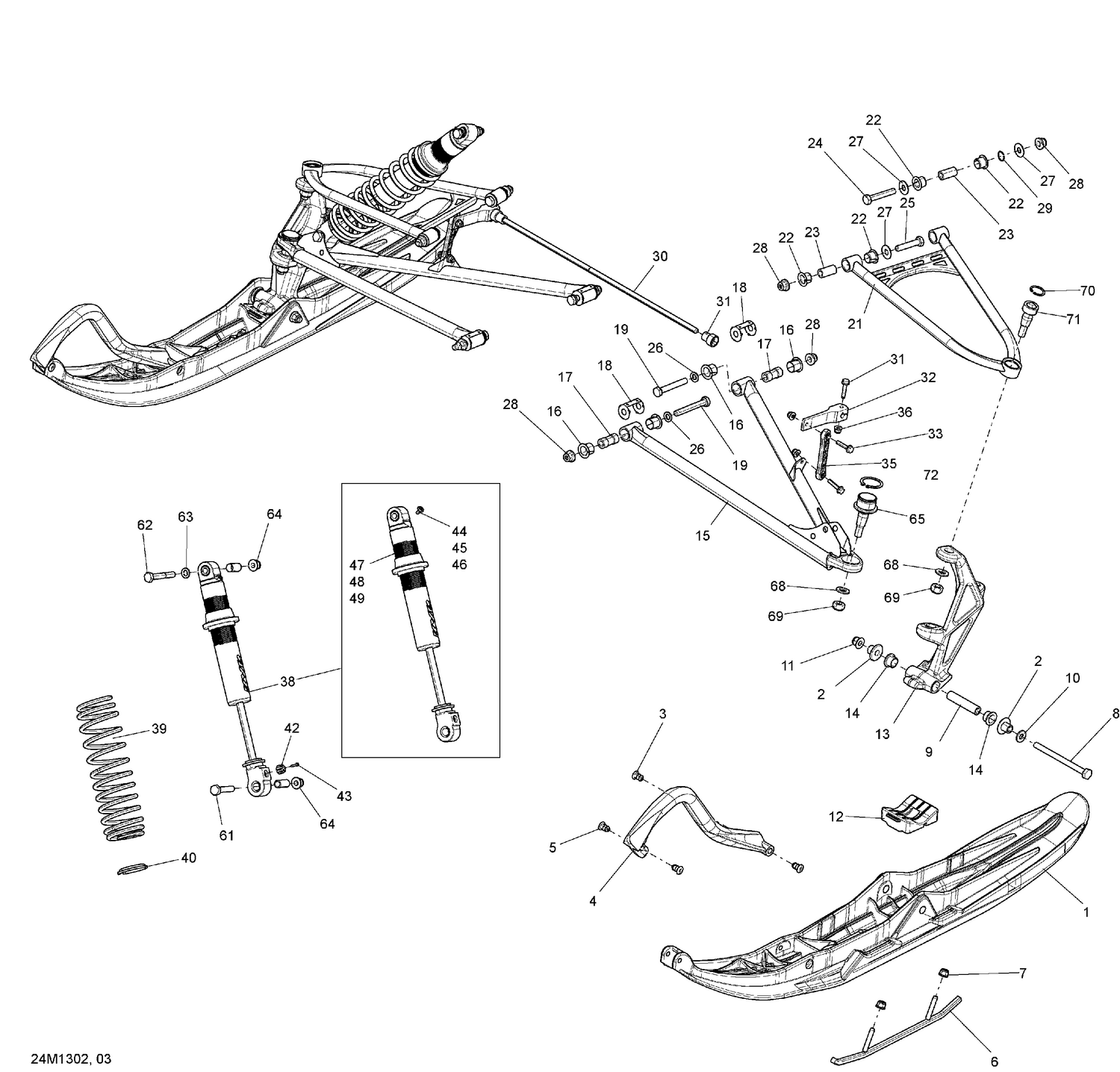

07- Front Suspension And Ski
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505072854 | Deep Black, LH Pilot 5.7 Ski This part replaces 505072942. |
| 1 | 505072855 | Deep Black, RH Pilot 5.7 Ski This part replaces 505072943. |
| 2 | 505071781 | Ski Bushing |
| 3 | 505071812 | Retainer 17mm long |
| 4 | 505070917 | Yellow Handle |
| 5 | 505072133 | Retainer 23mm Long |
| 8 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003054. |
| 9 | 506133300 | Spacer |
| 10 | 503192496 | Washer |
| 11 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 12 | 505072594 | Ski Stopper |
| 13 | 505073173 | BLACK LH SKI LEG - Call your local BRP dealership |
| 13 | 505073174 | BLACK RH SKI LEG - Call your local BRP dealership |
| 14 | 505072690 | Leg Bushing |
| 16 | 505072208 | Bushing |
| 17 | 505072209 | Sleeve This part replaces 505072393. |
| 18 | 505072634 | Wear Plate |
| 22 | 505072250 | Bushing |
| 23 | 505072143 | Sleeve |
| 24 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 25 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 26 | 503189564 | Washer |
| 27 | 505072392 | Washer |
| 28 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 29 | 505072448 | O-Ring |
| 33 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 34 | 233261466 | Hex. Flange Elastic Nut M6 |
| 35 | 505072204 | Sway Bar Double Joint Link |
| 36 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 37 | 233261466 | Hex. Flange Elastic Nut M6 |
| 61 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 62 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 63 | 503189564 | Washer |
| 64 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 65 | 505073636 | Ball Joint This part replaces 505072682. |
| 68 | 503192491 | Washer |
| 69 | 232521464 | Hex Elastic Nut M12 X 1.25 |
