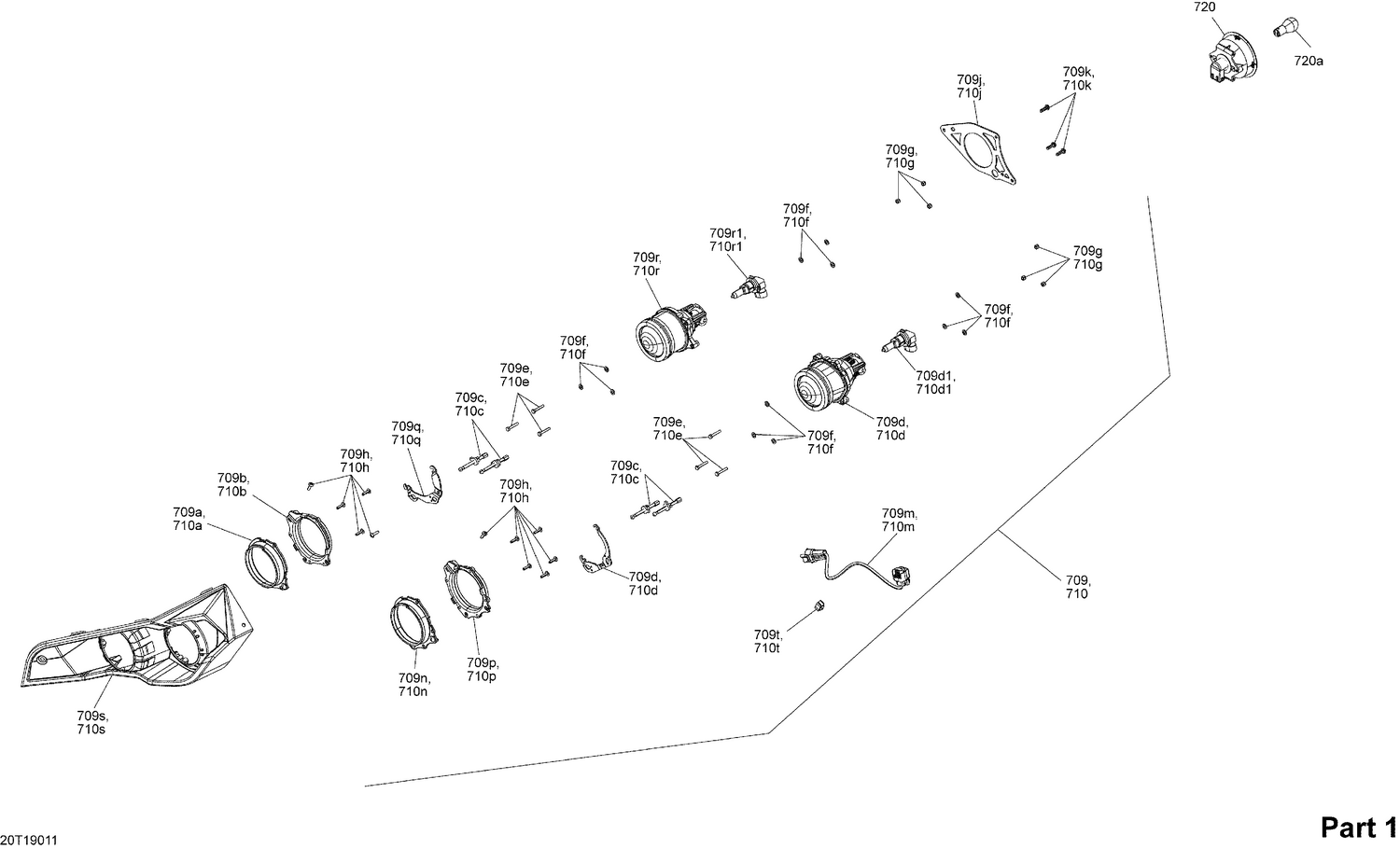

10- Electrical - 1000R EFI - Part 1
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 709a | 710001083 | LH Low Front Housing |
| 709b | 710001084 | LH Low Rear Housing |
| 709c | 710001147 | Setting Screw |
| 709d1 | 415129249 | Halogen Bulb |
| 709e | 207142544 | Hex. Screw M4 X 25 |
| 709f | 234051410 | Flat Washer M5 |
| 709g | 232541414 | Elastic Stop Nut M4 |
| 709h | 250000723 | Phillips Screw K40 X 16 |
| 709j | 705004309 | Painted Headlamp Support |
| 709k | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 709m | 710005944 | Light Harness |
| 709n | 710001087 | LH High Front Housing |
| 709p | 710001088 | LH High Rear Housing |
| 709q | 710005853 | LH High Light Support |
| 709r1 | 415129249 | Halogen Bulb |
| 709s | 705004508 | LH Front Facia |
| 709t | 414227300 | Clip |
| 710a | 710001081 | RH Low Front Housing |
| 710b | 710001082 | RH Low Rear Housing |
| 710c | 710001147 | Setting Screw |
| 710d | 710002524 | Low Beam Ass'y |
| 710d1 | 415129249 | Halogen Bulb |
| 710e | 207142544 | Hex. Screw M4 X 25 |
| 710f | 234051410 | Flat Washer M5 |
| 710g | 232541414 | Elastic Stop Nut M4 |
| 710h | 250000723 | Phillips Screw K40 X 16 |
| 710j | 705004309 | Painted Headlamp Support |
| 710k | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 710m | 710005944 | Light Harness |
| 710n | 710001085 | RH High Front Housing |
| 710p | 710001086 | RH High Rear Housing |
| 710q | 710005856 | RH High Light Support |
| 710r | 710002525 | High Beam Ass'y |
| 710r1 | 415129249 | Halogen Bulb |
| 710s | 705004509 | RH Front Facia |
| 710t | 414227300 | Clip |
