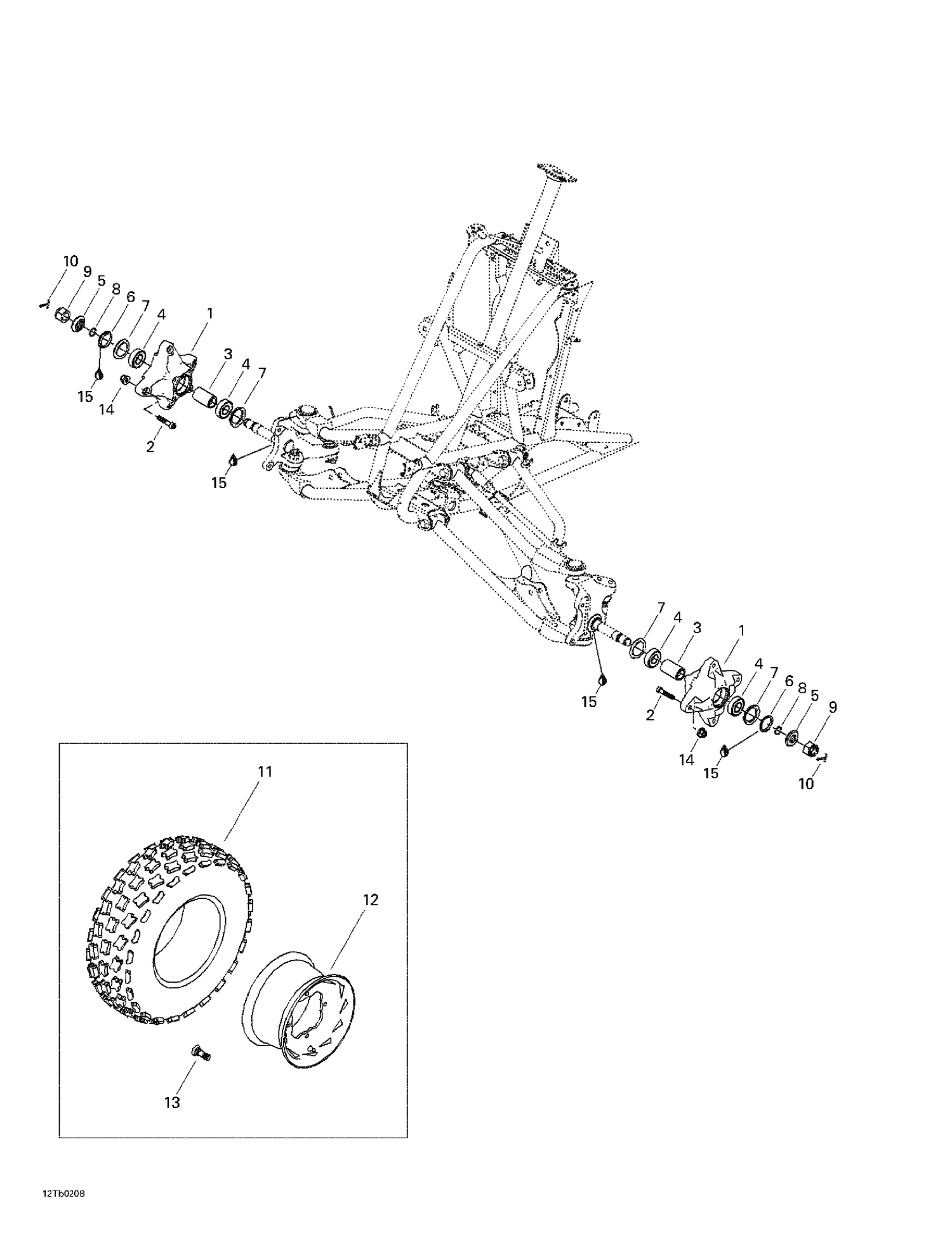

| Ref | Part Number | Description |
|---|
| 1 |
705400045 |
Wheel Hub |
| 2 |
205504044 |
SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership |
| 3 |
293900032 |
INSIDE BUSHING - Call your local BRP dealership |
| 4 |
293350024 |
Ball Bearing |
| 5 |
293900033 |
OUTSIDE BUSHING - Call your local BRP dealership |
| 6 |
705400056 |
WEAR RING - Call your local BRP dealership |
| 7 |
293250094 |
SEAL - Call your local BRP dealership |
| 8 |
293300058 |
O-RING - Call your local BRP dealership |
| 9 |
232291413 |
Hex. Flange Castellated Nut M18 |
| 10 |
371003400 |
Cotter Pin This part replaces 211400011. |
| 11 |
705400136 |
FRONT TIRE - Call your local BRP dealership |
| 12 |
705400137 |
RH FRONT RIM - Call your local BRP dealership |
| 13 |
705400193 |
Rim Valve With Cap This part replaces 705400067. |
| 14 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
