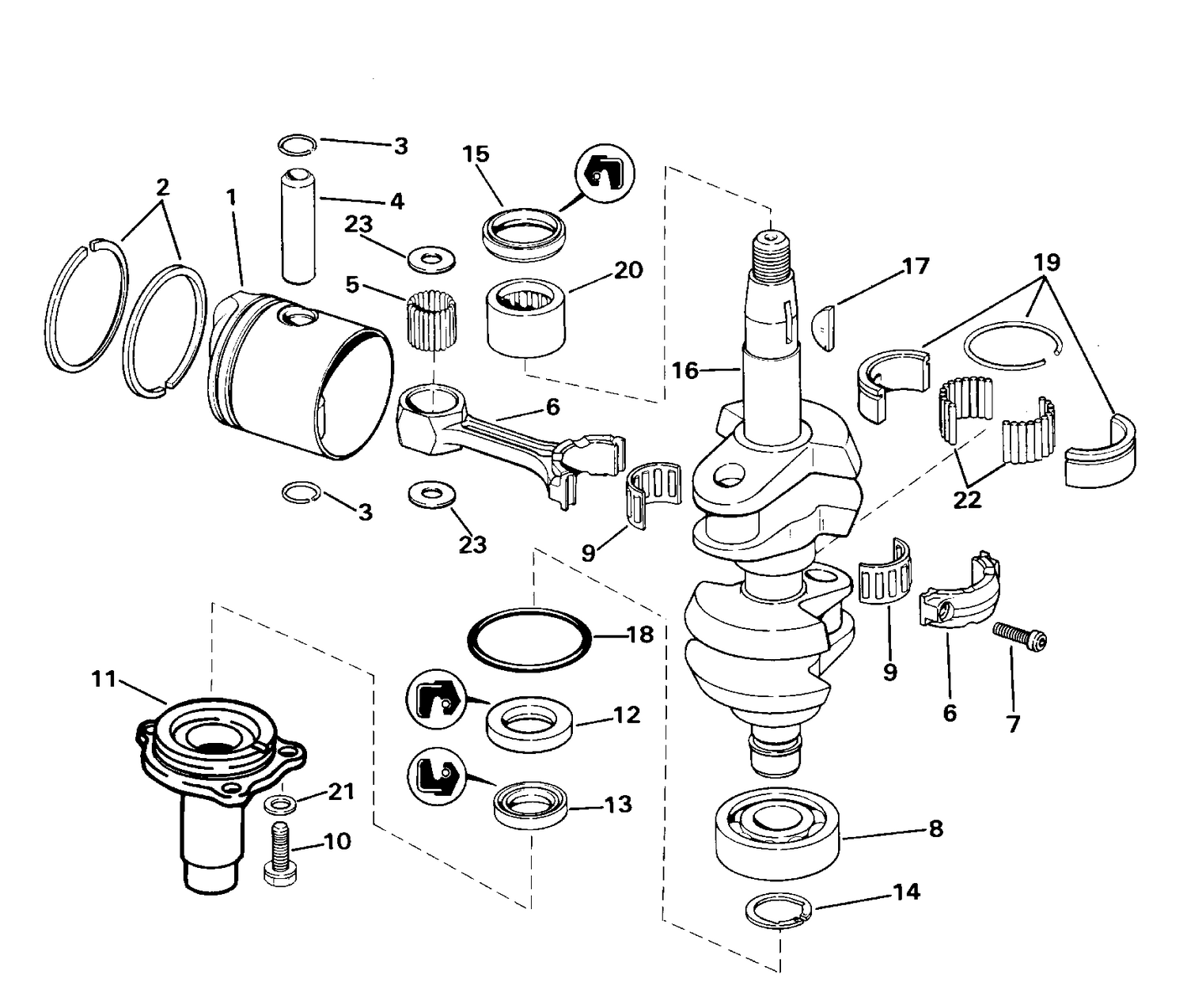

CRANKSHAFT & PISTON
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0325296 | WRIST PIN |
| 5 | 0393283 | BEARING, Wrist pin |
| 6 | 0396607 | CONNECTING ROD ASSEMBLY |
| 8 | 0385173 | BALL BEARING, Prop. shaft |
| 9 | 0395401 | BEARING SET |
| 11 | 0394327 | CRANK CASE HEAD |
| 14 | 0318641 | RETAINING RING, Ball bearing |
| 16 | 0435707 | CRANKSHAFT ASSY. |
| 18 | 0308458 | JOINT TORIQUE, tête carter-moteur |
| 19 | 0318863 | LINERS, Center bearing |
| 20 | 0386008 | BEARING ASSEMBLY CRANKSHAFT |
| 21 | 0329241 | RONDELLE This part replaces 0305981. |
| 22 | 0393804 | BEARING ASSEMBLY, Central |
