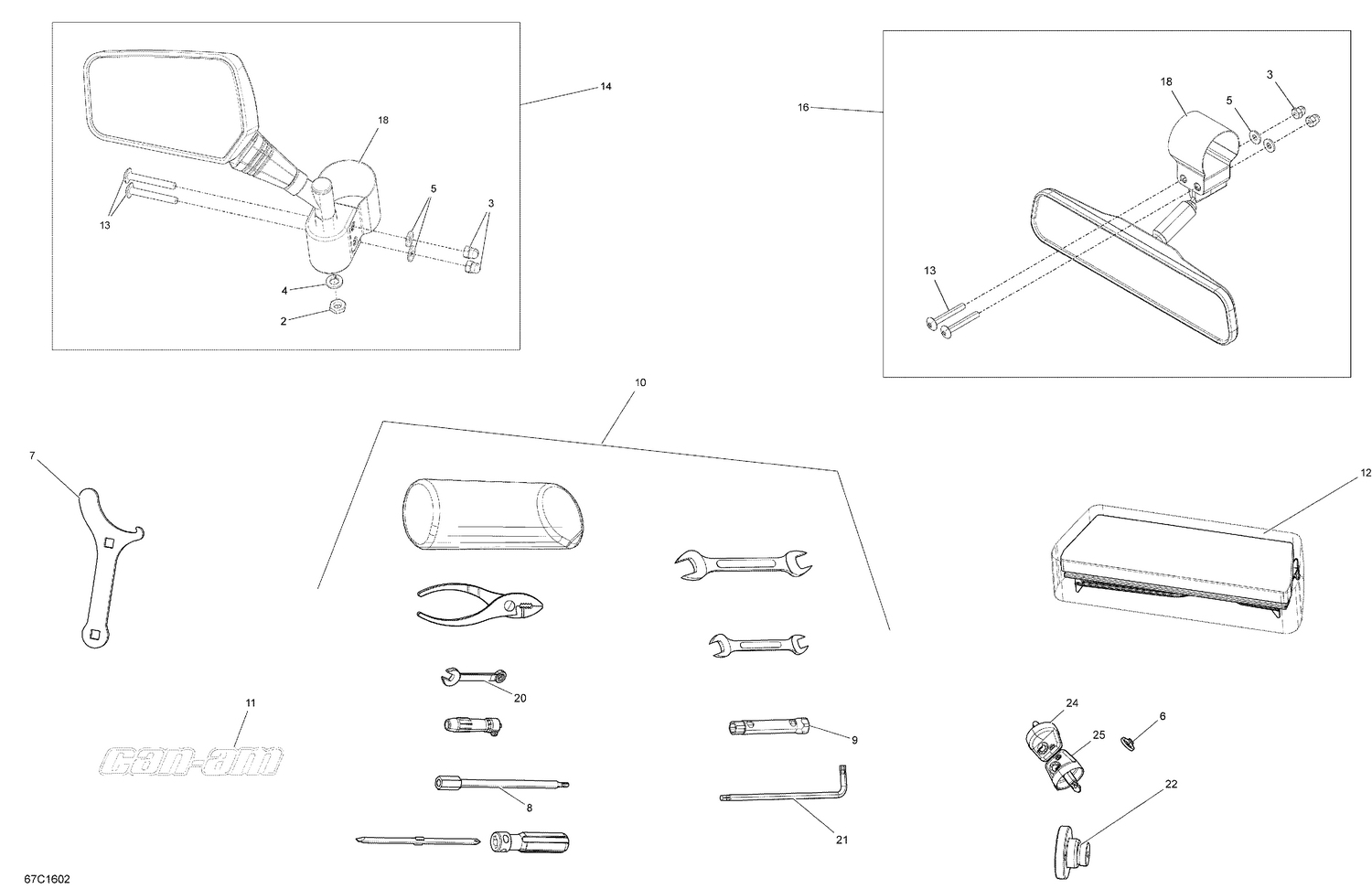

09- Mirrors and Tools
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 232180600 | Hex. Jam Nut M8 |
| 3 | 232361493 | Domed Nut M6 |
| 4 | 234181401 | Lock Washer 8 mm |
| 5 | 250200039 | Flat Washer |
| 6 | 293750001 | Tie Wrap 94 mm |
| 7 | 529000057 | Adjustment Wrench |
| 8 | 529000072 | Puller/Locking Tool |
| 9 | 529014900 | Socket Wrench 10/13 mm |
| 10 | 704700162 | Tool Kit |
| 13 | 250000748 | Torx Screw M6 X 45 |
| 18 | 708200185 | MIRROR CLAMP - Call your local BRP dealership |
| 20 | 708200338 | Wrench 8 mm |
| 21 | 708200340 | Torx Key T30 |
| 22 | 708200504 | Tool Kit CVT |
| 24 | 710000817 | Black, Electronic Key |
