| Ref | Part Number | Description |
|---|
| 1 |
0121354 |
MOUNTING SCREW, Instrument |
| 2 |
0122295 |
SCREW |
| 3 |
0122301 |
PLATE, Connector |
| 4 |
0122302 |
SCREW, Plate to panel |
| 5 |
0122303 |
CLAMP, Cable |
| 7 |
0172149 |
LEAD ASSEMBLY |
| 9 |
0172432 |
LIGHT HARNESS ASSY |
| 10 |
0172433 |
CABLE ASSEMBLY, On models w/oil pressure gaug e |
| 10 |
516010651 |
BRP Logo 20 MM x 2 MM |
| 15 |
704909041 |
Emblem Logo BRP 68 MM UV |
| 16 |
0304642 |
LOCKWASHER |
| 21 |
BULB |
Ref: 22 0172430 TACHOMETER & PANEL ASSEMBLY 0172430 |
| 23 |
0121354 |
MOUNTING SCREW, Instrument |
| 24 |
0122294 |
WASHER |
| 26 |
0980288 |
PANEL & FUSE COVER ASSY |
| 26 |
0980289 |
PANEL & FUSE COVER ASSY |
| 27 |
0172435 |
AMMETER |
| 28 |
0172436 |
AMMETER |
| 29 |
0122310 |
GROUND STRAP |
| 30 |
0172410 |
FUSE HOLDE ASSEMBLY |
| 30 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 31 |
0386947 |
IGNITION SWITCH |
| 33 |
0172164 |
CHART & CIGARETTE LIGHTER ASSEMBLY |
| 34 |
0172455 |
LEAD ASSEMBLY |
| 35 |
0172437 |
INSTRUMENT LIGHT SWITCH |
| 36 |
0122360 |
FUSE COVER, Front |
| 40 |
0172440 |
LEAD ASSEMBLY, Fuse to ammeter |
| 41 |
0122311 |
INLAY, Oil pressure |
| 42 |
0172438 |
LIGHT SOCKET, Oil pressure |
| 44 |
0316337 |
PLUG |
| 45 |
0122312 |
APPLIQUE, Ing |
| 46 |
0122336 |
APPLIQUE, OMC |
| 47 |
0172442 |
LEAD ASSEMBLY, Ignition |
| 49 |
0172439 |
LEAD ASSEMBLY, Switch to fuse |
| 50 |
0172441 |
LEAD ASSEMBLY, Ignition |

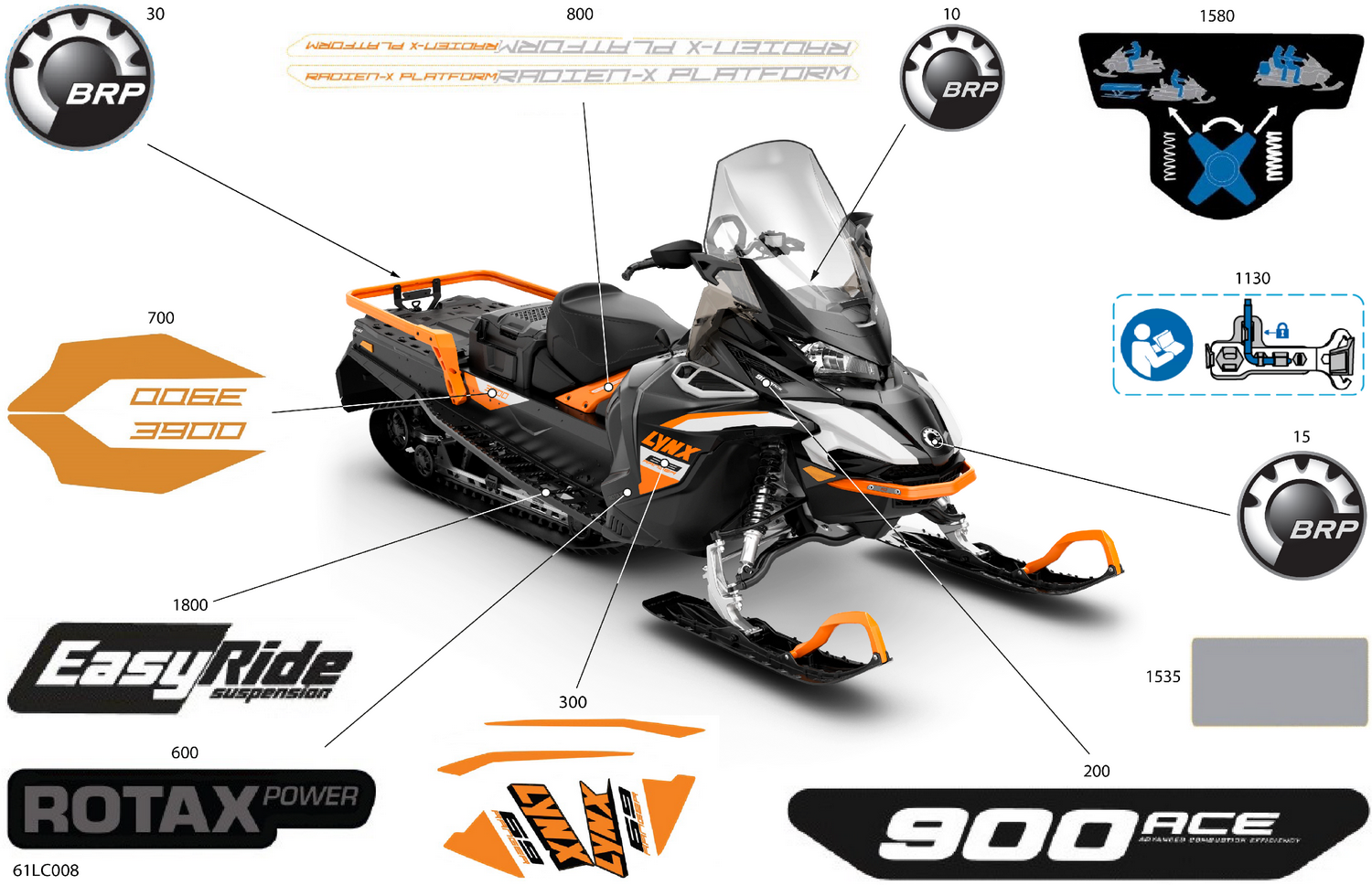

| 200 |
516009428 |
LH/RH Upper Side Panel Decal "900 ACE" |
| 300 |
516010401 |
LH/RH Sidepanel Decal "Lynx 69 Ranger" |
| 600 |
516008760 |
Decal "Rotax Power" |
| 700 |
516010422 |
LH/RH Frame Decal "3900" |
| 800 |
516010411 |
LH/RH Rear Member Decal |
| 1130 |
516011629 |
Tool Instruction Label |
| 1535 |
516009954 |
Protective Decal |
| 1580 |
516009928 |
Suspension Adjustment Decal |
