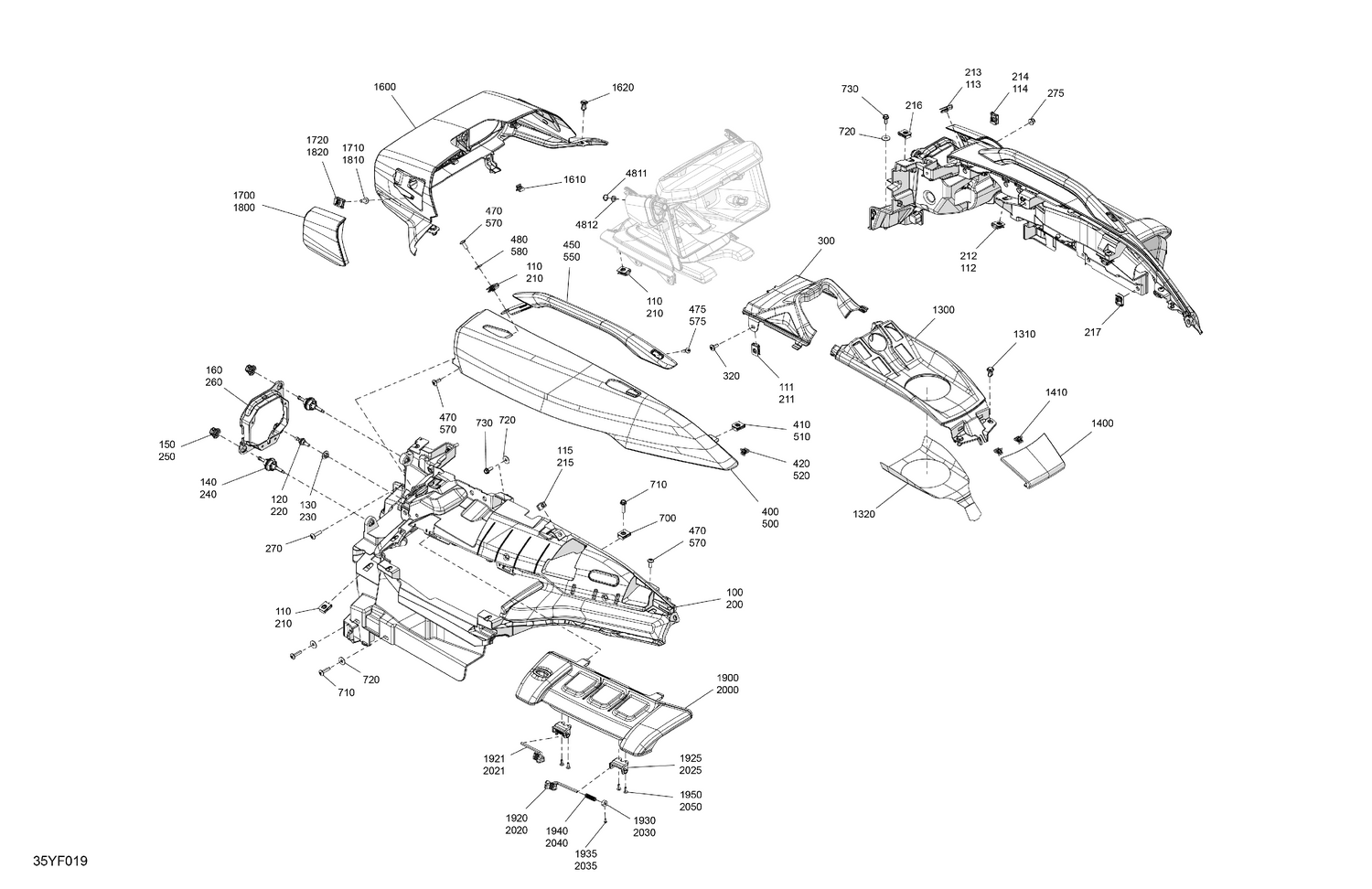

07- Body - Console
Parts (79)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708401082 | LH Molded Console Support |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 111 | 250100208 | Panel Nut M6 X 1.0 |
| 112 | 250100208 | Panel Nut M6 X 1.0 |
| 113 | 250100208 | Panel Nut M6 X 1.0 |
| 114 | 250100208 | Panel Nut M6 X 1.0 |
| 115 | 250100209 | Spring Nut U M5 X 0.8 |
| 120 | 705018616 | Ball Stud |
| 130 | 705014119 | Large Shoulder Nut M6 |
| 140 | 708400954 | Adjuster |
| 150 | 708400955 | Retaining Ring |
| 160 | 705017773 | LH Ext Light Support |
| 200 | 708401083 | RH Molded Console Support |
| 210 | 250100208 | Panel Nut M6 X 1.0 |
| 211 | 250100208 | Panel Nut M6 X 1.0 |
| 212 | 250100208 | Panel Nut M6 X 1.0 |
| 213 | 250100208 | Panel Nut M6 X 1.0 |
| 214 | 250100208 | Panel Nut M6 X 1.0 |
| 215 | 250100209 | Spring Nut U M5 X 0.8 |
| 216 | 250100208 | Panel Nut M6 X 1.0 |
| 217 | 250100208 | Panel Nut M6 X 1.0 |
| 220 | 705018616 | Ball Stud |
| 230 | 705014119 | Large Shoulder Nut M6 |
| 240 | 708400954 | Adjuster |
| 250 | 708400955 | Retaining Ring |
| 260 | 705017774 | RH Ext Light Support |
| 270 | 250000758 | Torx Screw M6 X 25 |
| 275 | 233261494 | Hex. Flange Elastic Nut M6 |
| 300 | 708400610 | Front Upper Fairing |
| 320 | 250000717 | Torx Head Screw M6 X 16 |
| 400 | 708400879 | Loft Green, LH Console Fairing |
| 410 | 250100208 | Panel Nut M6 X 1.0 |
| 420 | 517302785 | Edge Clip |
| 450 | 708400616 | LH Cross Member |
| 470 | 250000717 | Torx Head Screw M6 X 16 |
| 475 | 250000762 | Torx Screw M5 X 25 |
| 480 | 250200164 | Flat washer M6 |
| 500 | 708400880 | Loft Green, RH Console Fairing |
| 510 | 250100208 | Panel Nut M6 X 1.0 |
| 520 | 517302785 | Edge Clip |
| 550 | 708400617 | RH Cross Member |
| 570 | 250000717 | Torx Head Screw M6 X 16 |
| 575 | 250000762 | Torx Screw M5 X 25 |
| 580 | 250200164 | Flat washer M6 |
| 700 | 250100208 | Panel Nut M6 X 1.0 |
| 710 | 250000807 | Torx Truss Screw M6 X 25 |
| 720 | 250200164 | Flat washer M6 |
| 730 | 210261650 | Hex. Flange Screw M6 X 16 |
| 1300 | 708400615 | Central Fairing |
| 1310 | 293150230 | Tuflok Plastic Rivet |
| 1320 | 708401037 | Sheet |
| 1400 | 705017371 | Rear Console Fairing |
| 1410 | 517302785 | Edge Clip |
| 1600 | 708400614 | Front Fairing |
| 1610 | 517302785 | Edge Clip |
| 1620 | 293150230 | Tuflok Plastic Rivet |
| 1700 | 708400621 | LH Front Headlight Trim |
| 1710 | 250000717 | Torx Head Screw M6 X 16 |
| 1720 | 250100208 | Panel Nut M6 X 1.0 |
| 1800 | 708400622 | RH Front Headlight Trim |
| 1810 | 250000717 | Torx Head Screw M6 X 16 |
| 1820 | 250100208 | Panel Nut M6 X 1.0 |
| 1900 | 708400619 | LH Access Cover |
| 1920 | 708400861 | Lid Latch |
| 1921 | 708400920 | Sec Lid Latch |
| 1925 | 708400862 | Latch Base |
| 1930 | 708401093 | Retaining Ring |
| 1935 | 250001404 | Button Head Torx Screw M3 X 8 |
| 1940 | 708400930 | Compression Spring |
| 1950 | 250001131 | Torx Truss PT K40 x 12 |
| 2000 | 708400620 | RH Acess Cover |
| 2020 | 708400861 | Lid Latch |
| 2021 | 708400920 | Sec Lid Latch |
| 2025 | 708400862 | Latch Base |
| 2030 | 708401093 | Retaining Ring |
| 2035 | 250001404 | Button Head Torx Screw M3 X 8 |
| 2040 | 708400930 | Compression Spring |
| 2050 | 250001131 | Torx Truss PT K40 x 12 |
| 4811 | 293300315 | O-Ring Seal |
