| Ref | Part Number | Description |
|---|
| 1 |
0390423 |

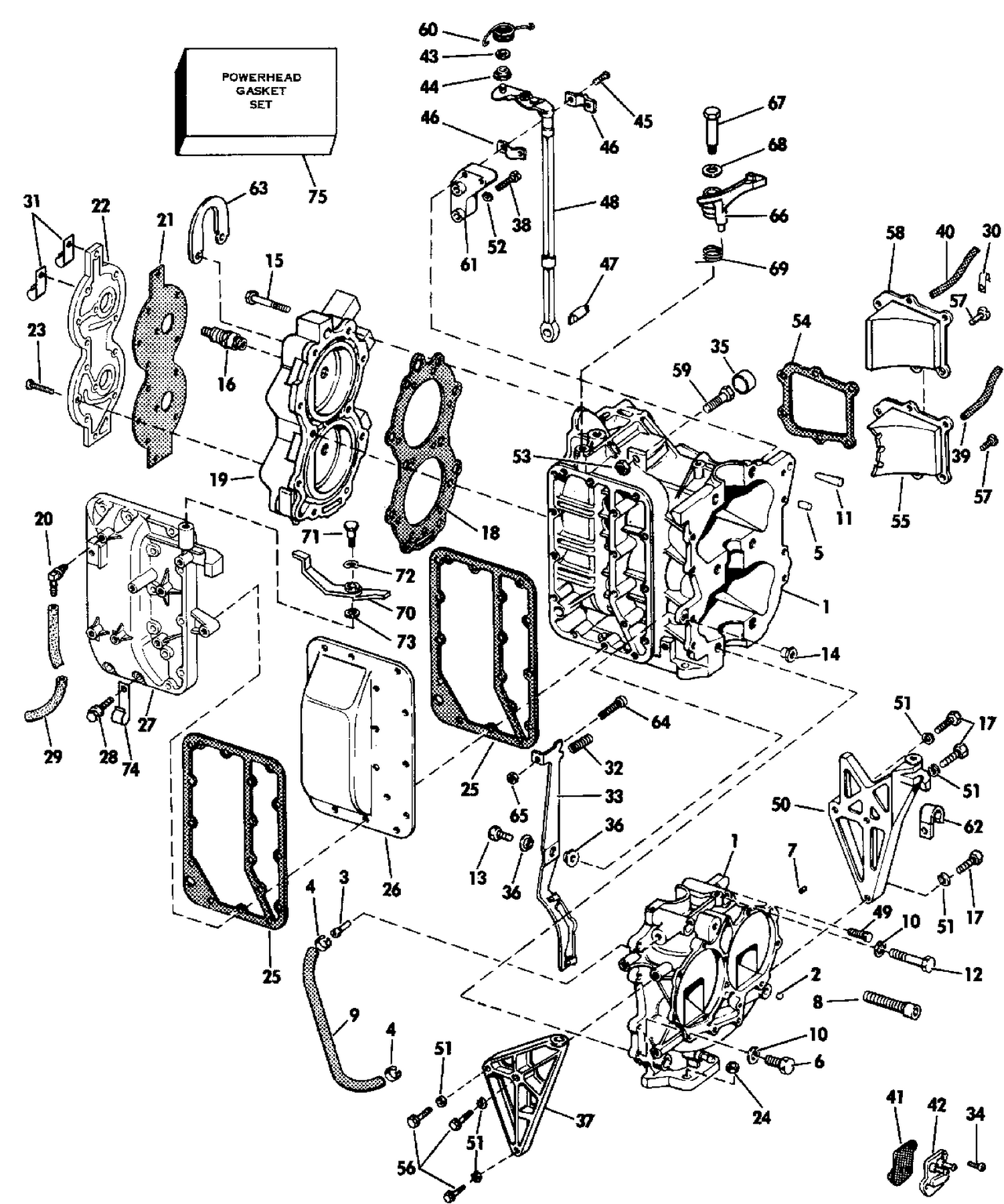

CYLINDER & C'CASE ASSY. |
| 2 |
0300788 |
PLUG EXPANSION |
| 4 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 7 |
0307587 |
PLUG, Crankcase |
| 8 |
0302579 |
SCREW, Allen |
| 9 |
HOSE, |
Oil return 12" |
| 12 |
0301431 |
SCREW |
| 13 |
0306409 |
VIS, collecteur vers carter-moteur |
| 14 |
0321528 |
NUT, Shifter lock |
| 15 |
0305027 |
SCREW |
| 16 |
0389471 |
SPARK PLUG, Champion L78 |
| 16 |
0390659 |
SPARK PLUG, Champion QL-78V |
| 17 |
0307471 |
SCREW |
| 18 |
0307069 |
GASKET, Cylinder head |
| 19 |
0318961 |
CYLINDER HEAD |
| 21 |
0318962 |
GASKET, Cover |
| 22 |
0323005 |
COVER, Cylinder head |
| 23 |
0300646 |
VIS, ancrage |
| 24 |
0319884 |
NUT |
| 25 |
0304762 |
GAKSET, Exhaust cover |
| 26 |
0304761 |
COVER, Exhaust, inner |
| 27 |
0328911 |
EXHAUST COVER, Outer |
| 28 |
0306418 |
VIS, ancrage |
| 29 |
0328387 |
HOSE, Overboard indicator This part replaces 0322999. |
| 30 |
0511514 |
CLAMP, Cable This part replaces 0317883. |
| 31 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 32 |
0318462 |
SPRING, Shifter lock |
| 33 |
0385825 |
SHIFTER LOCK |
| 34 |
0307466 |
SCRES, Bowl to body |
| 35 |
0314416 |
BUMBER, Advance screw |
| 36 |
0325542 |
BUSHING |
| 37 |
0305078 |
BRACKET, Starboard |
| 38 |
0309905 |
SCEW,Cylinder head |
| 39 |
HOSE, |
Cover lower, 9" |
| 40 |
HOSE, |
Cover upper, 10-1/2" |
| 41 |
0317254 |
GASKET, C'case to hsg |
| 42 |
0385109 |
HSG. NIPPLE & VALVE ASSY |
| 43 |
0305831 |
SHIM |
| 44 |
0307841 |
BUSHING, Control lever |
| 45 |
0302948 |
SCREW |
| 46 |
0305609 |
BEARING CLAMP |
| 47 |
0329197 |
PIN, Control lever |
| 48 |
0386492 |
CONTORL LEVER |
| 49 |
0300646 |
VIS, ancrage |
| 50 |
0305077 |
BRACKET, Port |
| 52 |
0302376 |
LOCKWASHER |
| 54 |
0304784 |
GASKET, By-oass cover |
| 55 |
0386364 |
BY-PASS COVER LOWER |
| 56 |
0308077 |
SCREW |
| 57 |
0300646 |
VIS, ancrage |
| 58 |
0385107 |
BY-PASS COVER UPPER |
| 59 |
0319354 |
SCREW, Armature plate stop |
| 60 |
0319795 |
SPRING, Control lever |
| 61 |
0304941 |
BRACKET |
| 62 |
0310441 |
CLAMP, CPS lead |
| 63 |
0312050 |
BRACKET, Lift |
| 64 |
0318491 |
SCREW, Adj shifter lock |
| 66 |
0317657 |
LCOKOUT LEVER |
| 67 |
0321995 |
SHOULDER SCREW |
| 68 |
0317655 |
WASHER |
| 69 |
0322122 |
RETURN SPRING, Lever |
| 70 |
0317971 |
LOCKOUT LEVER, Exh. cover |
| 71 |
0322781 |
SCREW, Lockout lever boss |
| 74 |
0310503 |
CLAMP |
