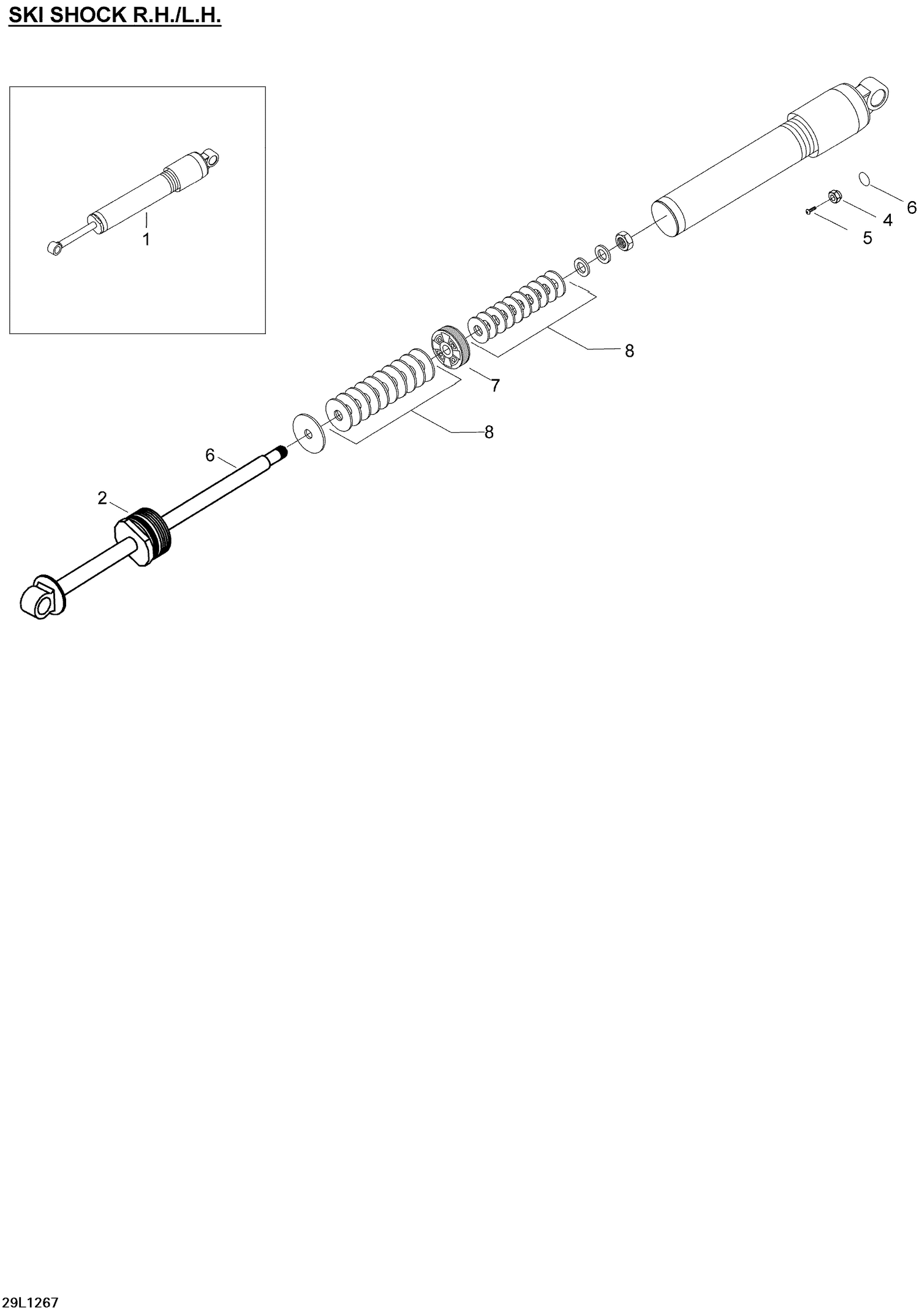

| Ref | Part Number | Description |
|---|
| 1 |
505073157 |
Front Shock (LH) |
| 1 |
505073158 |
Front Shock (RH) |
| 2 |
Not |
Available As Spare Part - Seal carrier ass'y |
| 3 |
Not |
Available As Spare Part - Rod assy |
| 4 |
505070398 |
Air Valve |
| 5 |
505070399 |
Screw |
| 6 |
505070400 |
O-Ring |
| 7 |
NOT |
IN USE Piston 36mm., 0 X 0,3 Slits NOT IN USE |
| 7 |
Not |
Available As Spare Part - Piston 40mm. |
| 8 |
230029 |
Shim 40/46 mm. 20 X 0,114 |
| 8 |
230030 |
Shim 40/46 mm. 20 X 0,152 |
| 8 |
230031 |
Shim 40/46 mm. 20 X 0,203 |
| 8 |
230032 |
Shim 40/46 mm. 20 X 0,254 |
| 8 |
230033 |
Shim 40/46 mm. 34 X 0,114 |
| 8 |
230034 |
Shim 40/46 mm. 34 X 0,152 |
| 8 |
230035 |
Shim 40/46 mm. 34 X 0,203 |
| 8 |
230036 |
Shim 40/46 mm. 34 X 0,254 |
| 8 |
230037 |
Shim 40/46 mm. 36 X 0,114 |
| 8 |
230040 |
Shim 40/46 mm. 38 X 0,152 |
| 8 |
230041 |
Shim 40/46 mm. 38 X 0,203 |
| 8 |
230042 |
Shim 40/46 mm. 38 X 0,254 |
| 8 |
230082 |
Shim 40/46 mm. 32 X 0,114 |
| 8 |
503189015 |
Shim 40/46 mm. 22 X 0,305 |
| 8 |
503189016 |
Shim 40/46 mm. 24 X 0,114 |
| 8 |
503189017 |
Shim 40/46 mm. 24 X 0,152 |
| 8 |
503189018 |
Shim 40/46 mm. 24 X 0,203 |
| 8 |
503189020 |
Shim 40/46 mm. 24 X 0,305 |
| 8 |
503189021 |
Shim 40/46 mm. 26 X 0,114 |
| 8 |
503189023 |
Shim 40/46 mm. 26 X 0,203 |
| 8 |
503189027 |
Shim 40/46 mm. 28 X 0,152 |
| 8 |
503189030 |
Shim 40/46 mm. 28 X 0,305 |
| 8 |
503189033 |
Shim 40/46 mm. 30 X 0,203 |
| 8 |
503189036 |
Shim 40/46 mm. 36 X 0,152 |
| 8 |
503189038 |
Shim 40/46 mm. 36 X 0,254 |
| 8 |
503189039 |
Shim 40/46 mm. 40 X 0,152 |
| 8 |
619300022 |
Shim 40/46 mm. 32 X 0,305 |
| 8 |
619300056 |
Shim 40/46 mm. 30 X 0,305 |
| 8 |
619300059 |
Shim 40/46 mm. 32 X 0,254 |
| 8 |
619300060 |
Shim 40/46 mm. 17 X 0,114 |
| 8 |
619300067 |
Shim 40/46 mm. 18 X 0,152 |
| 8 |
619300068 |
Shim 40/46 mm. 18 X 0,114 |
| 8 |
619300069 |
Shim 40/46 mm. 17 X 0,203 |
| 8 |
619300070 |
Shim 40/46 mm. 34 X 0,305 |
| 8 |
619300095 |
Shim 40/46 mm. 24 X 0,254 |
| 8 |
619300097 |
Shim 40/46 mm. 20 X 0,305 |
| 8 |
619300098 |
Shim 40/46 mm. 22 X 0,203 |
| 8 |
619300099 |
Shim 40/46 mm. 26 X 0,254 |
| 8 |
619300100 |
Shim 40/46 mm. 26 X 0,305 |
| 8 |
619300101 |
Shim 40/46 mm. 28 X 0,114 |
| 8 |
619300102 |
Shim 40/46 mm. 28 X 0,203 |
| 8 |
619300103 |
Shim 40/46 mm. 28 X 0,254 |
| 8 |
619300104 |
Shim 40/46 mm. 30 X 0,152 |
| 8 |
619300105 |
Shim 40/46 mm. 36 X 0,305 |
| 8 |
619300106 |
Shim 40/46 mm. 38 X 0,305 |
| 8 |
619300112 |
Shim 40/46 mm. 40 X 0,203 |
| 8 |
619300113 |
Shim 40/46 mm. 30 X 0,254 |
| 8 |
619300133 |
Shim 40/46 mm. 22 X 0,114 |
| 8 |
619300134 |
Shim 40/46 mm. 22 X 0,254 |
| 8 |
619300135 |
Shim 40/46 mm. 30 X 0,114 |
| 8 |
619300136 |
Shim 40/46 mm. 40 X 0,254 |
| 8 |
619300137 |
Shim 40/46 mm. 32 X 0,152 |
| 8 |
619300138 |
Shim 40/46 mm. 32 X 0,203 |
| 8 |
619300140 |
Shim 40/46 mm. 22 X 0,152 |
| 8 |
619300141 |
Shim 40/46 mm. 26 X 0,152 |
| 8 |
619300142 |
Shim 40/46 mm. 36 X 0,203 |
| 8 |
Not |
Available As Spare Part - Shim 40/46 mm. 17 X 0,152 |
