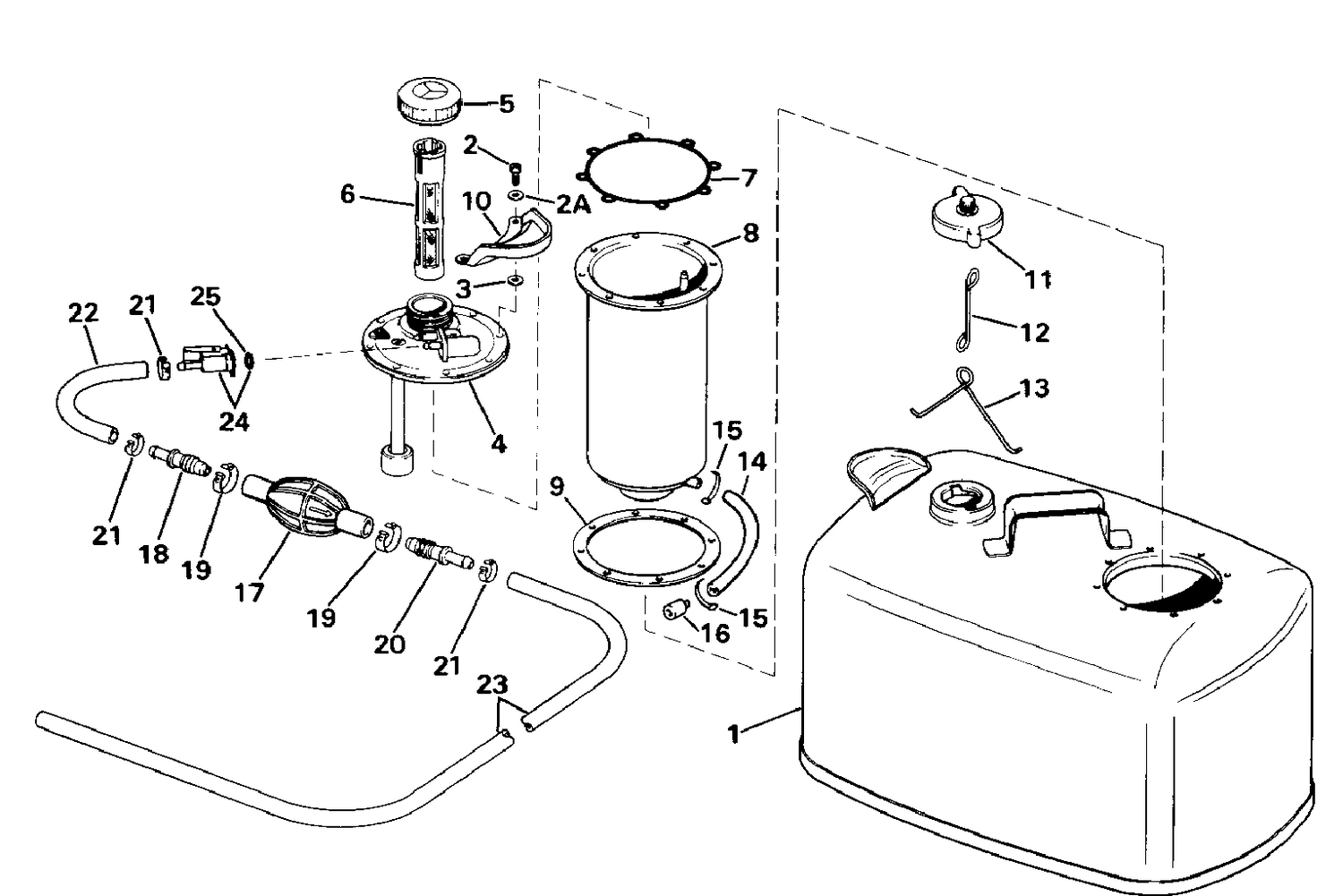

| Ref | Part Number | Description |
|---|
| 1 |
0174370 |
FUEL TANK ASSY. |
| 1 |
0174450 |
FUEL TANK ASSY. |
| 2 |
0174481 |
SCREW & SEAL ASSY. |
| 2A |
0125004 |
SEAL |
| 3 |
0124005 |
WASHER |
| 4 |
0174620 |
COVER ASSY. This part replaces 0174442. |
| 7 |
0124764 |
SEAL |
| 8 |
0174783 |
TANK, PUMP & FILTER ASSY. This part replaces 0174441. |
| 9 |
0124955 |
GASKET |
| 10 |
0124798 |
BRACKET |
| 11 |
0388933 |
CAP ASSY., Fuel |
| 14 |
HOSE, |
Fuel pickup 292mm (11-1/2") |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0173637 |
FUEL PICKUP |
| 0393535 |
5008609 |
FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0393535. |
