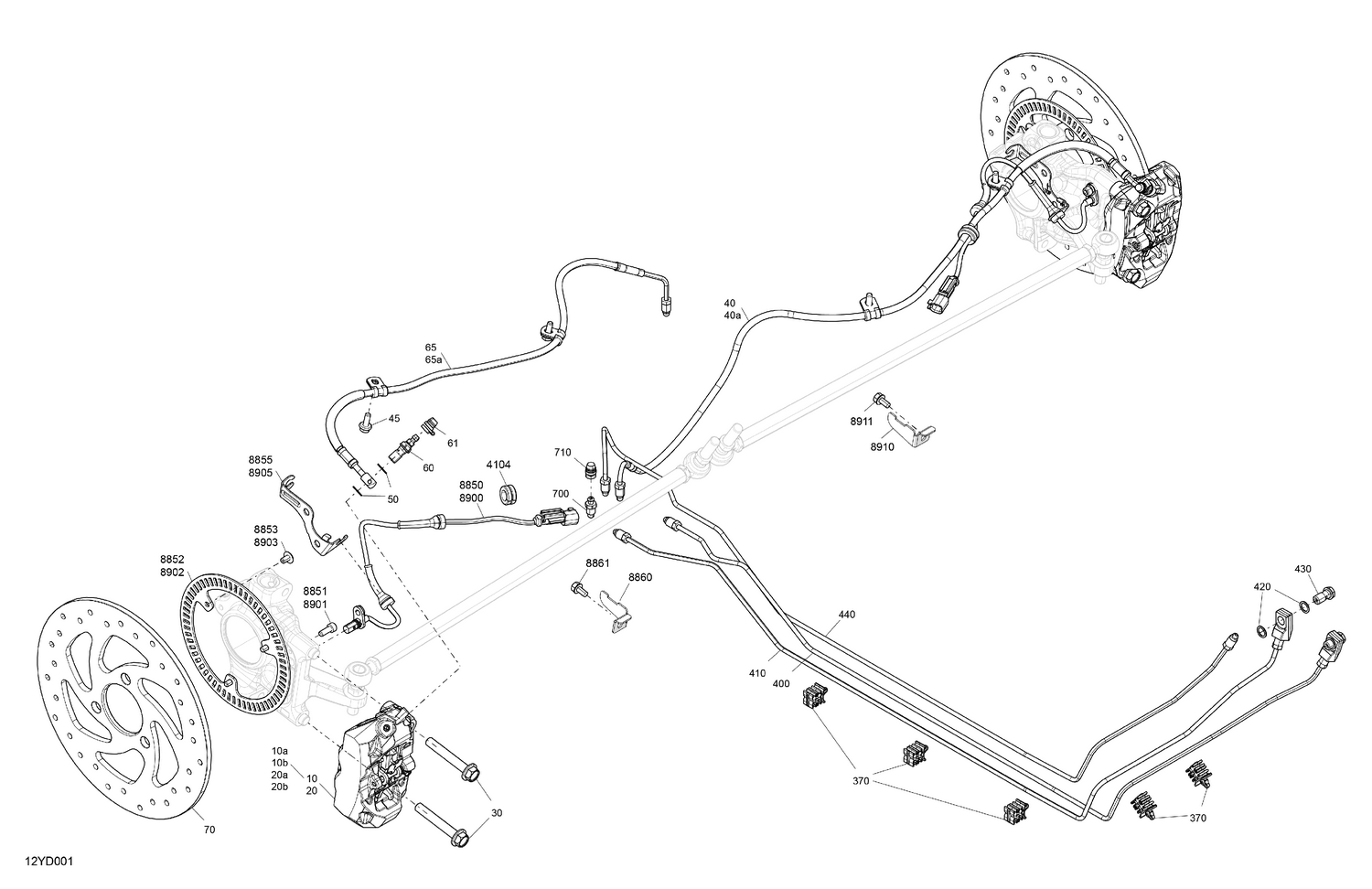

03- Mechanic - Front Brakes
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 219800237 | Brake Pad Kit |
| 10b | 219800238 | Spring/Pin/Clip Kit |
| 20a | 219800237 | Brake Pad Kit |
| 20b | 219800238 | Spring/Pin/Clip Kit |
| 30 | 207506556 | Hex Flange Screw M10 X 65 |
| 40a | 293650256 | Clamp |
| 45 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 50 | 414920600 | Washer |
| 60 | 705601201 | Banjo Bolt/ Bleeder |
| 61 | 705601190 | Bleeder Bolt Cap |
| 65a | 293650256 | Clamp |
| 70 | 705601631 | Front Brake Disk |
| 370 | 705601987 | Anchorage Tube |
| 400 | 705601157 | Tandem Rigid Tube |
| 410 | 705601158 | Tandem Rigid Tube |
| 420 | 414920600 | Washer |
| 430 | 507032551 | Banjo Bolt |
| 440 | 705601159 | Rear Brake Rigid Tube |
| 700 | 705600502 | Bleeder Screw |
| 710 | 705601190 | Bleeder Bolt Cap |
| 4104 | 293720095 | Grommet |
| 8850 | 710006981 | Speed Sensor |
| 8851 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 8852 | 705601512 | Front Sensor Wheel |
| 8853 | 250000995 | Torx-truss M/s M6 X 10 |
| 8855 | 710004860 | LH Support Wire |
| 8860 | 710009856 | Sensor Support |
| 8861 | 210261250 | Hex. Flange Screw M6 X 12 |
| 8900 | 710006981 | Speed Sensor |
| 8901 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 8902 | 705601512 | Front Sensor Wheel |
| 8903 | 250000995 | Torx-truss M/s M6 X 10 |
| 8905 | 710004861 | RH Support Wire |
| 8910 | 710009857 | Sensor Support |
