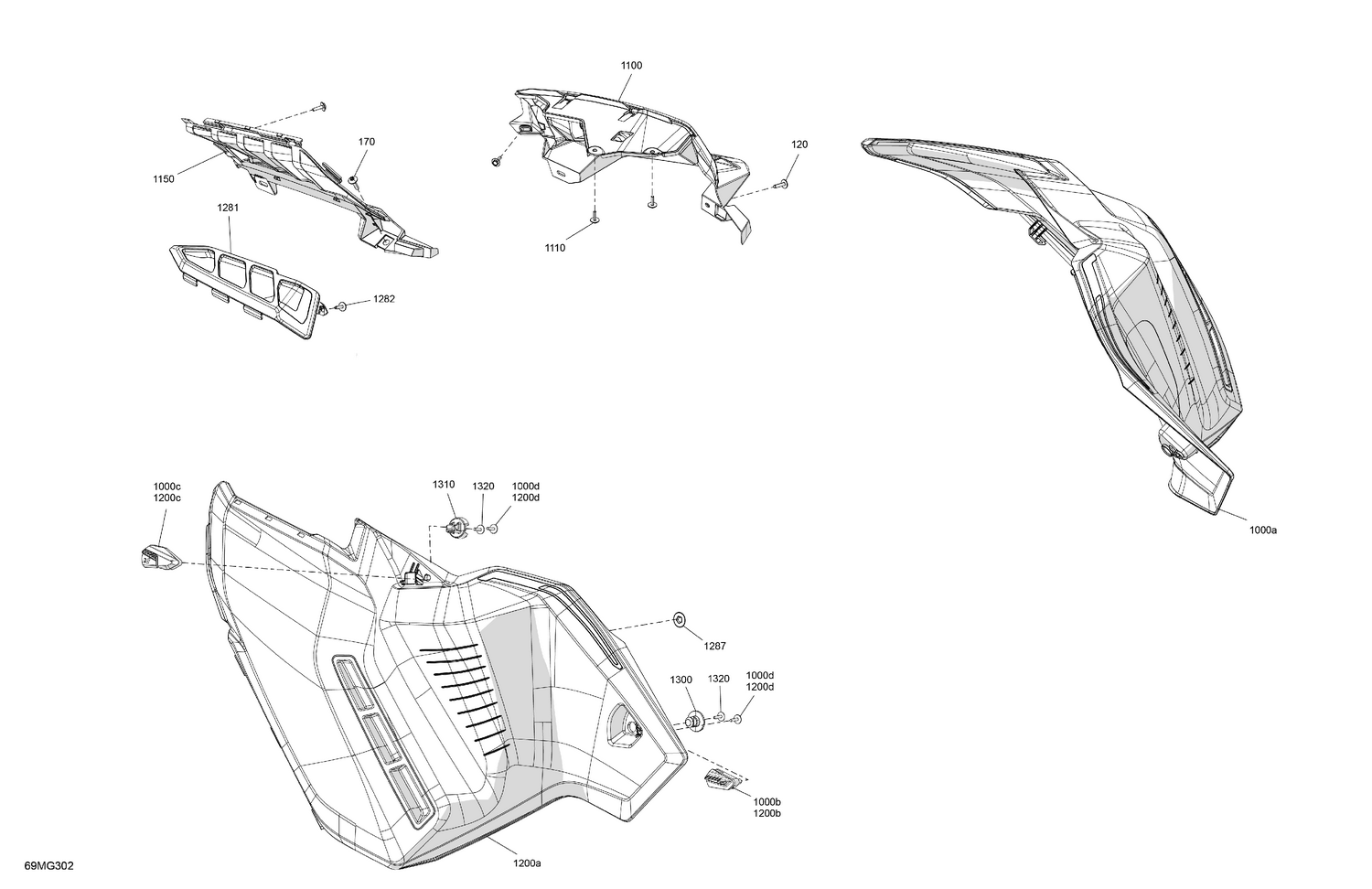

07- Body - Side Panels
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 1000a | 517307100 | Deep Black, RH Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 517305979 | RH Front Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1100 | 517308651 | RH Hood Grille |
| 1110 | 250000725 | Screw M4 X 16 |
| 1150 | 517308650 | LH Hood Trim |
| 1200a | 861805591 | Deep Black, LH Panel |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200d | 250000725 | Screw M4 X 16 |
| 1281 | 517309770 | LH Panel Grille |
| 1282 | 250000725 | Screw M4 X 16 |
| 1287 | 508000853 | Push Nut |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
