Parts Catalog

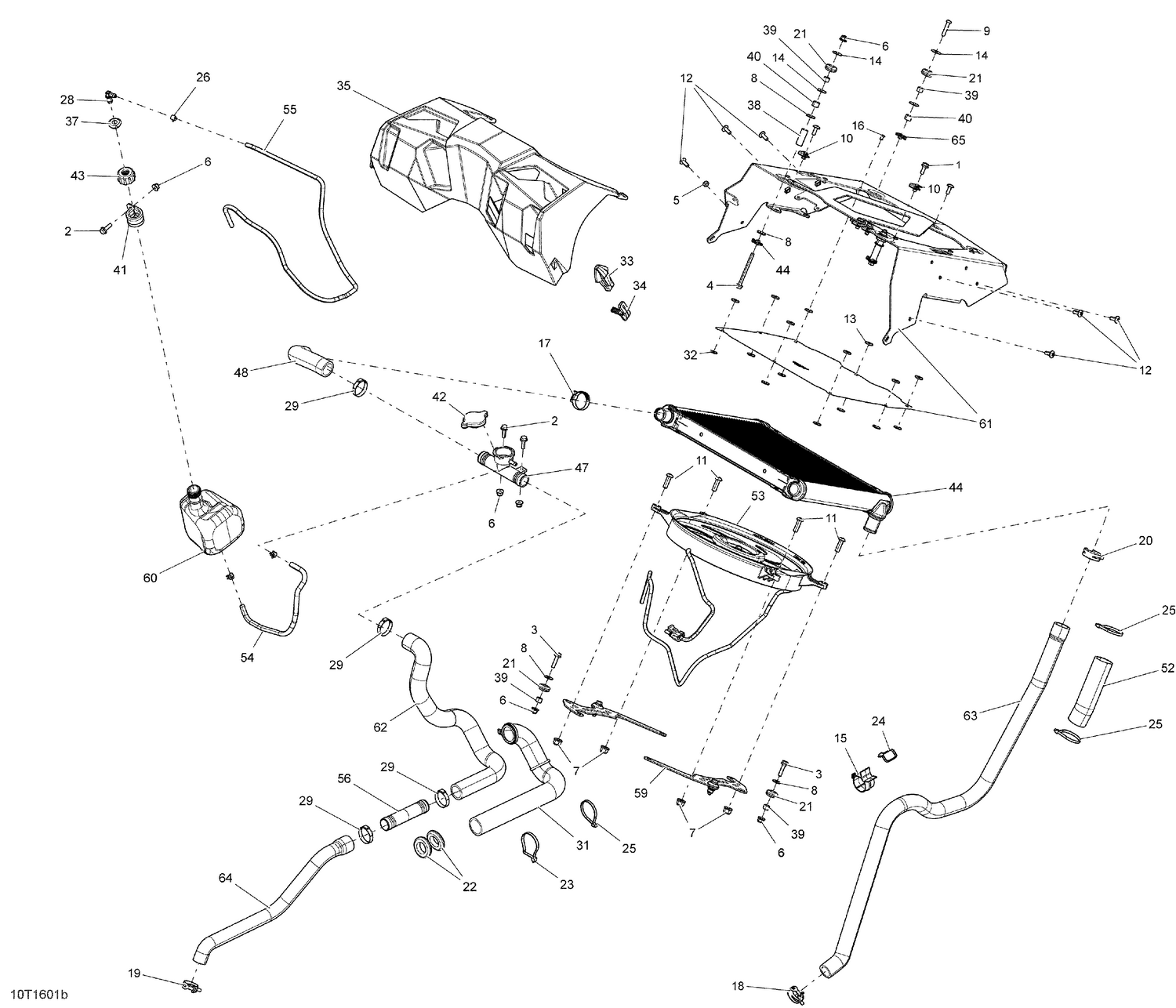

01- Cooling System - XMR

Parts (48)

Ref	Part Number	Description
1	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
2	207662034	Hex. Flange Screw M6 X 20
3	207662544	Hex. Flange Screw M6 X 25
4	207667044	Hex. Flange Screw M6 X 70
5	232561434	Elastic Stop Nut M6
6	233261434	Flange Elastic Nut M6
7	233281414	Hex. Flange Elastic Nut M8
8	234062600	Flat Washer M6, Stainless
9	235563054	Torx Screw M6 X 30
10	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
11	250000283	Torx Screw M8 X 25, Scotch Grip
12	250000717	Torx Head Screw M6 X 16
13	250200024	Rubber Washer 5 mm
14	250200040	Flat Washer
15	275500590	Retainer
16	293150102	Rivet 3/16"
17	293650098	Norma Gear Clamp
18	293650108	Norma Spring Clamp
19	293650109	Norma Spring Clamp
20	293650166	Norma Spring Clamp
21	293720062	Grommet
24	414115200	Tie-Rap 180 mm
26	414554800	Spring Clamp
28	414580700	Male Connector
29	509000162	Gear Clamp
31	219704428	Tubing 35 MM 1000MM Long
32	517124300	Washer
33	860200239	Black Latch Kit
34	517303981	Panel Latch
35	703100399	Protection Cover Kit
37	705003264	Grommet
38	705202499	Bushing
39	707000058	Spacer
40	708001129	Bushing
41	709200036	Hose Anchor
42	709200207	Radiator Pressure Cap
43	709200586	Cap This part replaces 548872589.
44	709200286	Radiator
47	709200422	Filler Neck
48	709200891	Hose This part replaces 709200426.
52	219704428	Tubing 35 MM 1000MM Long
53	709200567	Fan Ass'y
54	219704414	Was 415110000 Polyurethane Hose 5.2 mm
55	219704410	Polyurethane Hose 10000Mm Long
56	709200448	Nipple Tube 1"
59	709201349	Aupport_Fan Ecoat This part replaces 709200495.
60	709200624	Coolant Tank Ass'y This part replaces 709200504.
61	709201336	Deep Black, Radiator Support Kit This part replaces 709200556.
