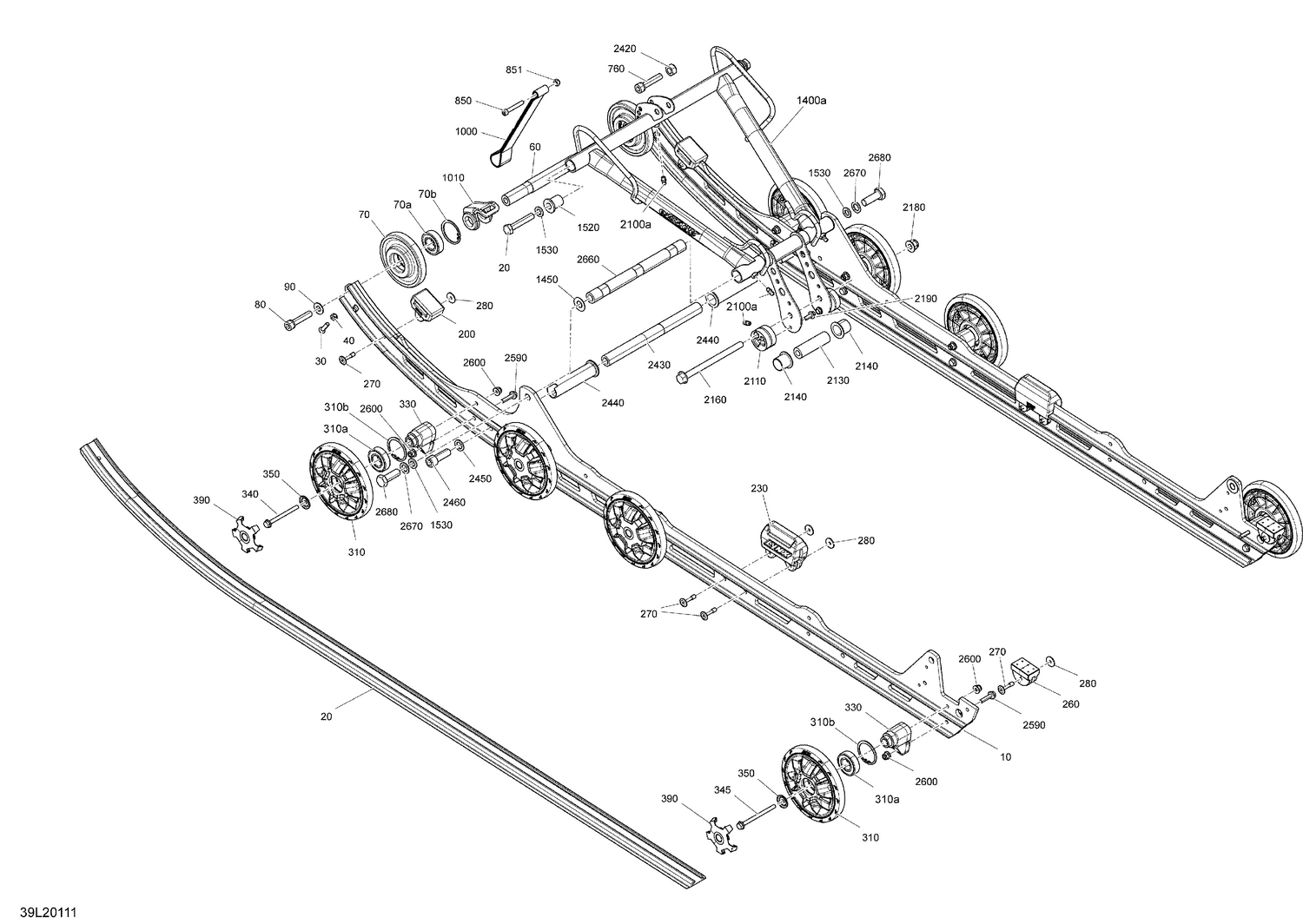

08- Suspension, Rear - System - ST
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503195749 | Runner |
| 20 | 503195731 | Slider Shoe |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 60 | 503195286 | Front Wheel Shaft |
| 70a | 503190396 | Ball Bearing |
| 70b | 415129371 | Retaining Ring |
| 80 | 205504544 | Socket Screw |
| 90 | 234001410 | Flat Washer 10 mm |
| 200 | 503193504 | Rubber Stopper |
| 230 | 503195028 | Rubber Stopper |
| 260 | 503191291 | Rubber Stopper |
| 270 | 293150224 | Rivet Pop 3/16 |
| 280 | 503191273 | Washer |
| 310a | 503190396 | Ball Bearing |
| 310b | 415129371 | Retaining Ring |
| 330 | 503193894 | Casted Support |
| 340 | 207667056 | Hex. Flange Screw M6 x 70 |
| 345 | 207068044 | Screw Hex. M6 X 80 |
| 350 | 503191820 | Wheel Cup M6 |
| 390 | 503195345 | Black, Wheel Cap |
| 760 | 40134 | Screw Socket HD.DIN 912 This part replaces 205004544. |
| 850 | 205064044 | Socket head screw M6 x 40 |
| 851 | 232561414 | Elastic Stop Nut M6 |
| 1000 | 503195777 | Strap Stopper |
| 1010 | 503194867 | Holder, Limiter Strap |
| 1450 | 706200281 | Hardened Washer This part replaces 250200086. |
| 1520 | 503189324 | Bushing |
| 1530 | 503189564 | Washer |
| 2100a | 408200700 | Grease Fitting |
| 2110 | 503195337 | Rod Shaft |
| 2130 | 503195030 | Front Swing Shaft |
| 2140 | 503195184 | Bushing |
| 2160 | 230604044 | Hex. Flanged Screw M10 X 140 |
| 2180 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 2190 | 250000936 | Hex. Flanged Screw M6 X 16 |
| 2420 | 232500416 | Elastic Stop Nut M10 |
| 2430 | 503195233 | Center Shock Shaft |
| 2440 | 503195044 | Spacer |
| 2450 | 503189276 | Washer |
| 2460 | 205523554 | Socket Head Screw M12 X 35 |
| 2590 | 207662556 | Hex. Flange Screw M6 X 25 |
| 2600 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 2660 | 503194912 | Lower Shaft |
| 2670 | 503192491 | Washer |
