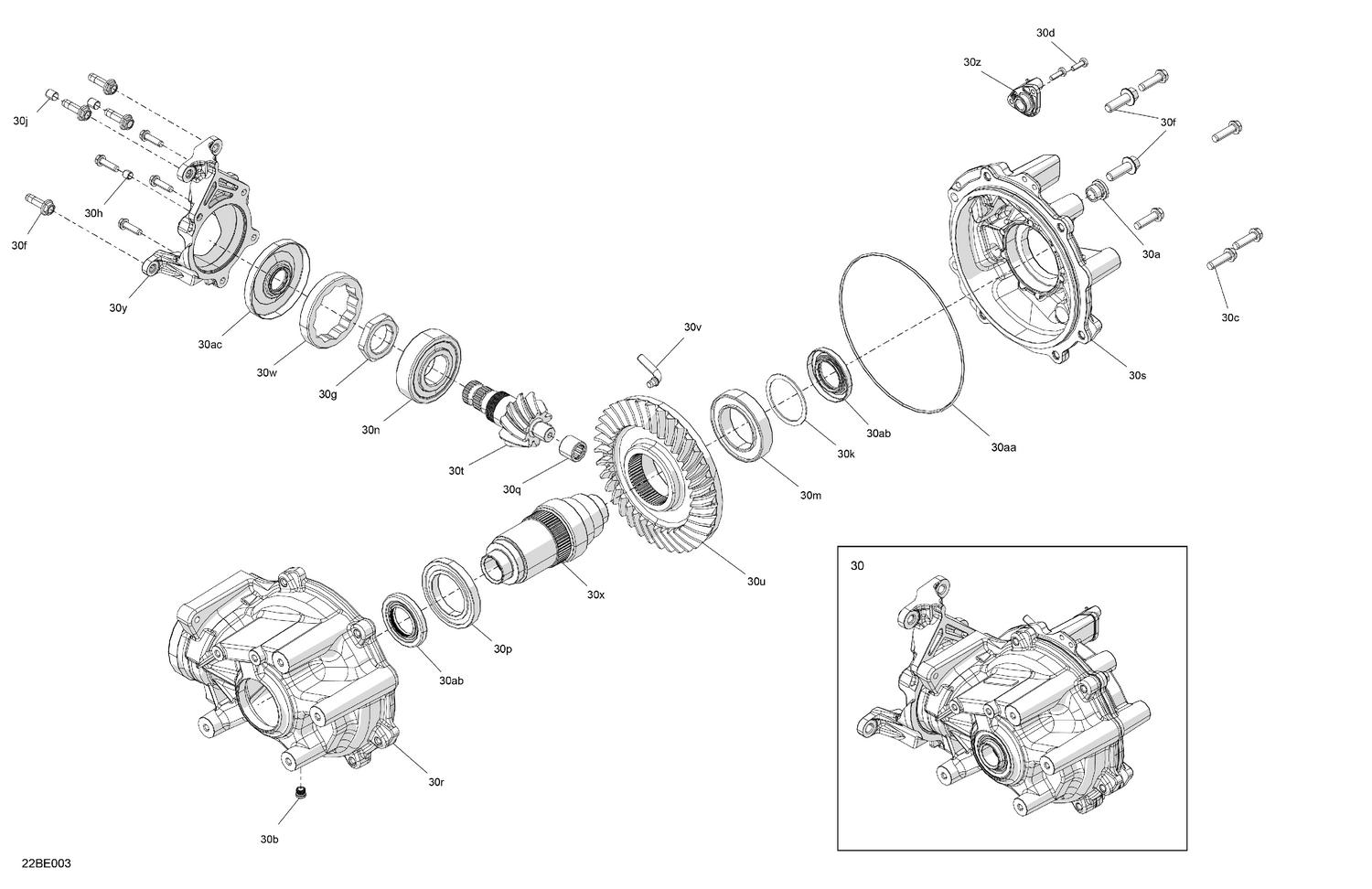

04- Drive - Final Drive Unit
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705501889 | Fill Level Plug |
| 30aa | 715900749 | O-Ring |
| 30ab | 715900531 | Oil Seal |
| 30b | 715900563 | Fill Level Plug M10 |
| 30c | 705501886 | Bolt |
| 30d | 715900736 | Screw |
| 30f | 715900799 | Custom Hex Screw Flange Head M10 x 30 |
| 30g | 715900737 | Nut |
| 30h | 715900738 | Dowel Pin |
| 30j | 715900739 | Dowel Pin |
| 30k | 715900740 | Shim |
| 30m | 715900741 | Ball Bearing |
| 30n | 715900782 | Ball Bearing |
| 30p | 715900742 | Ball Bearing |
| 30q | 705501874 | Needle Bearing |
| 30r | 715900816 | Case |
| 30s | 715900841 | Cover |
| 30t | 715900746 | Pinion, 10T Spiral |
| 30u | 715900747 | Ring Gear 36T Spiral |
| 30v | 705401935 | Vent Valve |
| 30w | 705501882 | Nut |
| 30x | 715900748 | Hub |
| 30y | 705503213 | Differential Support |
| 30z | 420427563 | Cover |
