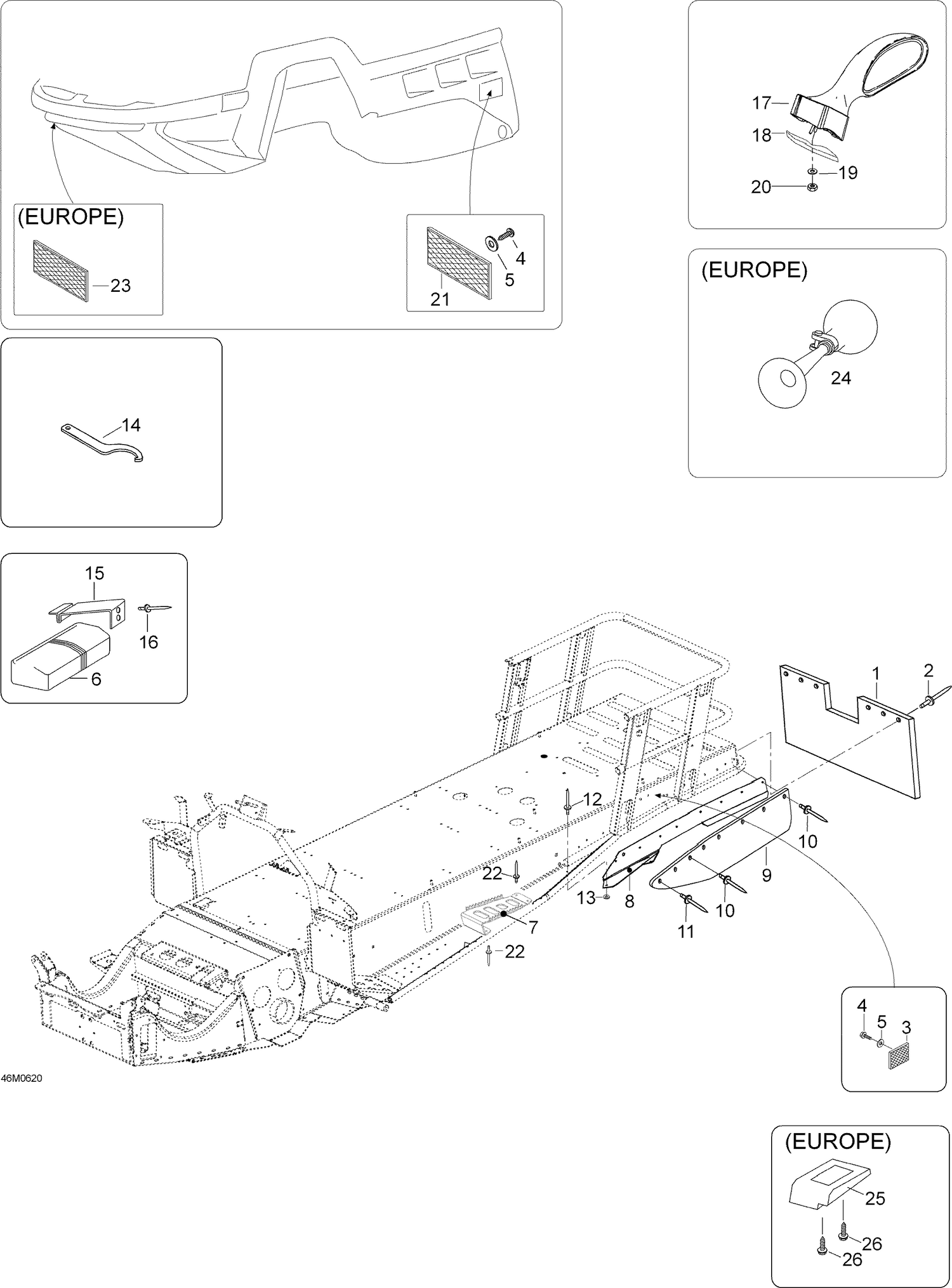

| Ref | Part Number | Description |
|---|
| 1 |
538629 |
Snow guard This part replaces M538629. |
| 2 |
M36036 |
Black, Rivet |
| 4 |
M40070 |
Screw |
| 5 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 6 |
605350525 |
TOOL KIT - Call your local BRP dealership This part replaces 605350523. |
| 8 |
605251248 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 8 |
605251249 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 9 |
5142828 |
Side Snowguard This part replaces M5142828. |
| 10 |
M36097 |
RIVET - Call your local BRP dealership |
| 11 |
M36891 |
Rivet *Rivet |
| 12 |
36005 |
Rivet This part replaces M36005. |
| 13 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 14 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 15 |
M5346728 |
SPRING PLATE - Call your local BRP dealership |
| 16 |
36108 |
Rivet This part replaces M36108. |
| 17 |
605250582 |
LH Mirror |
| 17 |
605250583 |
RH Mirror |
| 18 |
605350576 |
LH Adaptor |
| 18 |
605350577 |
RH ADAPTOR - Call your local BRP dealership |
| 19 |
20037 |
Washer This part replaces M20037. |
| 20 |
232541414 |
Elastic Stop Nut M4 |
| 21 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 22 |
M36489 |
Rivet |
