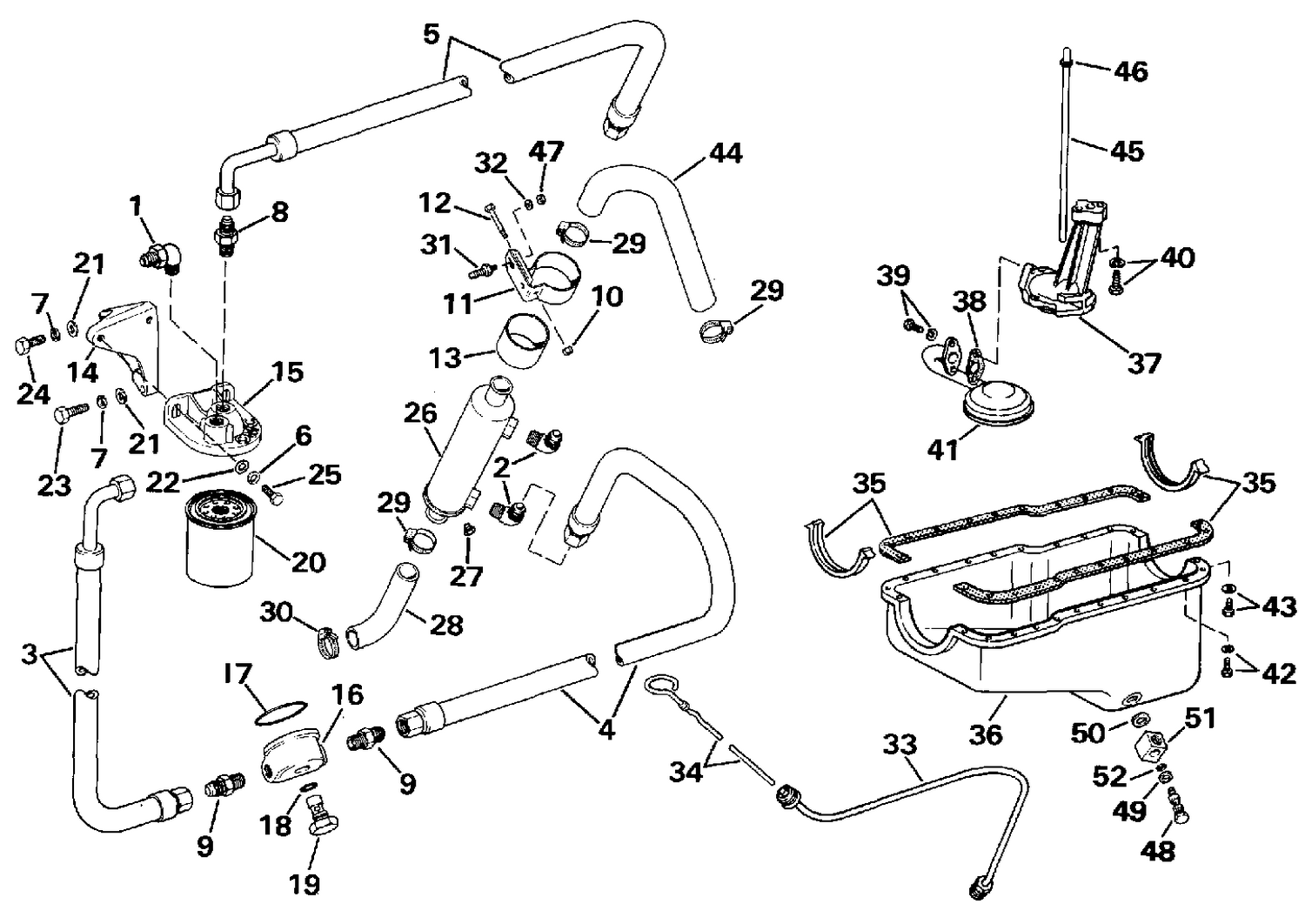

| Ref | Part Number | Description |
|---|
| 1 |
0912854 |
FITTING |
| 2 |
0912854 |
FITTING |
| 3 |
0984989 |
HOSE, Filter to adapter |
| 4 |
0984987 |
HOSE, Adapter to cooler |
| 5 |
0984988 |
HOSE, Filter to cooler |
| 6 |
0120177 |
L'WASHER, Alternator to brkt |
| 7 |
0303269 |
L'WASHER, Upper |
| 8 |
0912877 |
CONNECTOR, Adapter |
| 9 |
0912877 |
CONNECTOR, Adapter |
| 10 |
0308335 |
CLAMP, Coil |
| 11 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 13 |
3853236 |
SLEEVE, Ignition coil This part replaces 0308716. |
| 14 |
0912462 |
BRACKET, Oil filter |
| 15 |
0985089 |
BASE, Oil filter |
| 16 |
0912464 |
ADAPTER, Engine oil |
| 17 |
0912465 |
O-RING, Adapter |
| 19 |
3854415 |
RETAINER, Adapter This part replaces 0912547. |
| 20 |
0174796 |
OIL FILTER |
| 21 |
0304671 |
LOCKWASHER, Coupler to flywheel |
| 23 |
0311395 |
SCREW, Bracket to engine |
| 24 |
0308197 |
SCREW, Bracket to engine |
| 25 |
0306414 |
SCREW |
| 26 |
0984643 |
OIL COOLER |
| 27 |
0909251 |
PLUG, Cooler |
| 28 |
0911944 |
HOSE, Cooler to cooler |
| 28 |
0913153 |
HOSE, Engine oil cooler to thermostat hsg. |
| 29 |
0912627 |
CLAMP |
| 30 |
0979803 |
CLAMP |
| 31 |
3852599 |
STUD, Oil cooler to engine This part replaces 0912549. |
| 33 |
0985830 |
TUBE, Oil drain |
| 34 |
3850474 |
GAUGE, Oil level This part replaces 0984526. |
| 35 |
0984888 |
GASKET SET, Oil pan |
| 36 |
0984887 |
OIL PAN |
| 37 |
0985106 |
OIL PUMP ASSY |
| 38 |
0913011 |
GASKET, Pick-Up tube |
| 39 |
0914129 |
SCREW, Oil pan |
| 40 |
0914130 |
BOLT, Oil pump to block |
| 41 |
0914126 |
OIL PICKUP TUBE |
| 42 |
0914128 |
SCREW, Oil pan |
| 43 |
0914129 |
SCREW, Oil pan |
| 44 |
0913488 |
HOSE, Gimbal to oil cooler |
| 45 |
0914125 |
SHAFT, Oil pump |
| 46 |
3853005 |
RETAINER, Oil pump shaft This part replaces 0914127. |
| 47 |
0320266 |
LOCKNUT, Cooler bracket |
| 48 |
3852609 |
RETAINER, Oil drain This part replaces 0912734. |
| 50 |
0912783 |
WASHER, Fitting |
| 51 |
0913364 |
FITTING, Oil drain |
